Description

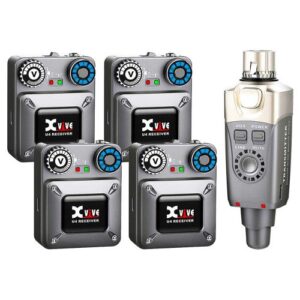

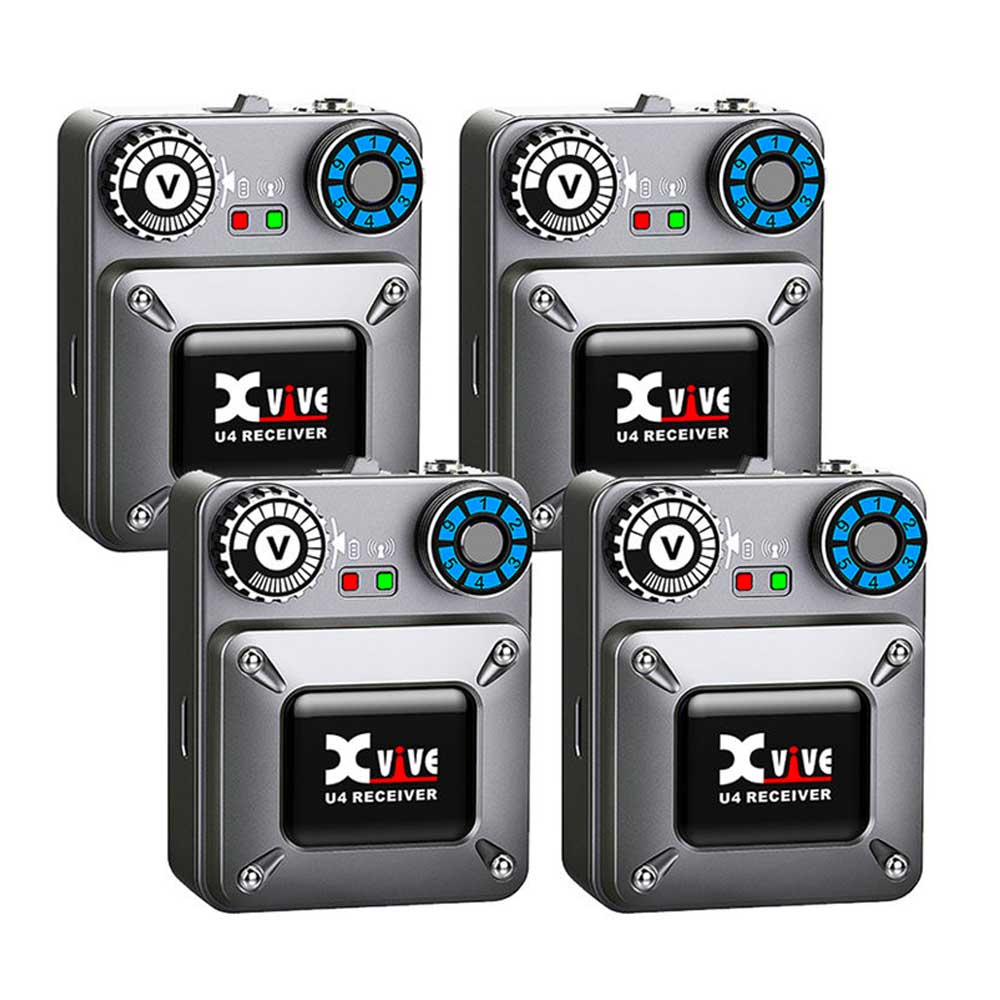

The Xvive U4R2 is a wireless in-ear monitoring system with 1 x transmitter and 4 x receivers that gives you the freedom you need while on stage. Information and specifications of the components are below.

The Xvive U4 is an in-ear monitoring system that gives you the freedom you need while on stage. Allowing you to connect a line-level monitor mix from a return on your stage snake to your U4 wireless transmitter. Then, connect your headphones or in-ear monitors to the compact receiver. A large volume knob makes it easy to make adjustments without having to look down.  5 hours of battery life, 30 metres of wireless range, and less than 5ms latency make the U4 in-ear-monitoring system perfect for single-channel applications in small venues. This system contains a wireless plug-on transmitter and a wireless bodypack receiver; you can easily monitor your audio performance while having freedom from annoying wires! Featuring 6 selectable channels, the U4 allows you to create up to 6 individual discrete mixes. Each component is housed in a durable metal chassis for dependability when you need it most. The plug-on transmitter offers an XLR input for line-level signals; while the bodypack receiver sports a 3.5mm TRS mini headphone jack. You can use one transmitter to send the signal to as many receivers as needed simultaneously on stage.

FEATURES
Range: ≥70 feet line of sight outdoors
Latency:  <6ms
Frequency Response:  20—20KHz, +1dB/_3dB
THD+ Noise:  <0.05% (1KHz@-10dbFS)
Dynamic Range: >103dB A weighted
Operating Band:  2.4GHz ISM Worldwide
Sample Range:  24 bit/48KHz uncompressed digital Transmission

SPECIFICATIONS
Frequency Range: 2.4 GHz
Stereo/Mono: Mono
Included Transmitter: U4T
Included Receiver: U4R
Auto Frequency Scan: Yes
Operating Range: 90 ft. Line-of-sight

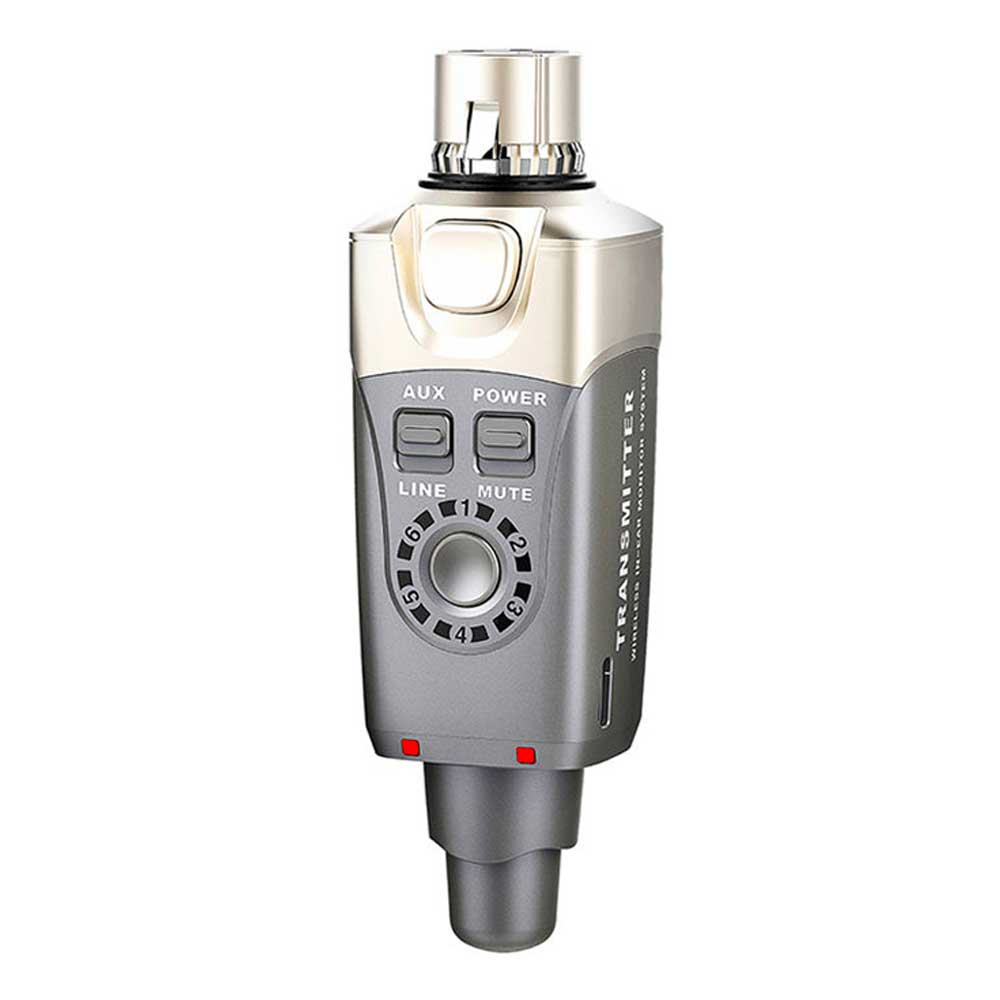

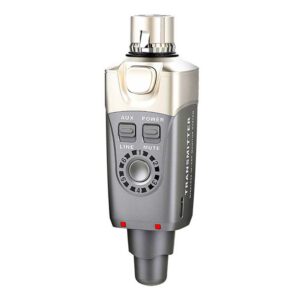

Transmitter Inputs: 1 x XLR
Transmitter Power: Rechargeable Lithium-ion
Transmitter Dimensions: 48 x 27 x 27mm
Receiver Output Jack: 1 x 3,5mm
Receiver Power: Rechargeable Lithium-ion
Manufacturer Part Number: U4
