Description

Wharfedale 720W RMS Blue Tooth Active Speaker with DSP

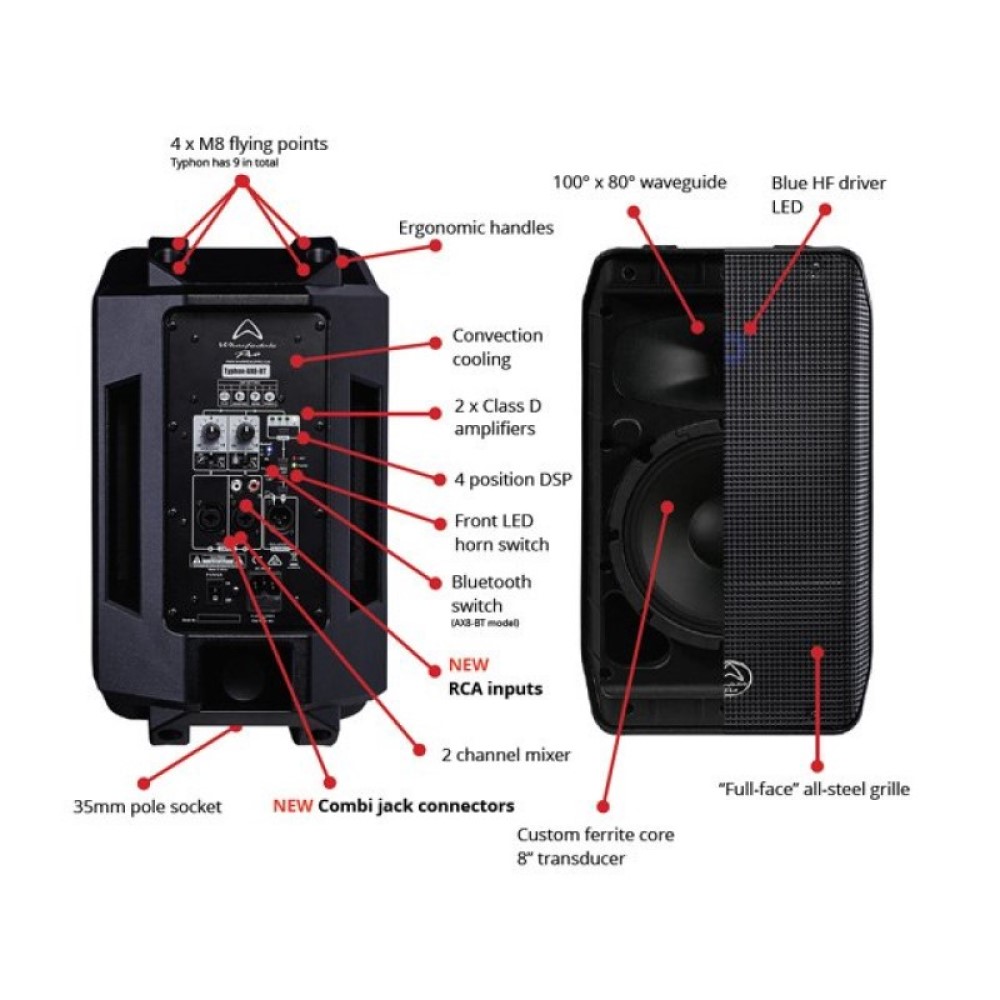

Using the same electronics as the TyphonAX12” models, the new 8” TyphonsAX8 deliver huge power from a small durable plastic cabinet. Bi-amplified power brings 720w Continuous output power (1440w Peak). This is unprecedented in such a small compact loudspeaker. In addition, 4-position DSP allows the timbre to be adjusted to taste.

Bluetooth connection provides TWS stereo link mode allowing for complete, wire free high powered stereo audio to cover the audience.

As with the 12” Typhons, the new 8” models use custom Wharfedale Pro drivers. The acclaimed IRIS X HF compression driver features a 1.75” voice coil, while the LF driver features a 2.5” coil with flat coil windings for enhanced cooling. The cone material chosen is also moisture rejecting, allowing a TyphonAX8 to be used in extreme conditions.

Specifications:
Frequency Response (+/-3dB: 65Hz-20kHz
Frequency Range (-10 dB): 60Hz-20kHz
Maximum SPL (peak@1m): 127dB
Sensitivity @ 1W / 1m): 96dBAmplifier Design: 2 x Class D
Power Rating: 1440W Peak (1200W LF +
240W HF), 720W Continuous (600W LF + 120W HF)
Input A – type: Balanced/RCA/Bluetooth(aptX,with link Stereo)
Input Sensitivity: 775mV (0dBu)
Maximum Input Level: 4V

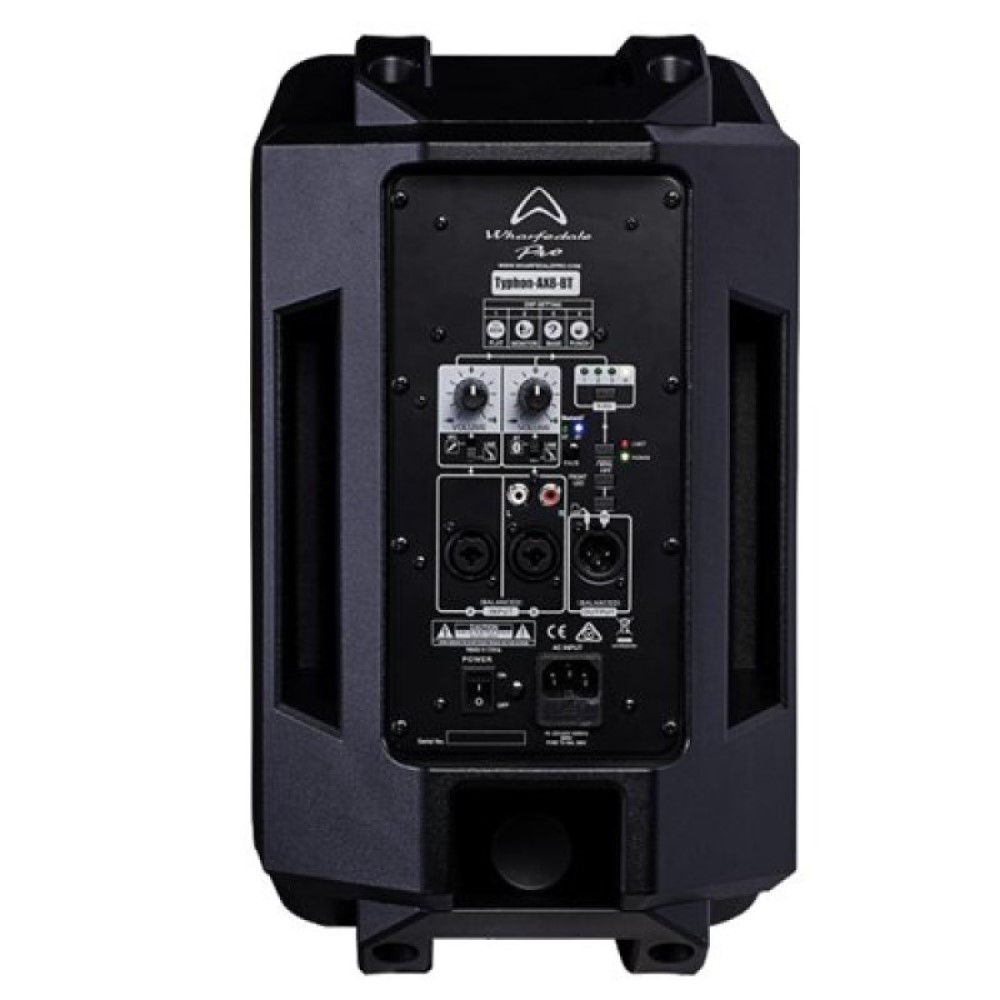

Input Connector: 2 x XLR, 2 x 6.3mm, 2 x RCA (Line/MIC)
Line Output Connector: XLR Loop Gain: 0dB
Power Supply: 220~240VAC/100~120VAC 50/60Hz
Rigging / Bracket / Mounting Options: 8 x M6 (1 x M8 Back) threaded inserts
Pole-mount receptacle with lock screw
Optional WPB-2 wall-mount bracket
Height: 509mm
Width Front: 326mm
Width Rear: 326mm
Depth: 310mm
Net Weight: 10.7kg
Gross Weight: 12.7kg
Warranty: 3 Years
