Description

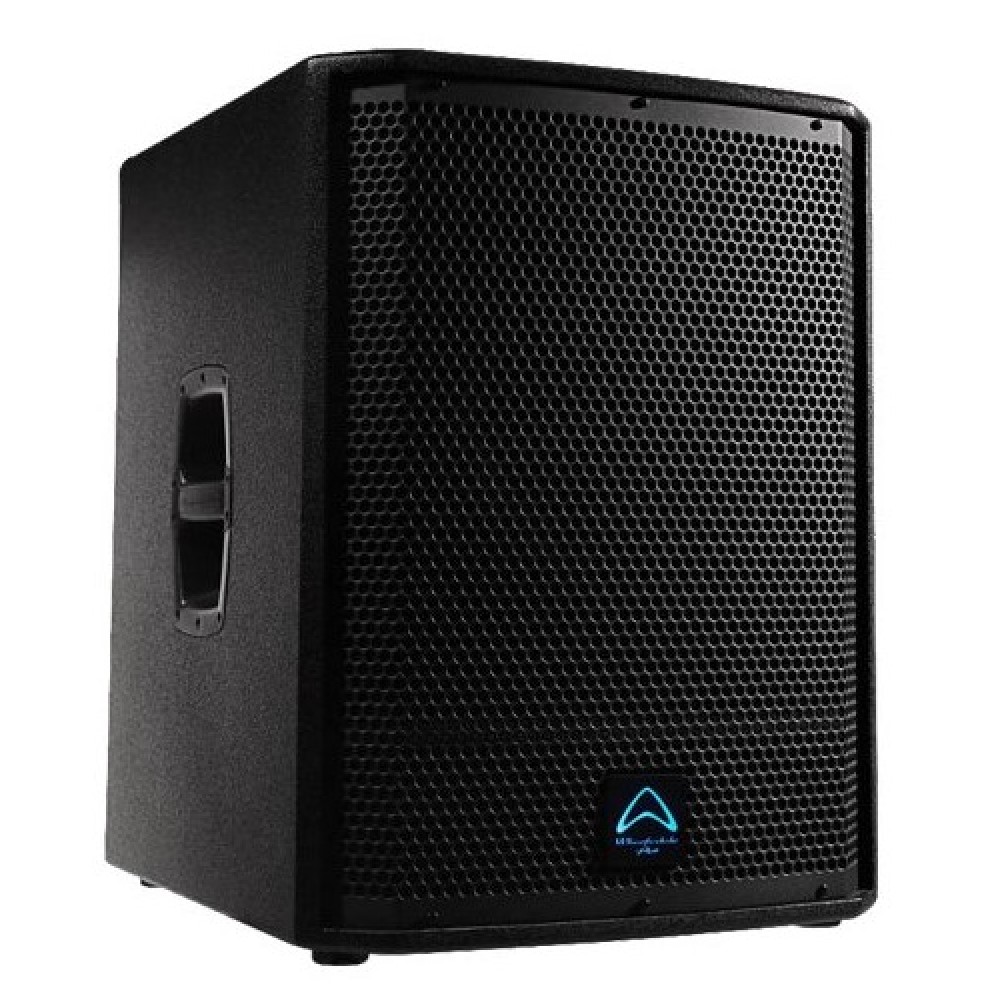

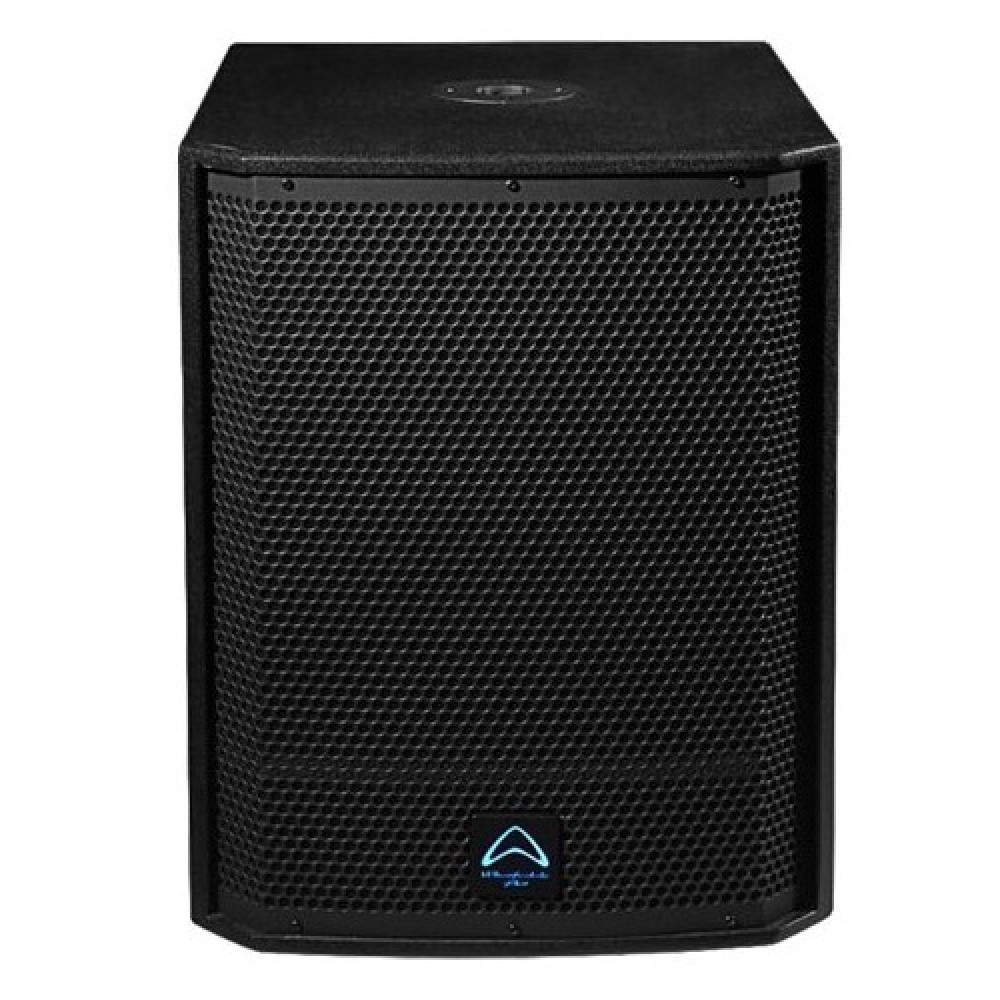

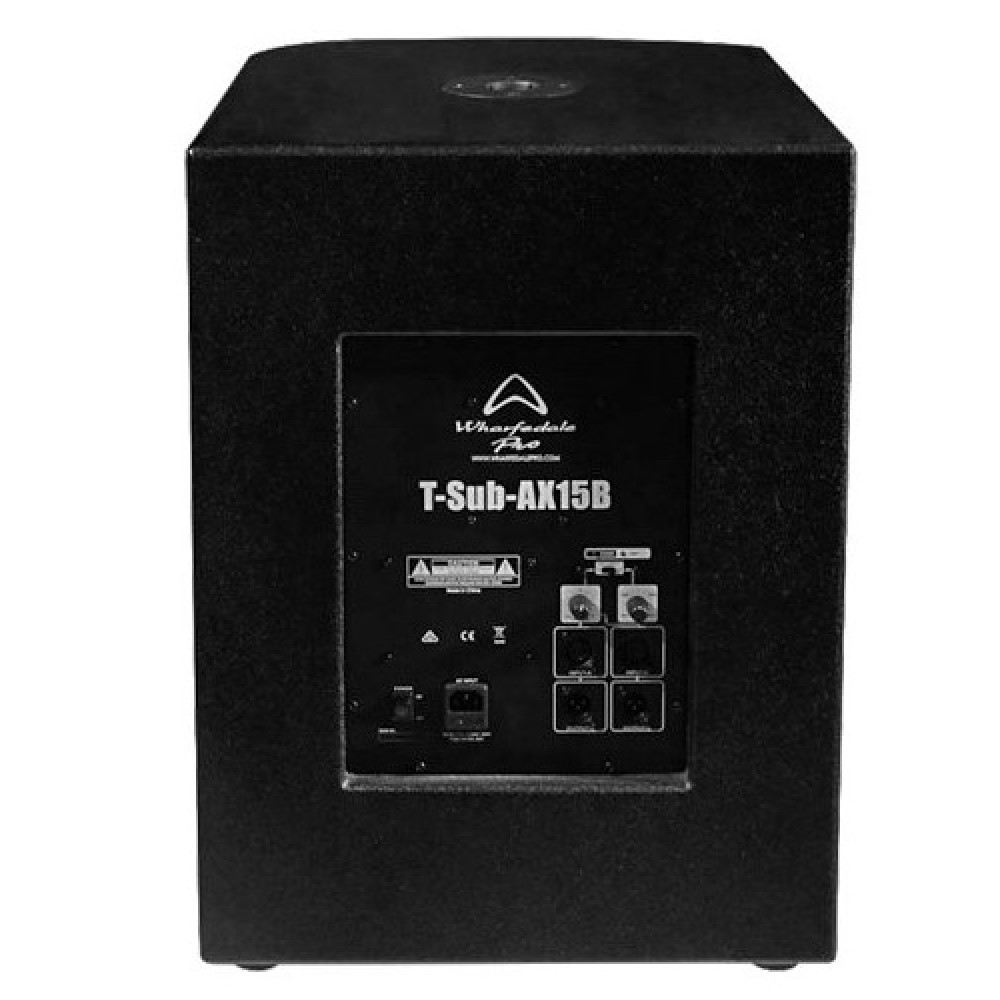

Wharfedale TSUBAX15B  Pro 15″ Sub 700 Watts RMS

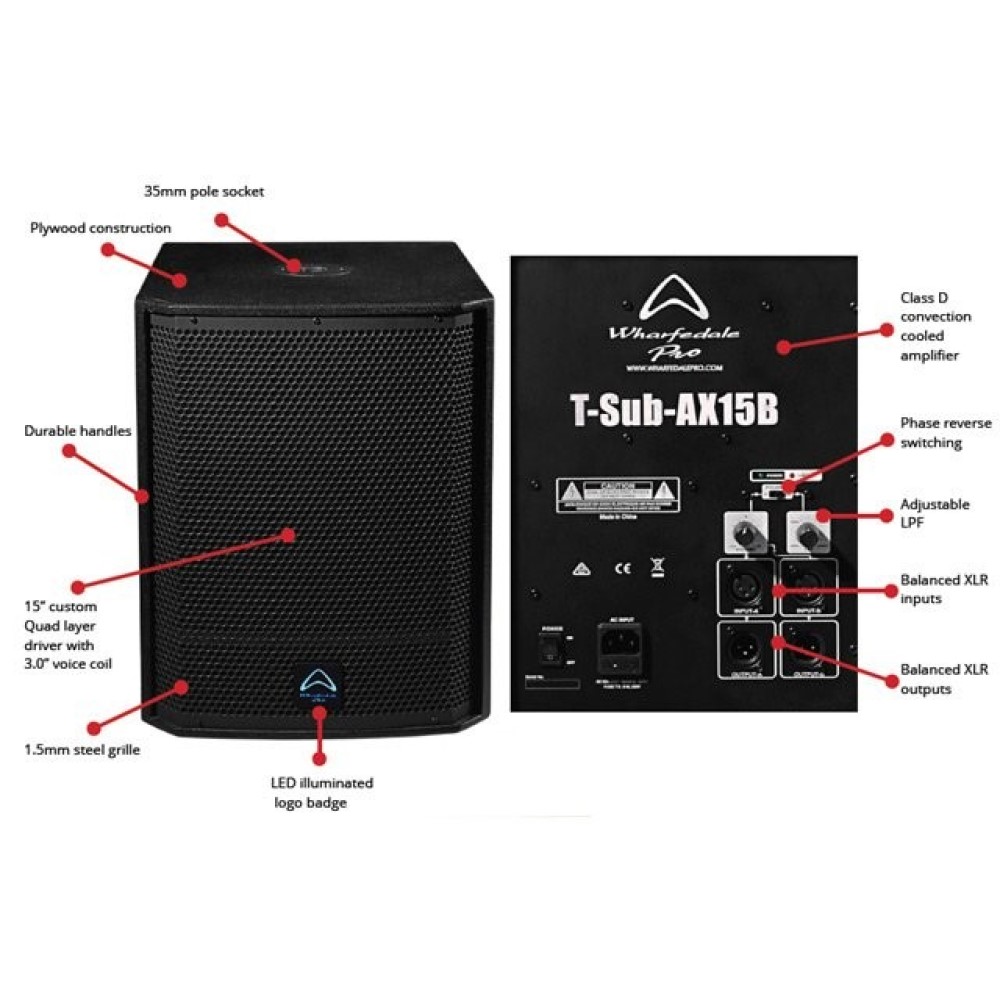

The TSubAX15B is a 700 watt continuous, 1400w peak 15” active subwoofer. The internal Class D amplifier delivers huge output power into the custom quad-layer 15” Wharfedale Pro LF driver to produce extreme subs and low-end pressure into any system. Built for big bass, the plywood constructed cabinet is rock solid and is protected in durable Rhino Rock paint. You’ll not only ‘feel’ the TSubAX15B, but you will also see it! A new illuminated WP logo badge subtly glows and adds to the overall on-stage “power” of the new T-Sub. TSubAX15B is the perfect companion for a Typhon or Titan active loudspeaker. It also has 75% more power than the current TitanSubA15 MKII.

Specifications:
Frequency Response (+/-3dB): 45Hz-200Hz
Sensitivity @ 1W / 1m): 97dB
Maximum SPL (peak@1m): 129dB
Impedance: 4Ω
Low-Frequency Power Amplifier (Class D): 700w Continuous / 1400w Peak
Crossover Frequency: LPF 80-200Hz (adjustable)
Input Impedance: 47KΩ Balanced
Maximum Input Level: 5V
Input Sensitivity: -10dB
Input Connectors: Female XLR
Line Output Connector: Male XLR
Phase Switch Selection: 0° / 180°
Enclosure Material: 15mm Plywood
Colour: Black
Grille: 1.5mm steel
Pole Mount(Top): 35mm
Dimensions (Unpacked):
Height: 591mm
Width: 454mm
Depth: 523.9mm
Dimensions (packed):
Height: 689mm
Width: 544mm
Depth: 610mm
Net Weight: 25.7kg
Gross Weight: 29.5kg

Warranty: 3 years
