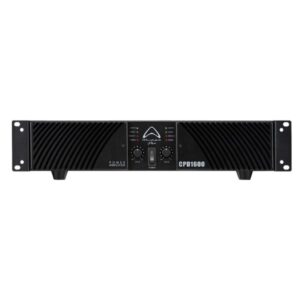

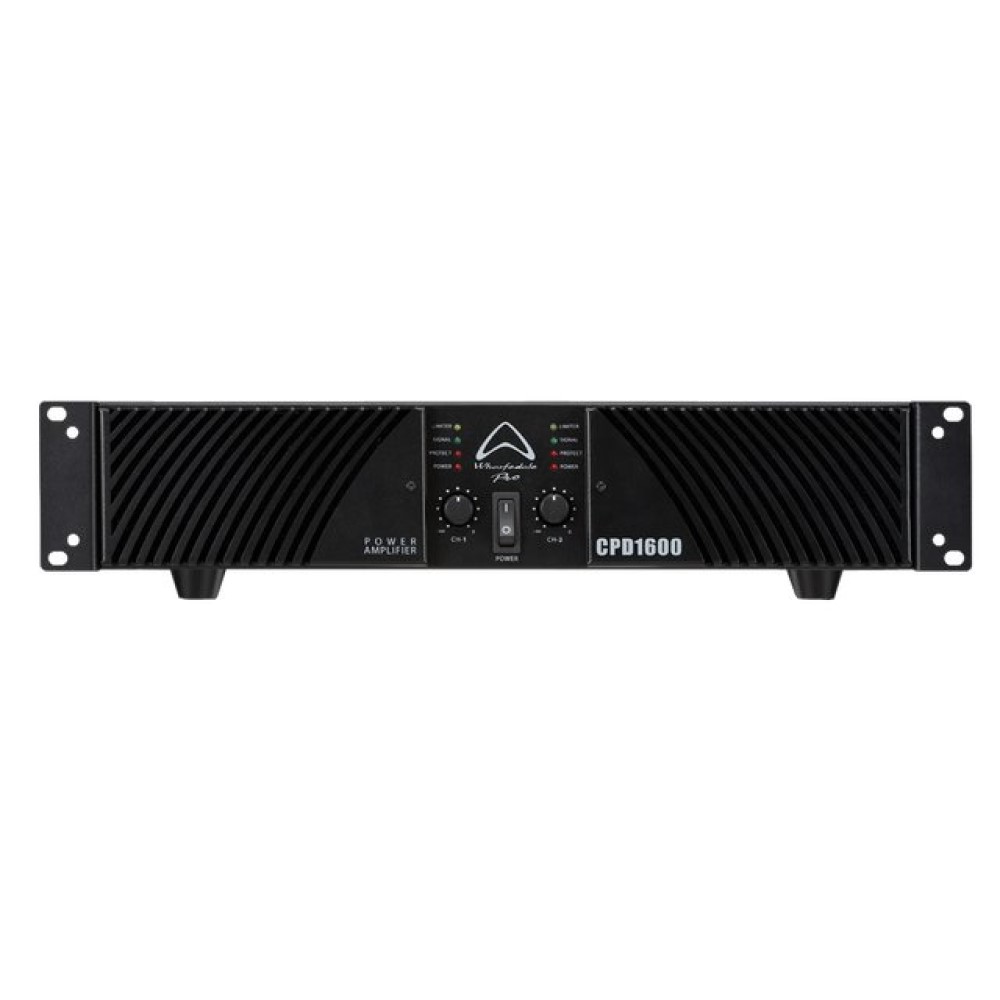

Wharfedale CPD1600 Amplifier – 400W RMS @ 8ohm, 650W @ 4ohm per side

The CPD range of Wharfedale amplifiers are built for a multitude of sound system formations including mobile use, touring, rental and installation. Built-in protection including thermal, overcurrent, DC and output short circuit protection ensures speakers will not be damaged from faults. The continuously variable speed fan keeps CPD amplifiers at their optimum operating temperature ensuring there will be no overheating. Removable front covers provide for easy cleaning while status and clip LEDs keep the operator in the know.

Built into a 2 rack unit, rack mountable quality steel chassis, CPD amplifiers are manufactured to strict quality assurances making them an amplifier you can trust from price to performance.

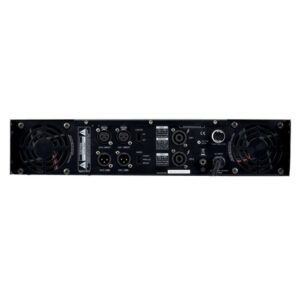

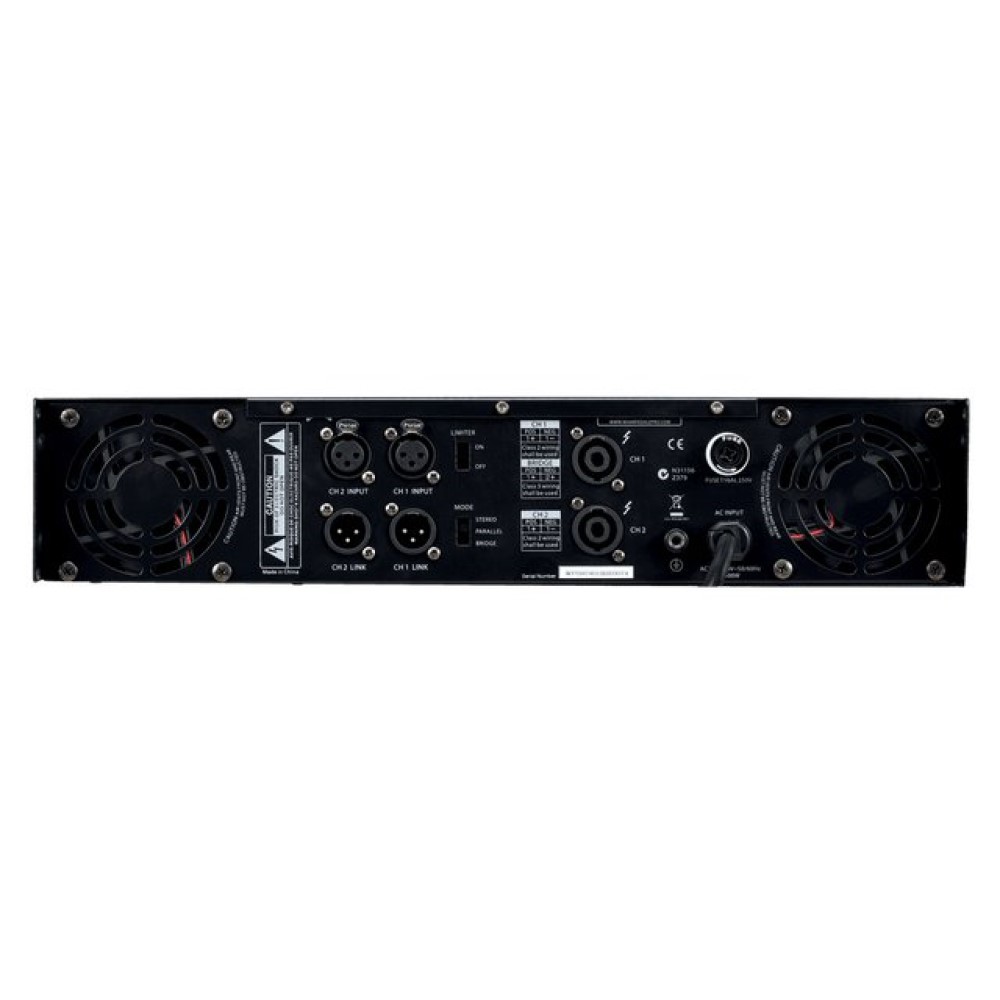

Signal inputs and signal pass through connections are 3 pin XLR while speaker connections are speakon sockets. CPD amplifiers can operate in stereo, bridge or parallel modes.

SPECIFICATIONS:
Stereo output power 2x400w RMS at 8 ohms; 2x620w RMS at 4 oms.
Bridged mono output power 1200w RMS at 8 ohms; 1600w RMS at 4 ohms.
Input 2 x 3 pin XLR
Signal pass through output 2 x 3 pin XLR
Speaker output 2 x speakon
Frequency response 20Hz – 30kHz
Class AB topology
Sensitivity 0dBu (0.775Vrms)
Input impedance 20k ohms
Maximum input level 22dBu (9,7Vrms)
Slew rate >40V / us
Cross talk <-70dB Signal to noise ratio >100dB
Cooling by variable speed fan
Protection: Switchable limiter, thermal protect, overcurrent protect, output DC protect, output short protect, power on/off mute
4 segment LED display
Dimensions 88 x 483 x 322mm
Weight: 19kg
