Description

Wharfedale Wireless UHF Microphone with 320 selectable channels.
Made specifically for solo vocal performances, the Aeroline Vocal Wireless mic system delivers perfect vocal clarity over long distances, in a simple to use package.

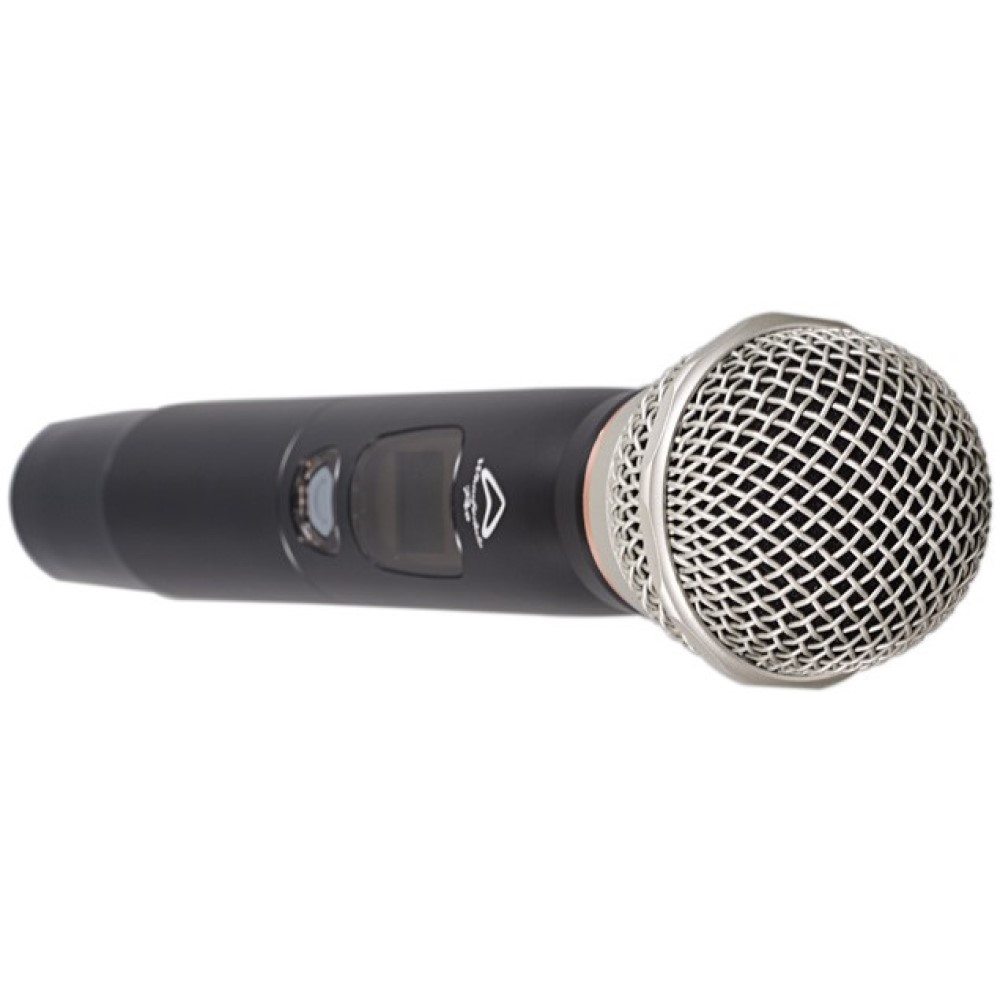

The specially designed microphone capsule captures the detail and warmth of the voice, ensuring that the system gets the best possible quality audio input.

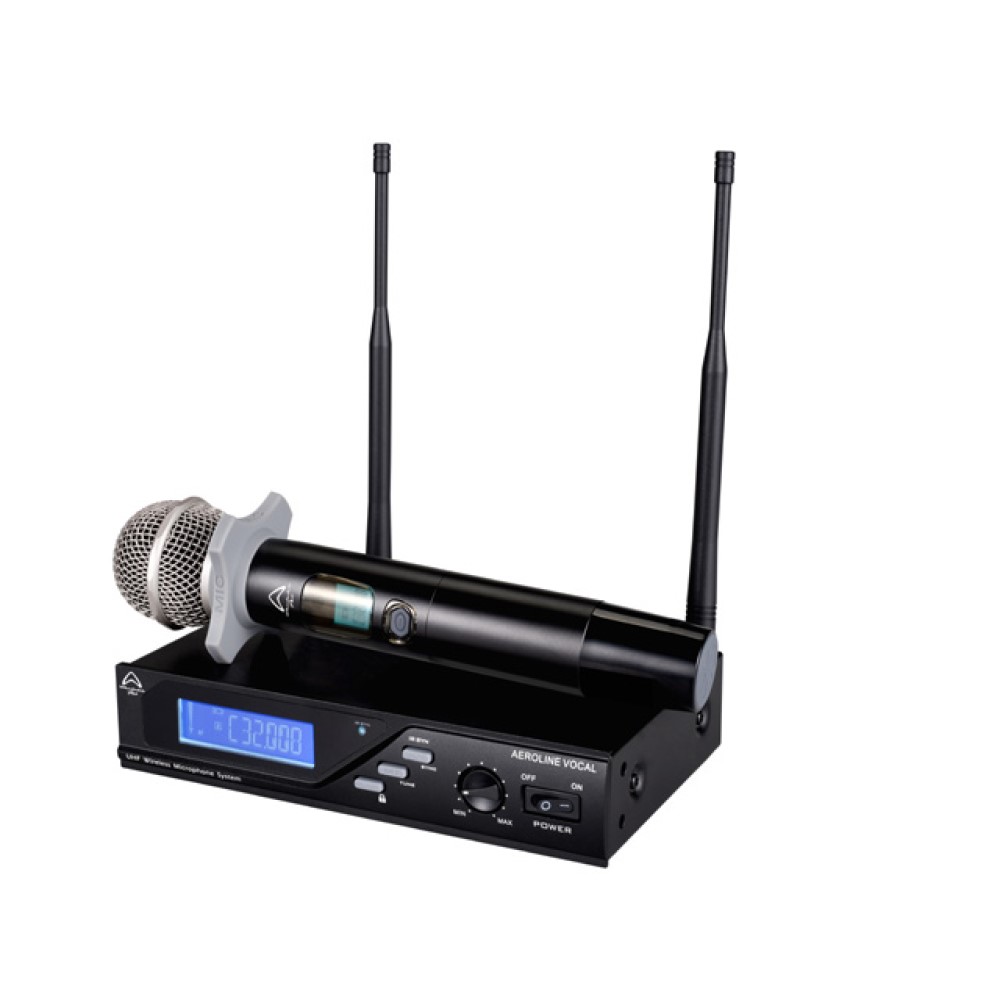

This signal is then transmitted to the ‘small footprint’ receiver with dual antennae using True Diversity technology, which results in a system which works over long distances without drop-outs

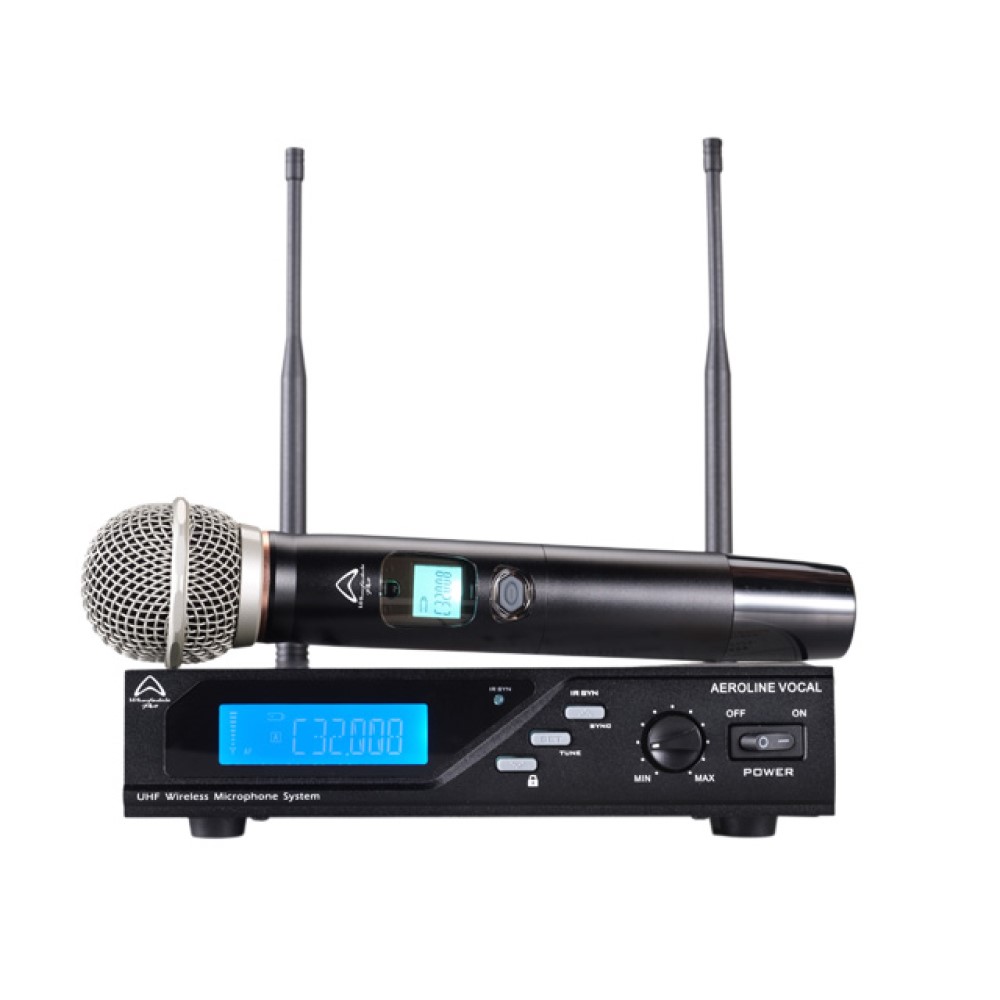

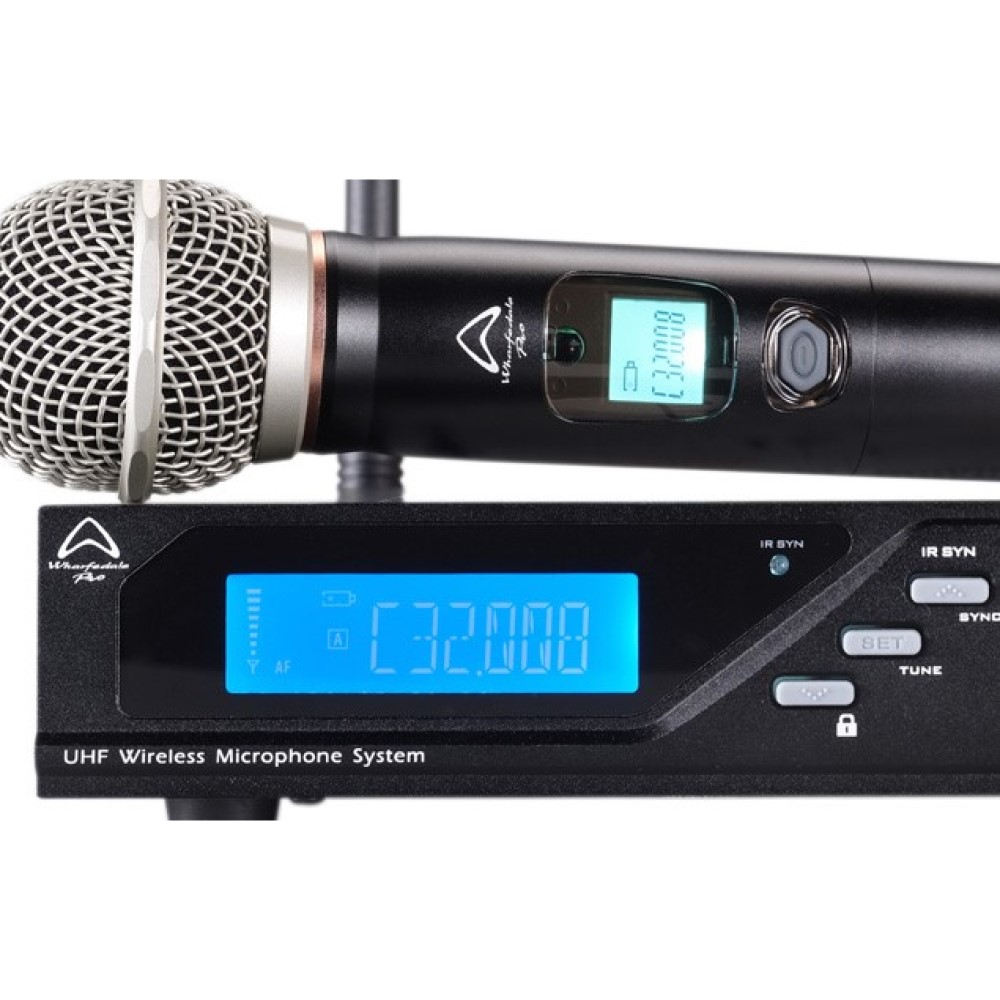

Unique to products at this price point are the backlit LCD displays on both the mic and the receiver. This makes setup and control simple.
With its high quality capsule, superb long range performance and easy operation, Aeroline Vocal delivers everything the vocalist or presenter needs.

FEATURES:
Working frequency: 598-694MHz
Modulation mode: UHF
Channels: 324 @ 598-694MHz
Operating distance: about 80m (line of sight)
RF generator mode: PLL Frequency Synthesizer
RF bandwidth: 96MHz
Audio frequency response: 50Hz-16KHz
SNR: > 90dB (A weighted)
THD: <0.5% / 1KHz (300mV output )

SPECIFICATIONS: Transmitter
Dynamic range: > 90dB
Output Power: 10mW
Display: LCD
Current consumption: <180mA
Power supply: 2 x AA or AA rechargeable batteries
Transducer pickup head: Moving coil
Pickup mode: Super cardioid
Sensitivity: <- 55dB ± 3dB (0dB = 1V / Par at 1KHz)
Maximum SPL: > 105dB SPL

SPECIFICATIONS:  Receiver
Sensitivity: -95dBm
harmonic distortion: <0. 5% / 1KHz (300mV output)
Display: LCD
Audio outputs: Balanced XLR plus 1/4” jack
Power supply: 12v 500ma 6w
