Description

*Order in item or contact us for availability (07 3274 2530) – stock levels vary depending if supply is available*

Oversized Items

*Shipping: due to the item’s size it cannot be shipped with AusPost, please contact us for a quote on freight cost

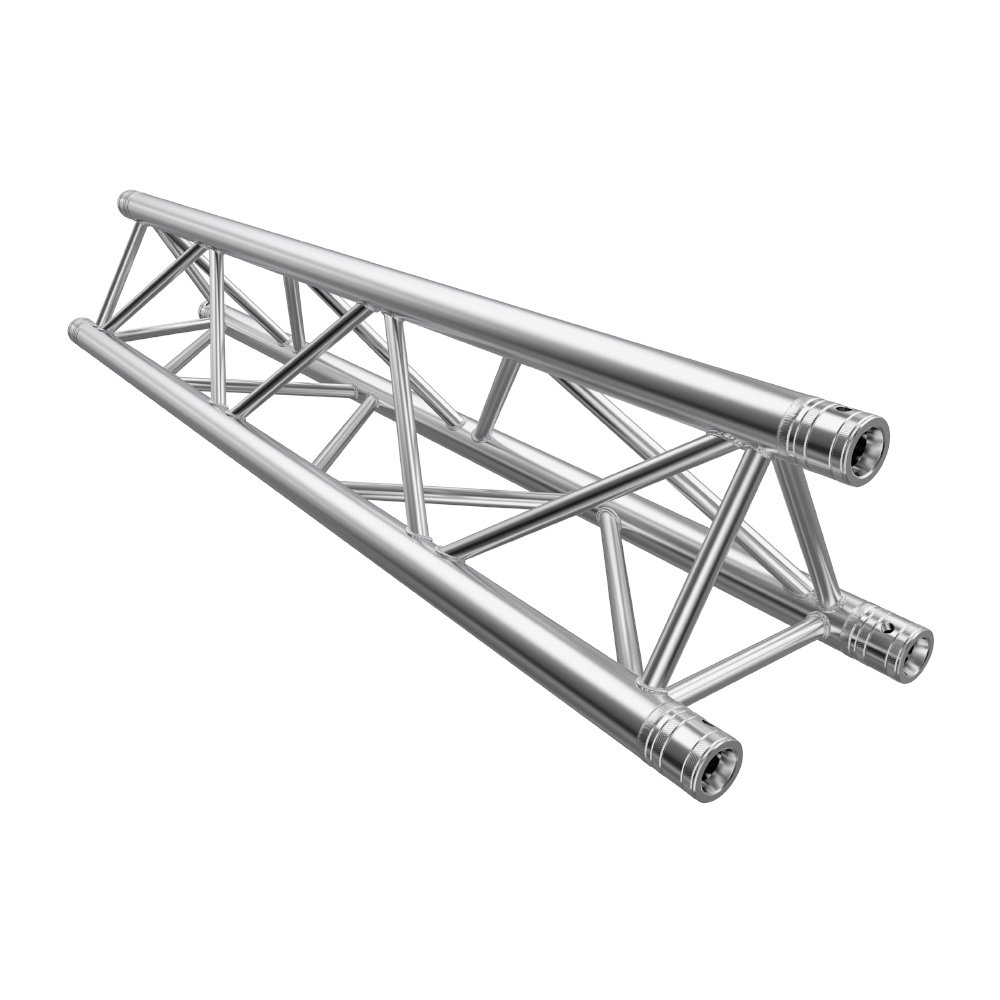

F33 Triangular Truss is a medium-duty truss with an outside dimension of 290mm and 50mmø chords. With good strength and weight vs cost rations, F33 Truss offers significant bang for buck.

Ideally found in houses of worship, schools, clubs, theatres, pubs and clubs, conference centres, museums, exhibitions and retail centres. Application types include arches, entry structures, display stands, signage and banner frames, LED panel frames, suspend lighting and AV equipment, projection screen frames, suspend drapes, etc.

Versatility is assured by the range of straight lengths, junctions and radials on hand and, of course, all the 50mmø accessories at your fingertips.

Details:

• 1.5 metre length

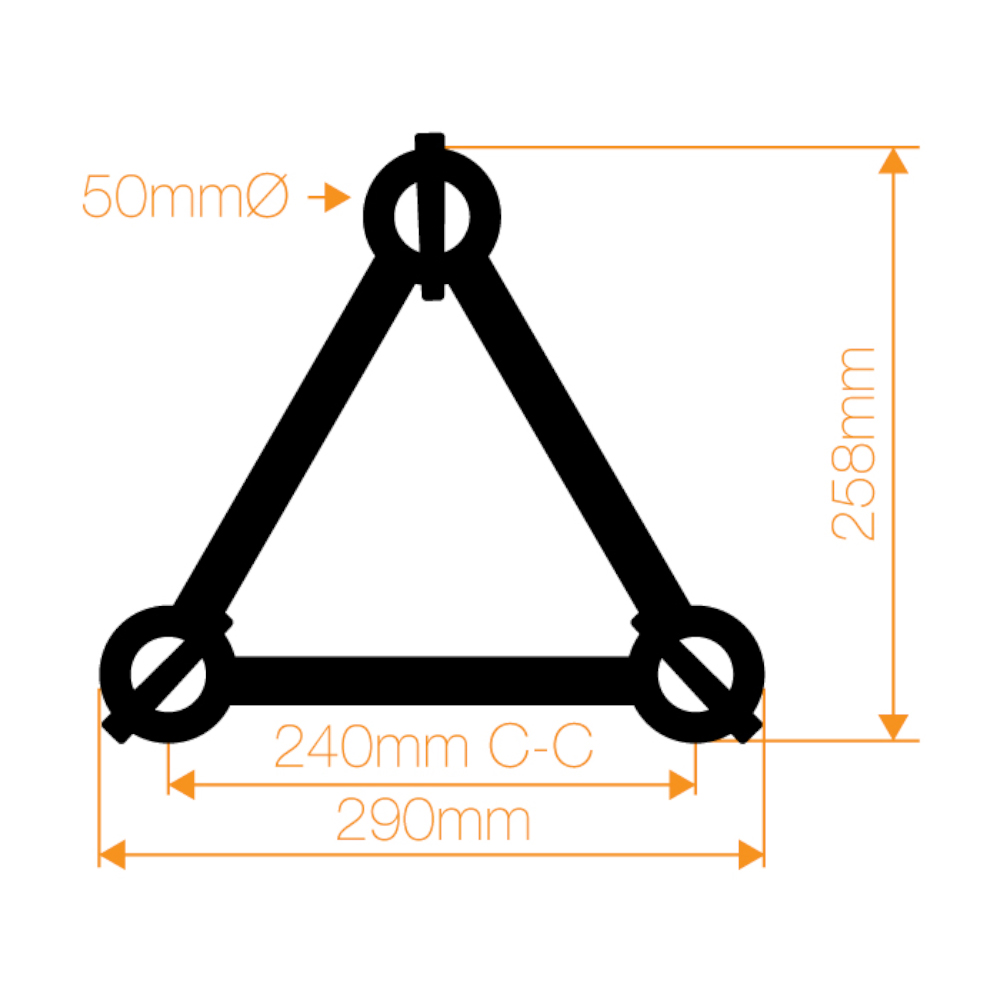

• 290mm outside to outside of bars
• 240mm to centers of bars
• Main tube 50mm outside diameter and 3mm thick walls
• Support tubes 20mm outside diameter and 2mm thick walls.
• Matches F/33 Truss
• Comes with 3 conical joiners
