Description

Samson takes the worry out of wireless with the Concert 288 Pro Combo Wireless System. Offering easy setup, flawless operation and premium sound. It?s the ideal high-performance UHF wireless solution for performances, presentations, education, house of worship applications and more where two users are needed.
The dual-channel Concert 288 Pro Combo allows for up to 24 systems (48 performers) to operate simultaneously (region dependent). The Concert 288 Pro Combo gives both performers an impressive 300′ range of wireless operation between the transmitters and receiver, making the system ideal for large stages and crowd participation. To ensure interference-free performance, the Concert 288 Pro Combo features a true diversity design. If a drop out does occur, the receiver?s tone key triggers an Auto Mute function to eliminate any background noise until the signal is restored.

With Samson?s Concert 288 Pro Combo Wireless System, advanced technology and total versatility combine to provide high-quality wireless performance wherever singers, presenters, educators and others need it.

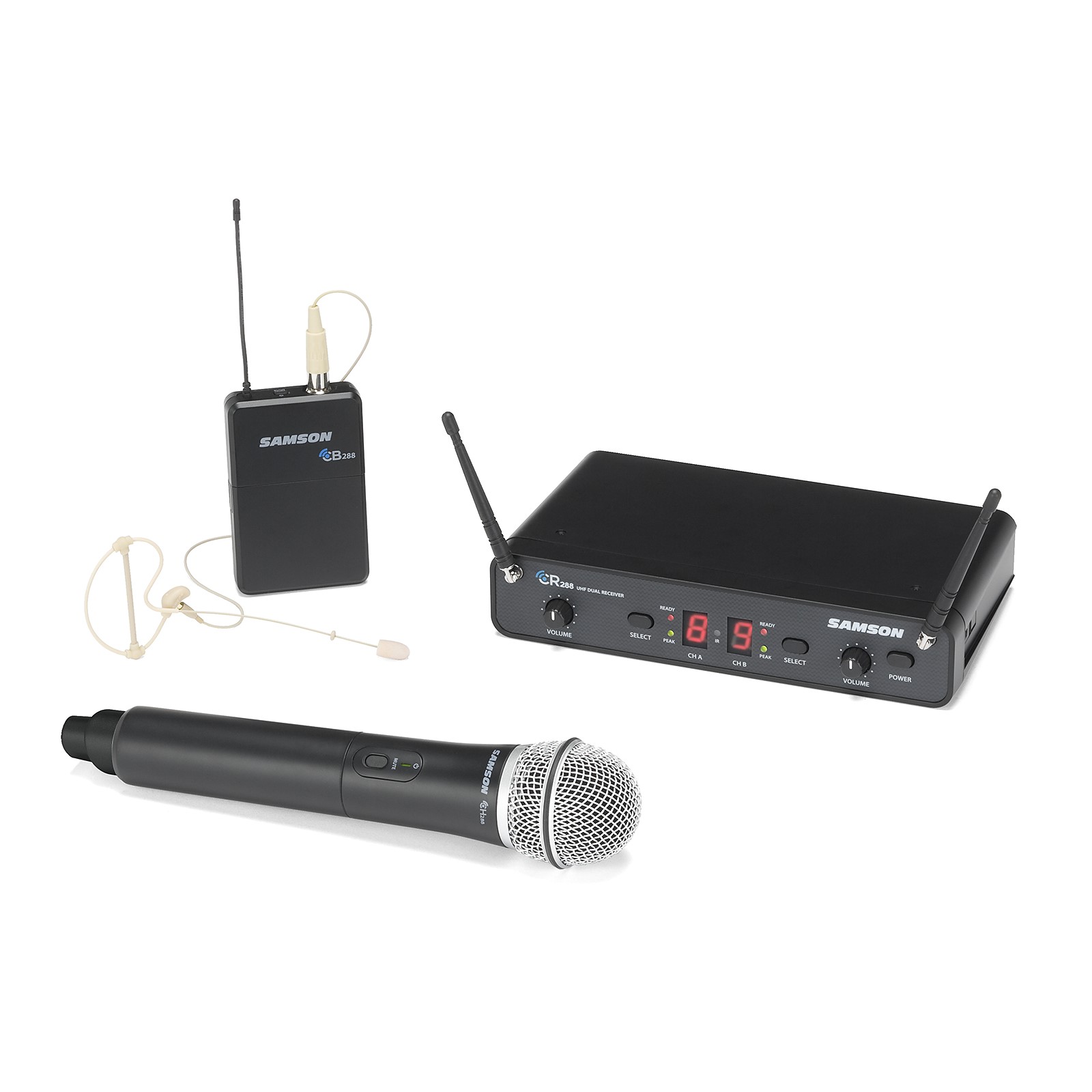

Concert 288 Pro Combo System

Dual-channel, high-performance UHF wireless system
1/4″ audio cable, AC adapter and rackmount kit included
CR288 Wireless Receiver

Multiple frequency options for interference-free performance in any environment
Up to 24 systems can be operated simultaneously (region dependent)
Separate Volume controls for each wireless signal
Dual balanced XLR outputs for routing signals to two separate mixer channels
1/4″ unbalanced mix output to combine signals to one output channel

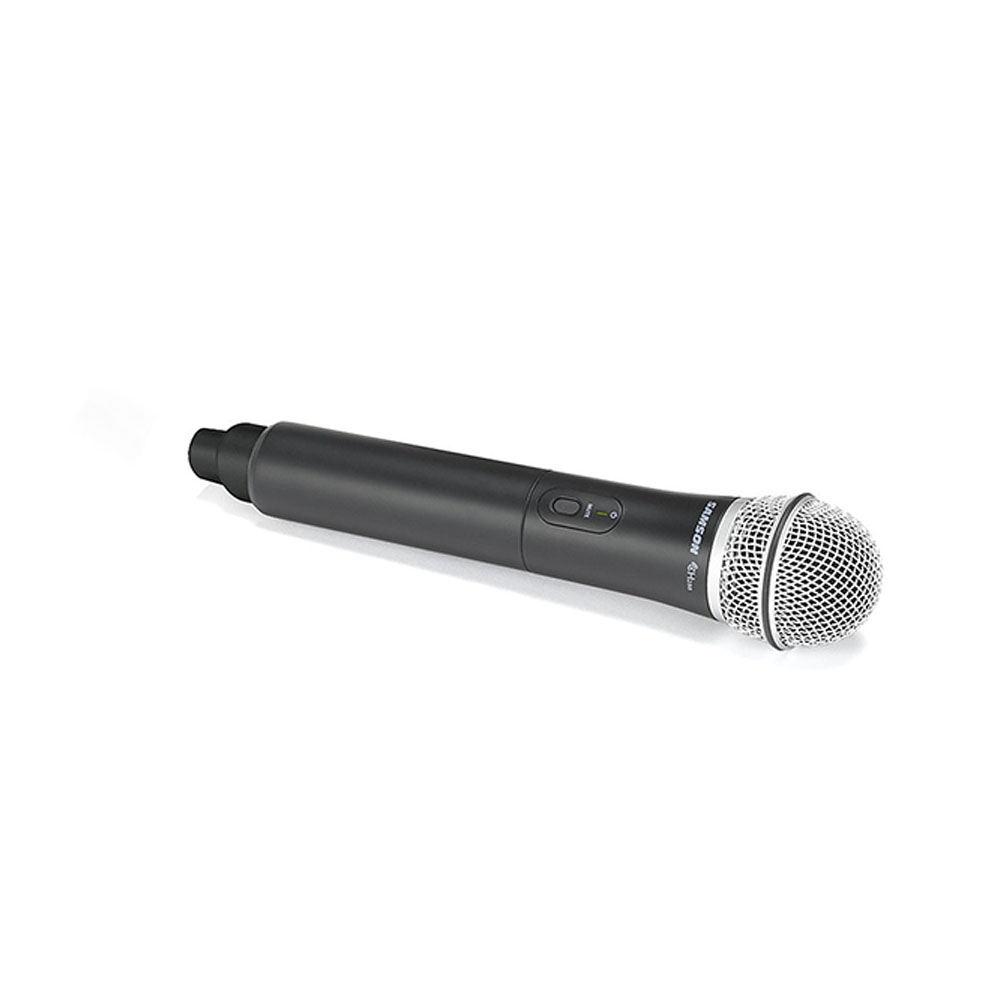

CH288 Handheld Transmitter

Q6 Dynamic Microphone capsules
Offers up to eight hours of battery life using two AA batteries
300′ operating range

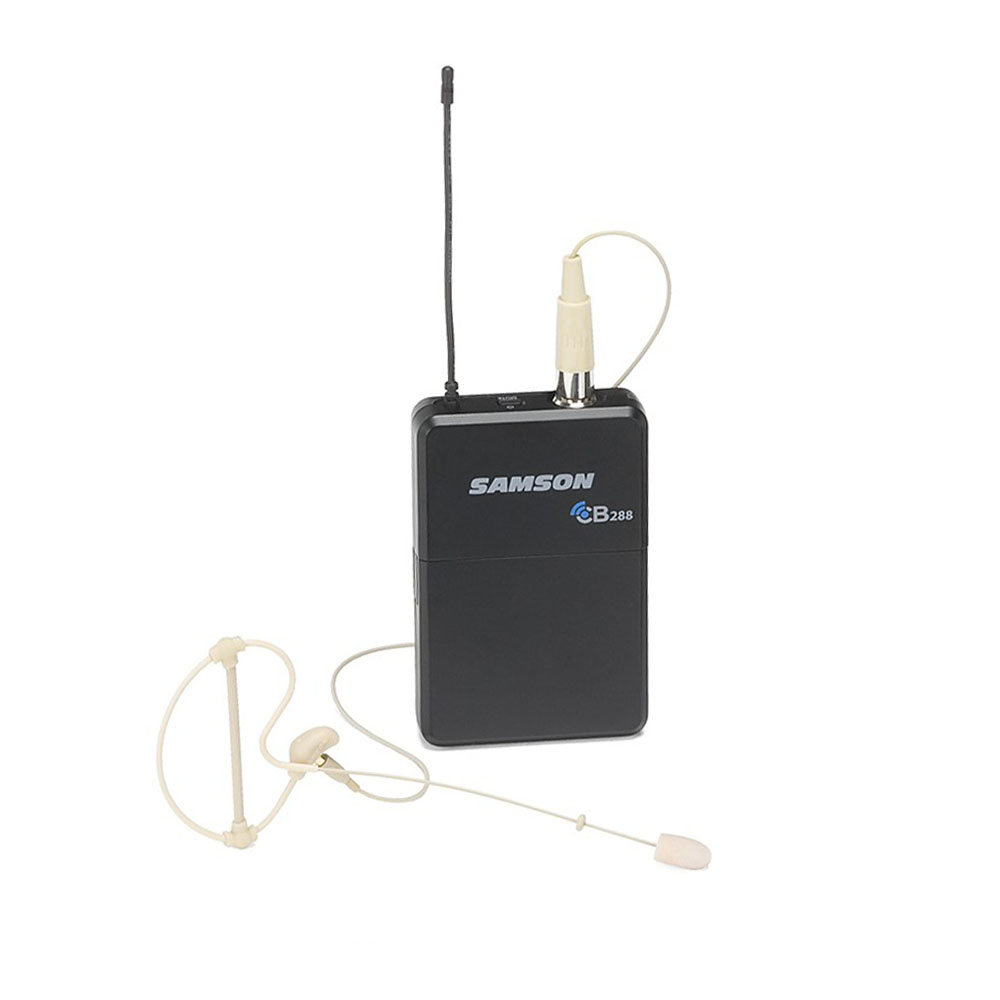

CB288 Beltpack Transmitter

SE10 Earset Microphone with Miniature Condenser Capsule, moisture-resistant design and locking connector
Offers up to eight hours of battery life using two AA batteries
300′ operating range

Specifications
Microphone Type: Combo (handheld & headset)

Operating Frequency: CHA: 518 ? 542 MHz
CHB: 542 ? 566 MHz
RF Transmission Power: 10mW (handheld & body pack)

Transmission Range: 100m Line of Sight (based on optimal conditions)

Presets: 16 Banks per Channel

Frequency response: 50 Hz ? 15 kHz

Sound Pressure Level: 154dB SPL (MAX)

THD: 85 dB

Dynamic Range: >100 dB A-weighted

Power Requirements:

Receiver: Power Supply 12V DC (included)
Handeld: 2x AA batteries
Body Pack: 2x AA batteries
Operating time (batteries): up to 8 hrs

Dimensions:

Receiver: 210 x 125 x 44 mm
Handheld: ? 54 x 260 mm
BodyPack: 96 x 62 x 18.5 mm
Weight: Receiver: 450 g
Handheld: 218g
BodyPack: 93g
