Description
Samson takes the worry out of wireless with the Concert 288 Presentation Wireless System. Offering easy setup, flawless operation and premium sound> It?s the ideal high-performance UHF wireless solution for a variety of business, house of worship, Q&A and educational presentations where two users are needed.
The dual-channel Concert 288 Presentation allows for up to 24 systems (48 performers) to operate simultaneously (region dependent). The Concert 288 Presentation gives both performers an impressive 300′ range of wireless operation between the transmitters and receiver, making the system ideal for large stages and crowd participation. To ensure interference-free performance, the Concert 288 Presentation features a true diversity design. If a drop out does occur, the receiver?s Tone Key triggers an auto Mute function to eliminate any background noise until the signal is restored.
With Samson?s Concert 288 Presentation Wireless System, advanced technology and total versatility combine to provide high-quality wireless performance wherever business professionals, educators and others need it.

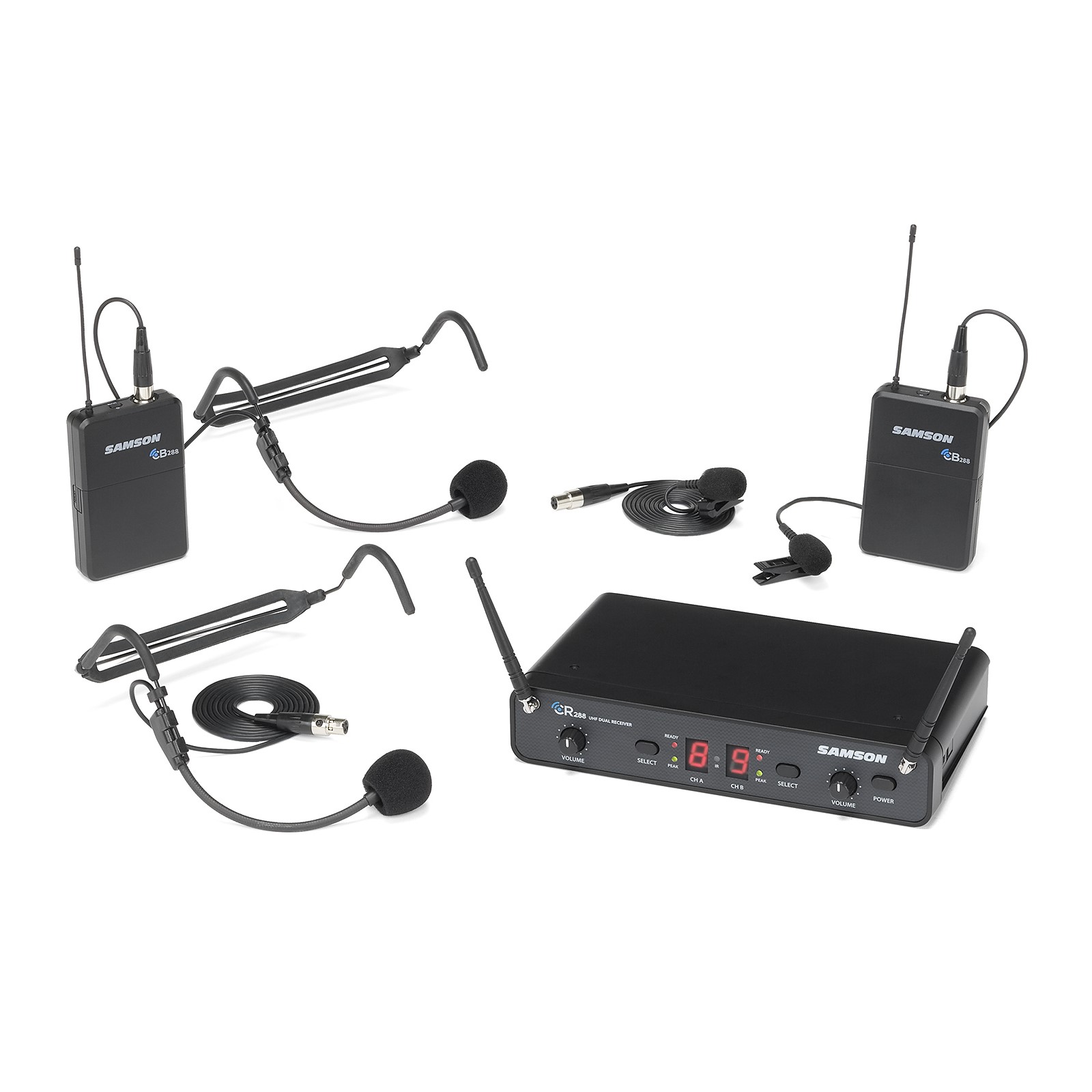

Concert 288 Presentation System
Dual-channel, high-performance UHF wireless system
1/4″ audio cable, AC adapter and rack mount kit included
CR288 Wireless Receiver
Multiple frequency options for interference-free performance in any environment
Up to 24 systems can be operated simultaneously (region dependent)
Separate Volume controls for each wireless signal
Dual balanced XLR outputs for routing signals to two separate mixer channels
1/4″ unbalanced mix output to combine signals to one output channel

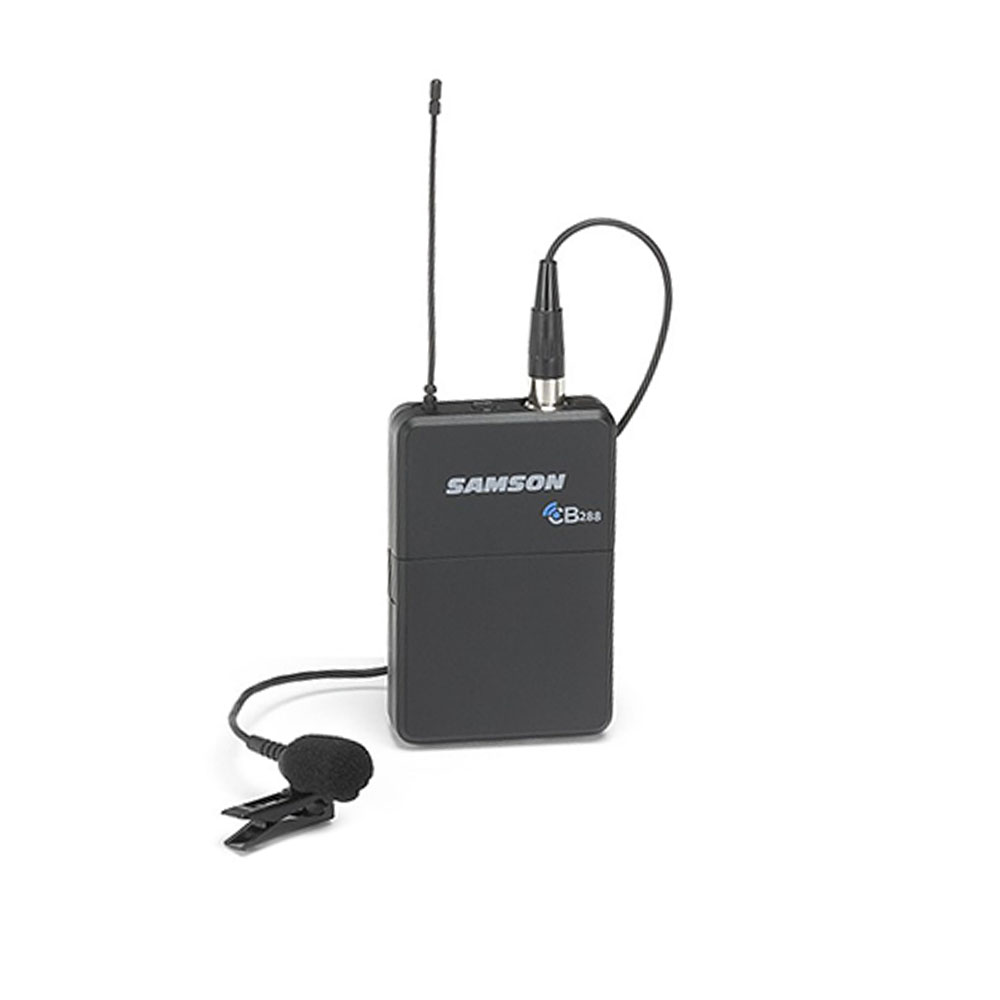

Two CB288 Beltpack Transmitters
Two LM5 Lavalier Microphones with locking connectors

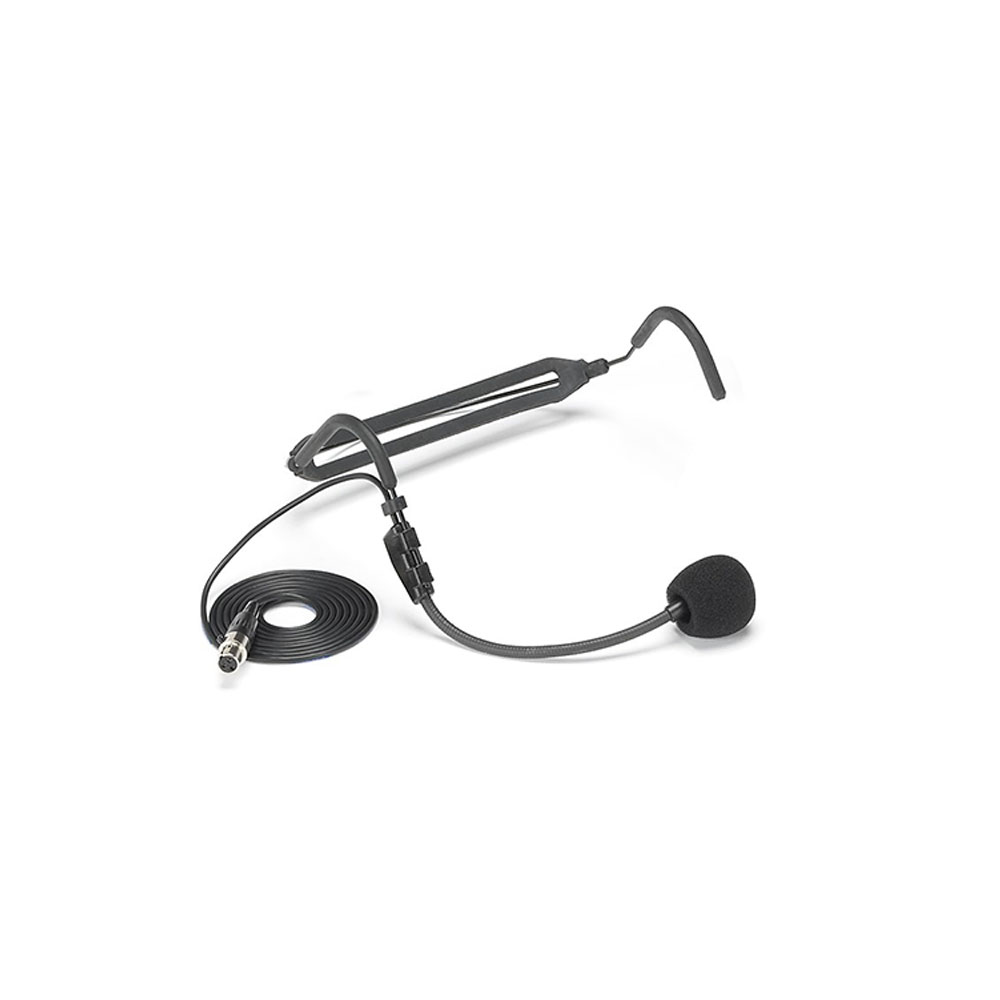

Two HS5 Headset Microphones with locking connectors
Each offers up to eight hours of battery life using two AA batteries
300′ operating range
SPECIFICATIONS
Microphone Type: Headset, Dual
Operating Frequency: CHA: 518 – 542 MHz
CHB: 542 – 566 MHz
RF Transmission Power: 10mW (body pack)
Transmission Range: 100m Line of Sight (based on optimal conditions)
Presets: 16 Banks per Channel
Frequency response: 50 Hz – 15 kHz
Sound Pressure Level: 154dB SPL (MAX)
THD: 85 dB
Dynamic Range: >100 dB A-weighted
Power Requirements:
Receiver: Power Supply 12V DC (included)
Body Pack: 2x AA batteries
Operating time (batteries): up to 8 hrs
Dimensions:
Receiver: 210 x 125 x 44 mm
BodyPack: 96 x 62 x 18.5 mm
Weight: Receiver: 450 g
BodyPack: 93g
