Description
Samson takes the worry out of wireless with the Concert 288 All-In-One Wireless System. Offering easy setup, flawless operation and premium sound. It?s the ideal high-performance UHF wireless solution for vocal performances, presentations, Q&A sessions, house of worship, educational applications and more where two users are needed.
The dual-channel Concert 288 All-In-One allows for up to 24 systems (48 performers) to operate simultaneously (region dependent). The Concert 288 All-In-One gives both performers an impressive 300′ range of wireless operation between the transmitters and receiver, making the system ideal for large stages and crowd participation. To ensure interference-free performance, the Concert 288 All-In-One features a true diversity design. If a drop out does occur, the receiver?s tone key triggers an Auto Mute function to eliminate any background noise until the signal is restored.
With Samson’s Concert 288 All-In-One Wireless System, advanced technology and total versatility combine to provide high-quality wireless performance wherever singers, presenters, educators and others need it.

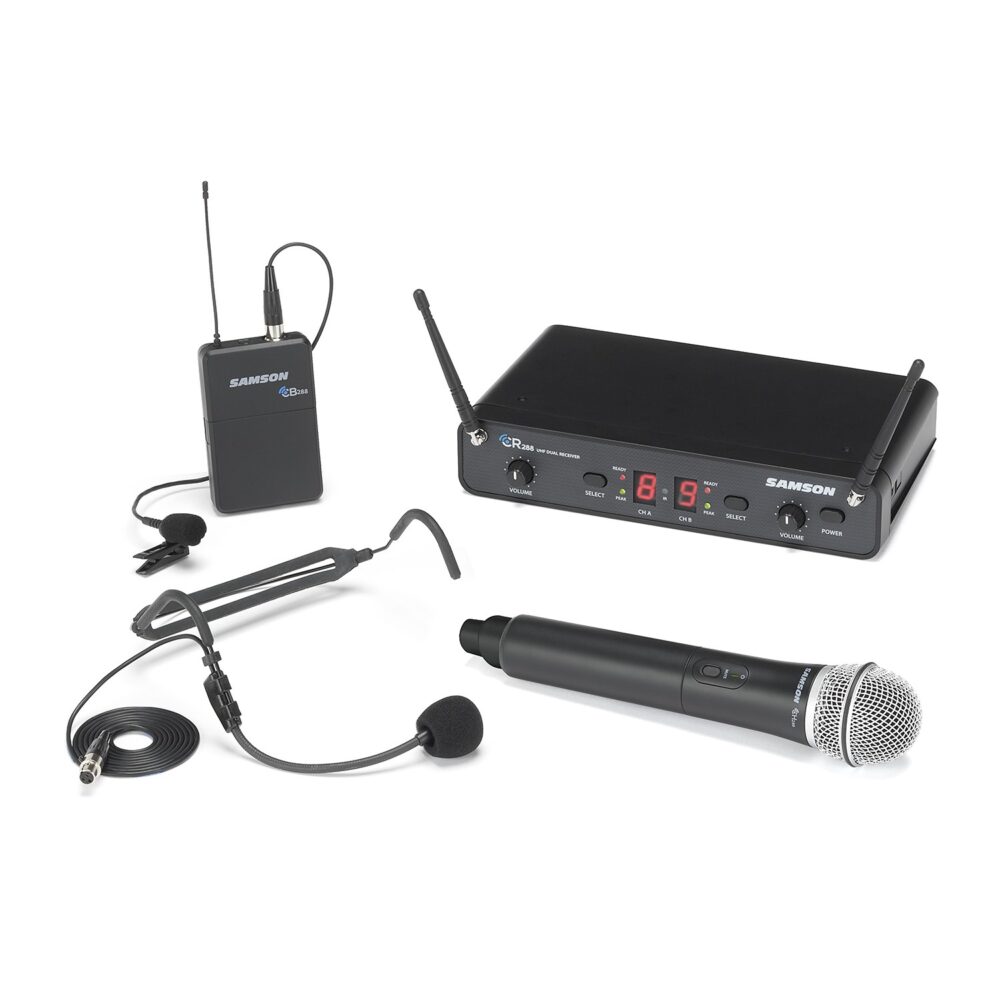

Concert 288 All-In-One System
Dual-channel, high-performance UHF wireless system
1/4″ audio cable, AC adapter and rack mount kit included
CR288 Wireless Receiver
Multiple frequency options for interference-free performance in any environment
Up to 24 systems can be operated simultaneously (region dependent)
Separate Volume controls for each wireless signal
Dual balanced XLR outputs for routing signals to two separate mixer channels
1/4″ unbalanced mix output to combine signals to one output channel
CH288 Handheld Transmitter
Q6 Dynamic Microphone capsules
Offers up to 8 hours of battery life using two AA batteries
300′ operating range
CB288 Beltpack Transmitter
LM5 Lavalier Microphone with locking connector
HS5 Headset Microphone with locking connector
Offers up to 8 hours of battery life using two AA batteries
300′ operating range
SPECIFICATIONS
Microphone Type: Combo (handheld & headset)
Operating Frequency: CHA: 518 – 542 MHz
CHB: 542 – 566 MHz
RF Transmission Power: 10mW (handheld & body pack)
Transmission Range: 100m Line of Sight (based on optimal conditions)
Presets: 16 Banks per Channel
Frequency response: 50 Hz – 15 kHz
Sound Pressure Level: 154dB SPL (MAX)
THD: 85 dB
Dynamic Range: >100 dB A-weighted
Power Requirements:
Receiver: Power Supply 12V DC (included)
Handheld: 2x AA batteries
Body Pack: 2x AA batteries
Operating time (batteries): up to 8 hrs
Dimensions:
Receiver: 210 x 125 x 44 mm
Handheld: ? 54 x 260 mm
Bodypack: 96 x 62 x 18.5 mm
Weight: Receiver: 450 g
Handheld: 218g
BodyPack: 93g
