Description

Please contact us for our Package Price on a Parallel Audio Portable PA System:

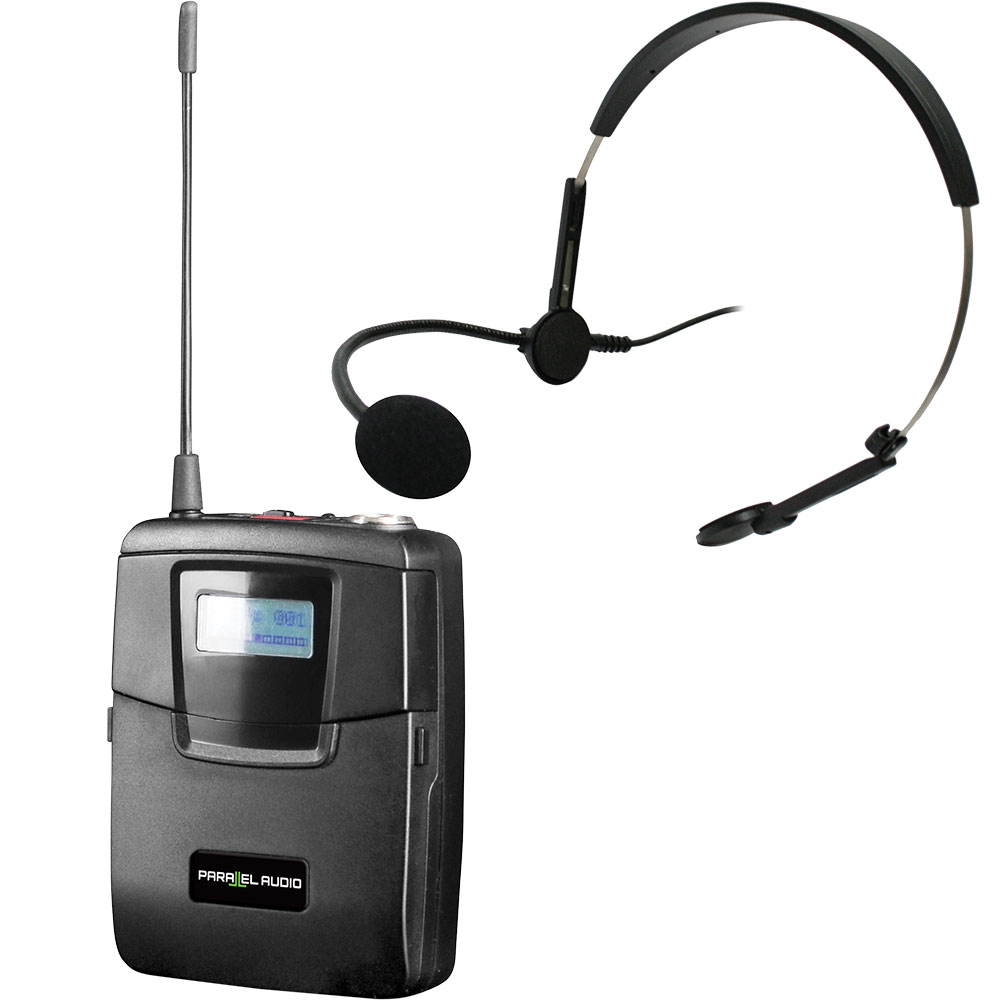

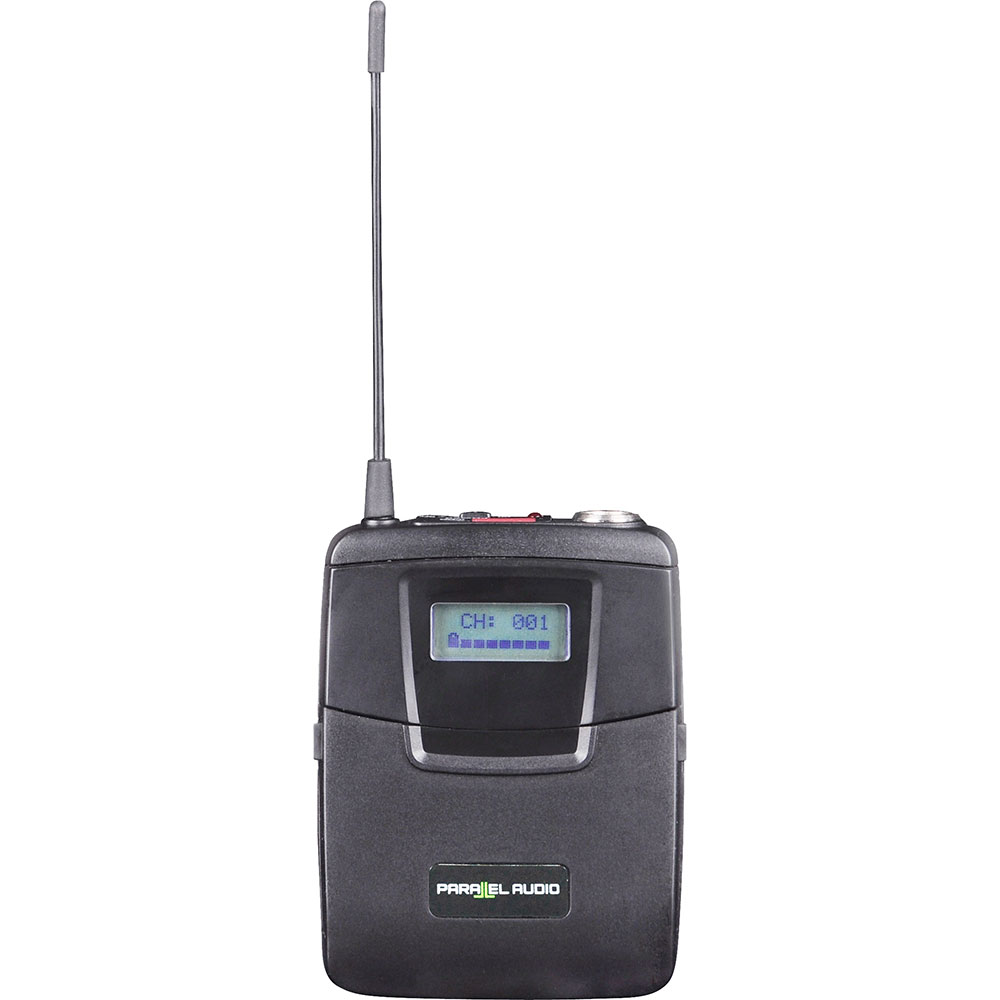

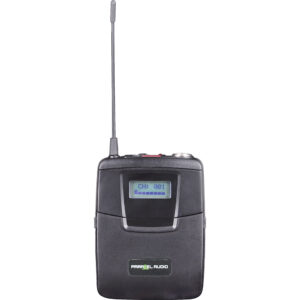

Parallel Audio BP6100/HM72  Beltpack Wireless Transmitter  with Headworn Microphone Option for use in Parallel Audio HX-765 and HX1510X portable PA systems which have wireless receivers installed.

FEATURES:
Multi-function LCD display for channel/frequency, battery level indicator, Alkaline/NiMH battery selection.
Patented IrDA technology for 2-way data transfer between transmitter and receiver.
100 frequencies agile in 25 MHz bandwidth.
±40 KHz peak deviation.
35 mW maximum transmission power.
Power-On LED.
Uses 2 x AA batteries to operate.
Low current consumption.
Long operating time up to 16 hours.
Standard 4-pin mini XLR connector.
1/4 wave whip antenna.
MT and GT gain controls for belt pack microphones.
Detachable belt-clip for changing of wearing position.

SPECIFICATIONS: Headworn Microphone
Type: Electret condenser microphone
Sensitivity: -50dB (0dB=1v/pa at 1KHz)
Impedance: 680Ω at 1KHz
Directivity: Uni-directional
Frequency Range: 100~16000Hz
Operation Voltage: 1.5V(standard), 10V(maximum)
Current Consumption: ≦ 0.5mA
Signal to Noise Ratio: ≧ 60dB
Connection: 3.5ft special cable without plug
Weight: Approx. 27g (without cord)

SPECIFICATIONS: Belt Pack
Frequency range: UHF 520-675MHz (3 available bands)
Switching bandwidth: 25MHz
Switchable frequency: 100
2-way synchronisation: Yes
RF power output : <35mW**
Spurious emission: > 60dB below carrier
Dynamic range: > 110dB
Display screen: LCD
T.H.D.: < 0.5%
Peak deviation: ±40KHz
Antenna: 1/4 wave, whip antenna
Battery type: AA x 2
Operating life (Alkaline) : 16 hrs
Charging function: Yes
Battery charger: HC2
Connector: 4-pin mini-XLR type
Dimensions (mm) : 84 (L) x 64 (W) x 23 (H)
Microphone input: Lavalier/headset microphone
Weight (g): 76
