Description

Please contact us for our Package Price on a Parallel Audio Portable PA System:

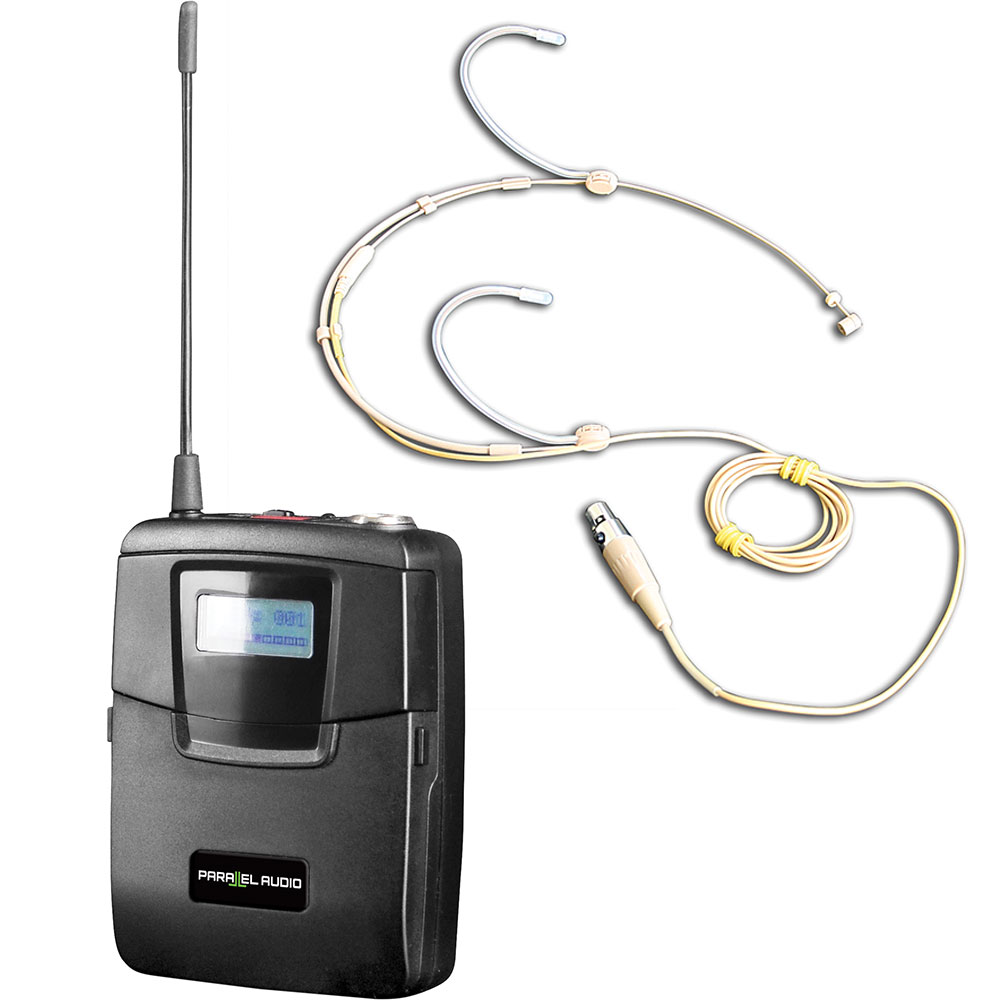

Parallel Audio BP6100/HM221U  Beltpack Wireless Transmitter  with High Quality Headworn Microphone Option for use in Parallel Audio HX-765 and HX1510X portable PA systems which have wireless receivers installed.

FEATURES:
Multi-function LCD display for channel/frequency, battery level indicator, Alkaline/NiMH battery selection.
Patented IrDA technology for 2-way data transfer between transmitter and receiver.
100 frequencies agile in 25 MHz bandwidth.
±40 KHz peak deviation.
35 mW maximum transmission power.
Power-On LED.
Uses 2 x AA batteries to operate.
Low current consumption.
Long operating time up to 16 hours.
Standard 4-pin mini XLR connector.
1/4 wave whip antenna.
MT and GT gain controls for belt pack microphones.
Detachable belt-clip for changing of wearing position.

SPECIFICATIONS: Headworn Microphone
Polar Pattern: Uni-Directional
S/N Ratio: 55 dB
SPL: 100 dB
Frequency Response: 70~16KHz
Impedance: 1200 Ω ± 30% (at 1KHz)
Sensitivity: -68±3 dB (0 dB = 1 V/microbar)
Operating Voltage: 1~10 V DC (RL : 2K2 Ω)
Colour: Skin
Capsule Housing: Φ5 x 6 mm
Boom: Φ1 x 190 mm
Wire: Φ1.5 mm x1.3 metre
Connector: TA4F

SPECIFICATIONS: Belt Pack
Frequency range: UHF 520-675MHz (3 available bands)
Switching bandwidth: 25MHz
Switchable frequency: 100
2-way synchronisation: Yes
RF power output : <35mW**
Spurious emission: > 60dB below carrier
Dynamic range: > 110dB
Display screen: LCD
T.H.D.: < 0.5%
Peak deviation: ±40KHz
Antenna: 1/4 wave, whip antenna
Battery type: AA x 2
Operating life (Alkaline) : 16 hrs
Charging function: Yes
Battery charger: HC2
Connector: 4-pin mini-XLR type
Dimensions (mm) : 84 (L) x 64 (W) x 23 (H)
Microphone input: Lavalier/headset microphone
Weight (g): 76
