Description

The industry standard XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.

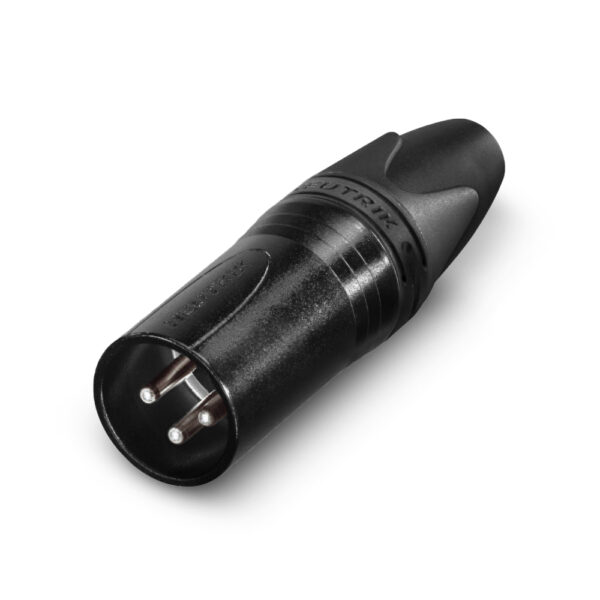

3 pole male cable connector with Nickel housing and silver contacts.

Features:

• Rugged zinc diecast shell, long lasting and durable
• Chuck type strain relief system for secure clamping of cables
• Boot with rubber gland gives high protection against bending stresses
• UL recognized components
• UL 94 V-0 flammability and IP40 protection class
• Cable outer diameter of 3.5mm to 8mm and wire size of 14AWG(2.5mm²)
• Compliance to IEC 61076-2-103 & solderability IEC 68-2-20 standard
• Temperature range from -30°C to 80°C and lifetime <gt/>1000 mating cycles
• Boot with rubber gland gives high protection against bending stresses
