THESE ITEMS ARE AVAILABLE FOR ORDER. MODELS, SPECIFICATIONS AND RETAIL PRICES ARE BELOW
PLEASE CALL 07 3274 2530 OR EMAIL ([email protected]) FOR YOUR PRICE OR TO ORDER THIS PRODUCT

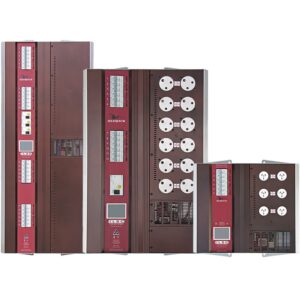

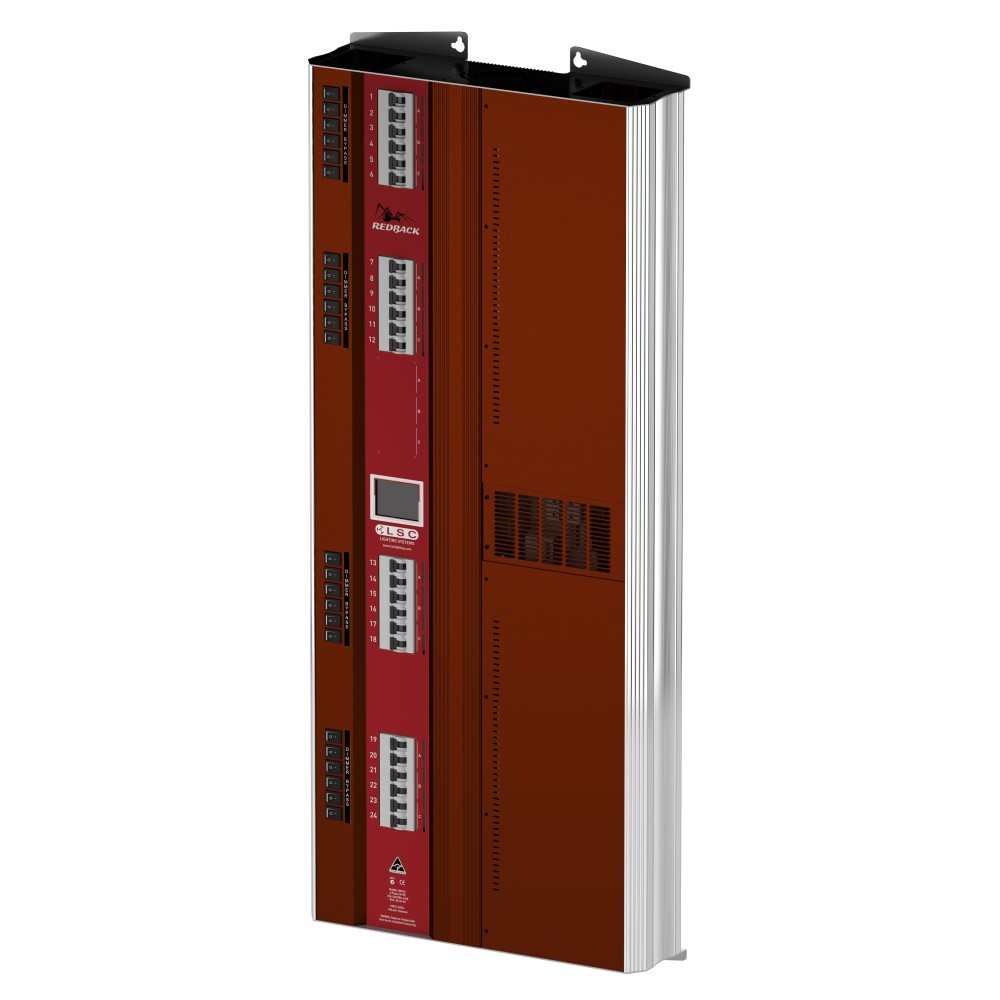

LSC CONTROL’S REDBACK WALL MOUNTED DIMMER SERIES
CONTROL:
DMX512 1990), DMX512-A (E1-21) with RDM (E1-20) compatibility via internal terminal blocks. Option for bottom panel XLR 5-pin connector module available for plug-in DMX/RDM
Remote monitoring, configuration and control via RDMR

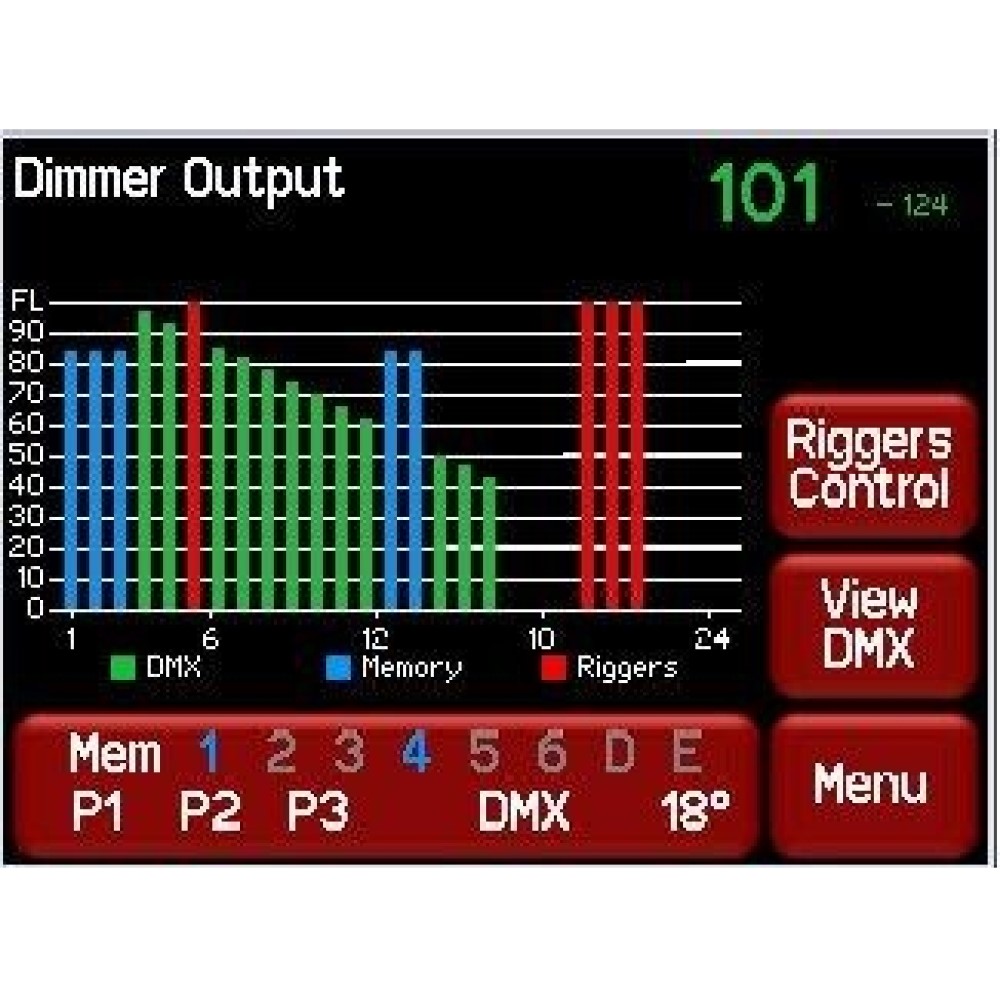

Easy-to-read 2.8″ full-colour TFT touchscreen complete with on-board context sensitive help
Graphical user interface for simple configuration and control of the dimmer
Two dimmer curves per output channel
Full 512 channel Softpatch that allows patching of any DMX channel to any number of dimmer channels
Six programmable scenes with individual fade times
Rigger’s control for local control of outputs, complete with multiple inbuilt chase options with speed control
Easy software update via internally located SD card slot
User-selectable minimum (bottom set) level per channel to allow preheating of lamps
User-selectable maximum (top set) level per channel to reduce output and increase lamp life
Architectural control via push-button wall plates (ordered separately) – a maximum of four plates can be connected up to 200m away from dimmer and can remotely activate six stored static scenes
PROTECTION:
6 channel x 10A RCBO breakers with 30ma trip per channel
Multilevel user interface lock to prevent accidental changes to settings
Programmable DMX512 backup scene with delay time, that can be automatically activated with loss of main DMX512 signal
Visual alarms for phase fail, over temperature and loss of input signal
Panic (fire) input connection (dry contact closure activates an emergency scene)
OUTPUTS:
100% duty cycle rated at 25°C ambient with all channels fully loaded

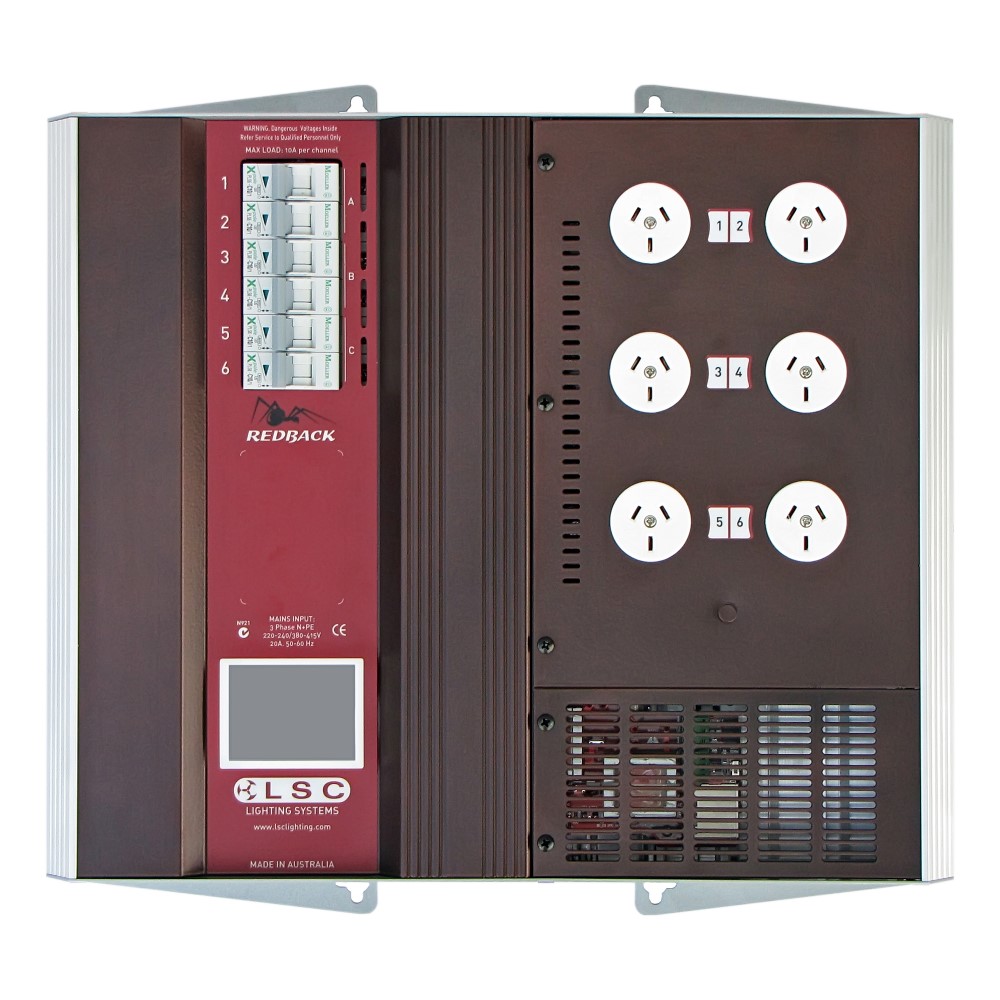

Choice of front panel mounted 3-pin Australian output connectors, or internal hardwired screw terminals
Manual bypass switch per output channel to provide direct 240V power for non-dim loads
6-channel dimmer module to dim conventional tungsten loads
6-channel relay module to power any type of loads
POWER:
Nominal 100-240V AC, 3-phase star TN-S with fully rated earth, 50-60Hz, connected via internal screw terminals
Operating range typically 90-260V AC, 45-65Hz auto voltage and frequency adjustment with dropped neutral protection
Operating temperature 2°C to 40°C ambient with thermally controlled fan cooling
PRODUCT CODE | CHANNELS | DIMMER / RELAY | OUTPUT | RRP PRICE |
RBW6/B/A | 6 | DIMMER | 3PIN 10A OUTLETS | $2,525.00 |
RBW6/B/T | 6 | DIMMER | SCREW TERMINALS | $2,415.00 |
RBW6/C/B/A | 6 | DMX RELAY | 3PIN 10A OUTLETS | $2,525.00 |
RBW6/V/B/T | 6 | DMX RELAY | SCREW TERMINALS | $2,415.00 |
RBW12/B/A | 12 | DIMMER | 3PIN 10A OUTLETS | $3,515.00 |
RBW12/B/T | 12 | DIMMER | SCREW TERMINALS | $3,295.00 |
RBW12/K/B/A | 12 | 6 DIMMER 6 DMX RELAY | 3PIN 10A OUTLETS | $3,515.00 |
RBW12/K/B/T | 12 | 6 DIMMER 6 DMX RELAY | SCREW TERMINALS | $3,295.00 |
RBW12/C/B/A | 12 | DMX RELAY | 3PIN 10A OUTLETS | $3,515.00 |
RBW12/C/B/T | 12 | DMX RELAY | SCREW TERMINALS | $3,295.00 |
RBW24/B/A | 24 | DIMMER | 3PIN 10A OUTLETS | $6,045.00 |
RBW24/B/T | 24 | DIMMER | SCREW TERMINALS | $5,715.00 |
RBW24/K/B/A | 24 | 18 DIMMER 6 DMX RELAY | 3PIN 10A OUTLETS | $6,045.00 |
RBW24/K/B/T | 24 | 18 DIMMER 6 DMX RELAY | SCREW TERMINALS | $5,715.00 |
RBW24/C/B/A | 24 | DMX RELAY | 3PIN 10A OUTLETS | $6,045.00 |
RBW24/C/B/T | 24 | DMX RELAY | SCREW TERMINALS | $5,715.00 |
OPTIONS | ||||
TAIL32A/S1 | Three Phase Flying Lead With 32A Plug for GVW/APW/RBW | $142.00 | ||
TAIL40A/S1 | Three Phase Flying Lead With 40A Plug for GVW/APW/RBW | $174.00 | ||
TAIL32A/S2 | Three Phase Flying Lead With 32A Plug for GVW/APW/RBW | $170.00 | ||
TAIL40A/S2 | Three Phase Flying Lead With 40A Plug for GVW/APW/RBW | $202.00 | ||
DMX | ||||
RBW/DMX | DMX Connector Plate with XLR5 In & Thru Connectors | $120.00 | ||
WALLPLATES | ||||
RBR/1 | 1 Button Wall Plate Remote for Redback Wallmount Range | $325.00 | ||
RBR/2 | 1 Button Wall Plate Remote for Redback Wallmount Range | $325.00 | ||
RBR/6 | 1 Button Wall Plate Remote for Redback Wallmount Range | $325.00 |
