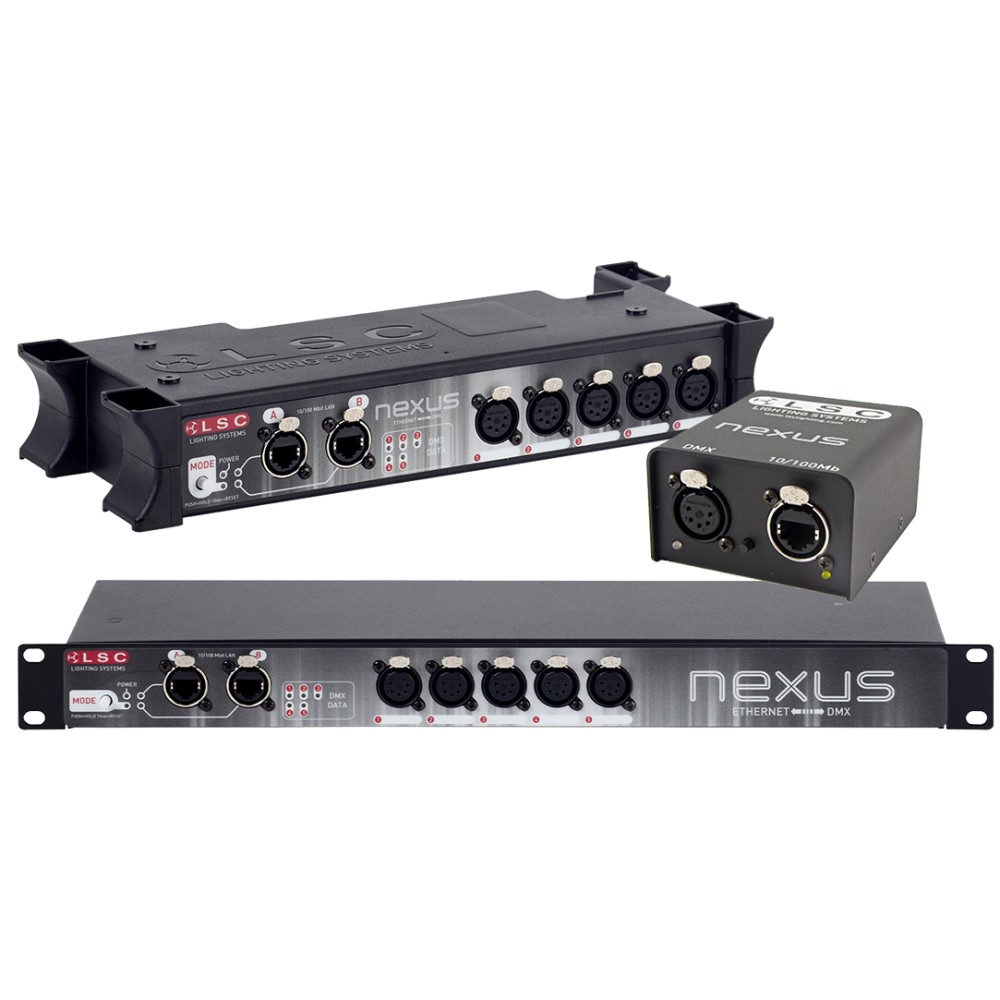

Much more than a standard DMX512 to Ethernet converter, the NEXUS range of both 1-port and 5-port interfaces is a problem solver for those weird and wonderful configurations required in today’s demanding and complex shows.
Modes:
Standard DMX512A/RDM output from a selected Art-Net, ShowNet or sACN Universe
HTP merge of three selected Art-Net/ShowNet/sACN Universes
Softpatch merge of three selected Art-Net/ShowNet/sACN Universes
Select three Universes and merge individual slots using HTP, priority, control or fade
Aassign an output to a primary and a secondary Universe with auto-switching from primary to secondary on loss of primary Universe
Resend – any merged port can be resent as a new Art-Net/ShowNet/sACN Universe
DMX input – send a standard DMX port to an Art-Net/ShowNet/sACN Universe
DMX/RDM backup – a special input that is only activated if the selected main Universe is no longer present
Full RDM control of a networked rig via NexLan software or Art-Net RDM
backup switch for multiple lighting controllers connected to NEXUS
A simple DMX512/RDM splitter
CONTROL:
Supports Art-Net, ShowNet and sACN over Ethernet
Supports DMX512A and RDM on inputs and outputs
LED indicators for DMX, power, network activity and DMX/RDM data activity

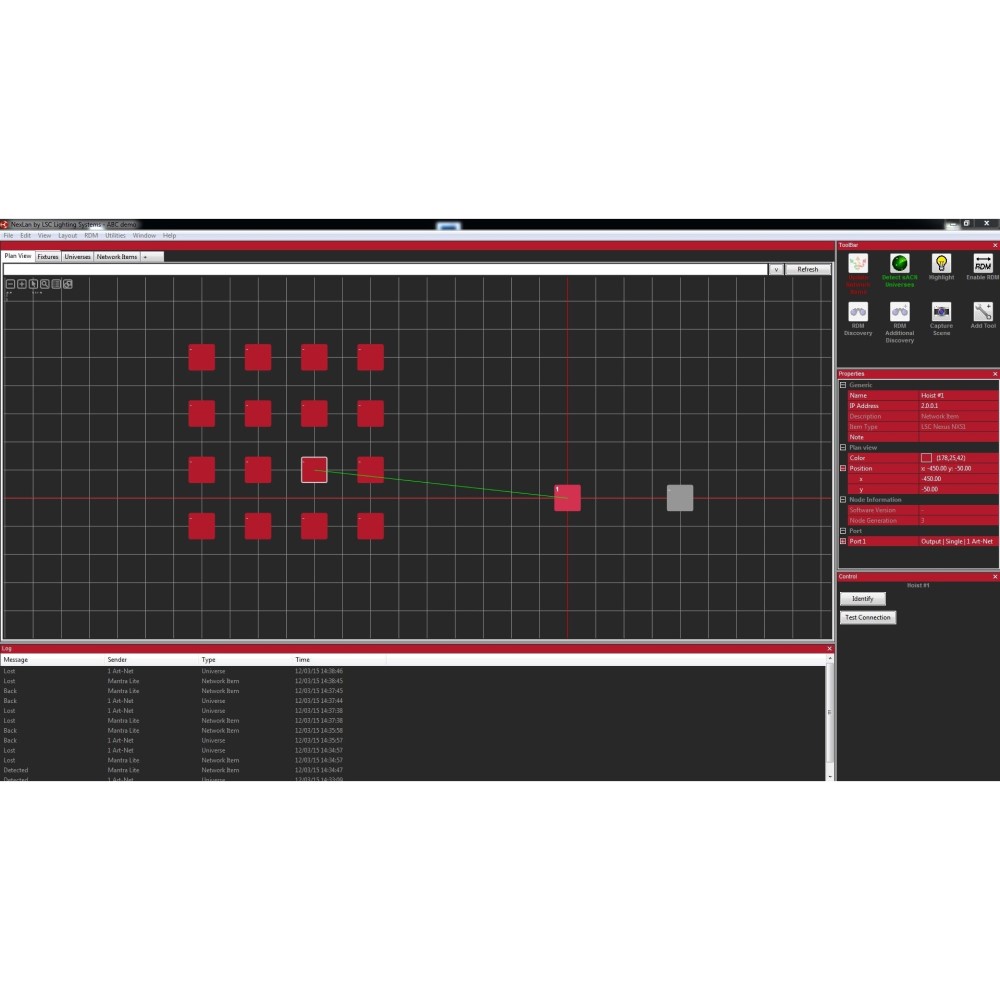

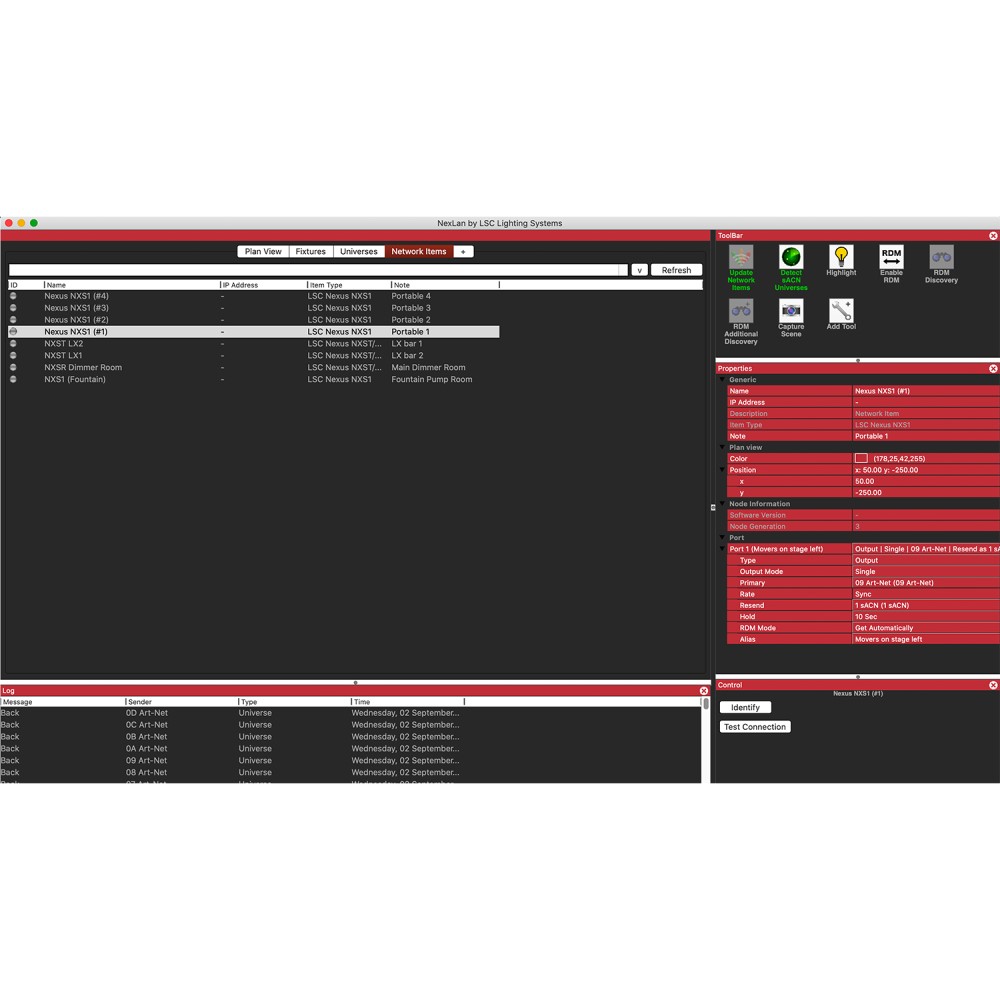

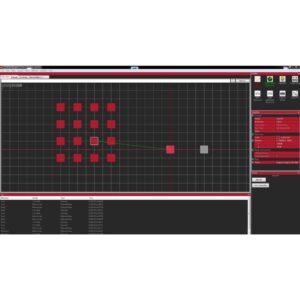

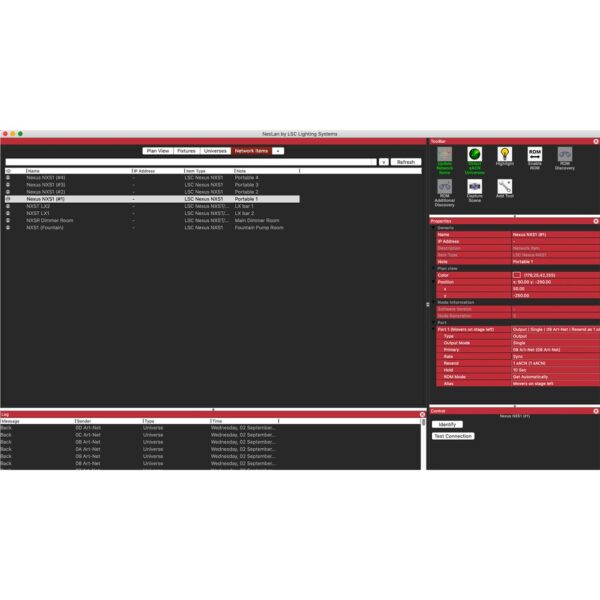

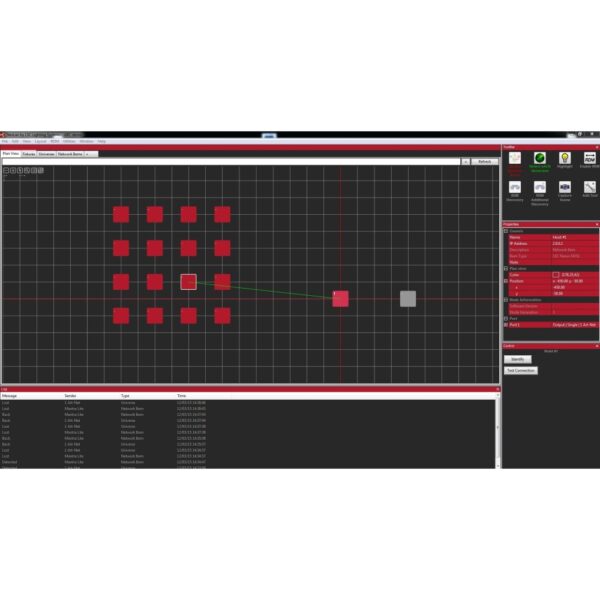

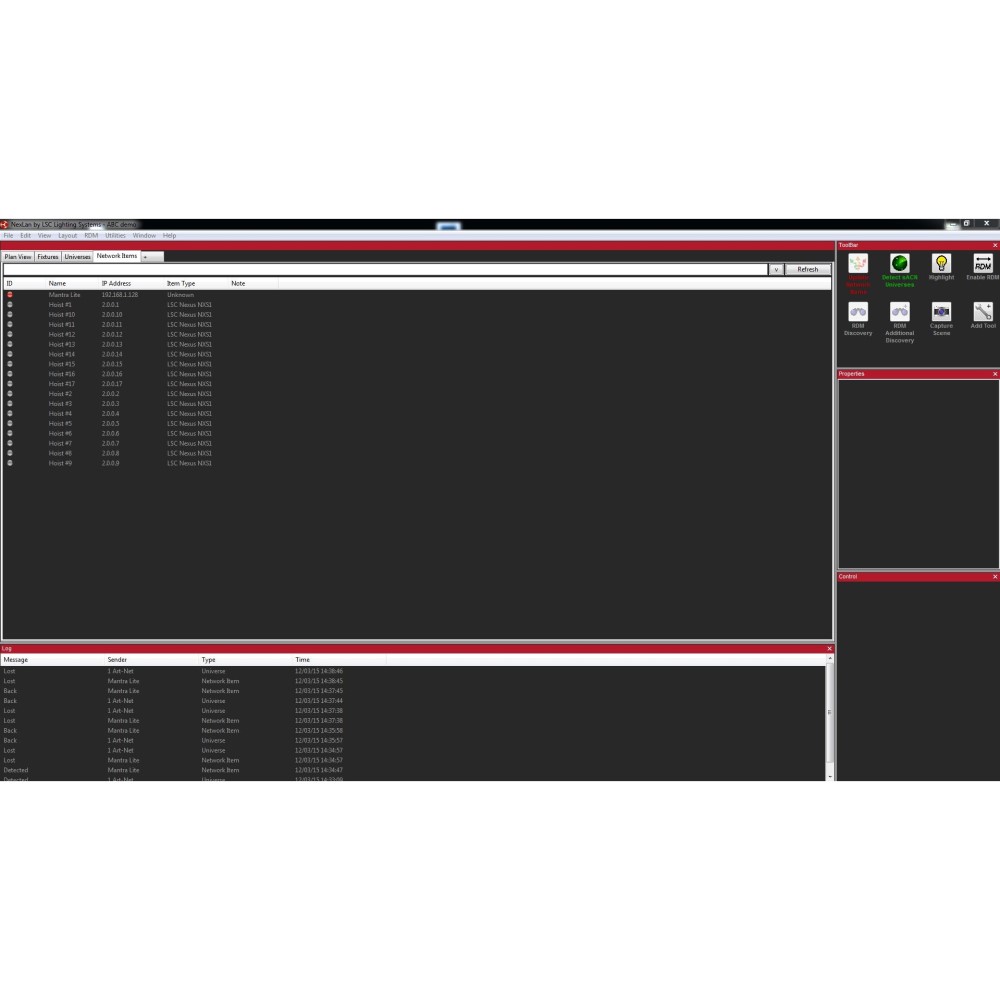

Configuration and monitoring via NexLan software on remote computer
INPUTS / OUTPUTS:
One Ethernet port using a Neutrik Ethercon connector
Two Ethernet ports using Neutrik Ethercon connectors
One data input/output suitable for DMX512-A/RDM compatible protocols on 5-pin XLR-style connector
Second Ethernet port can be used as a hub or as a redundant feed
Five data input/outputs suitable for DMX512-A/RDM compatible protocols on 5-pin XLR-style connectors
Fully opto/earth isolated input and individually opto/earth isolated outputs
Output circuits are EMI-filtered and current-limited to protect against short circuits
POWER:
Ppower over Ethernet supply (PoE)
Built-in switch mode power supply (85-260V AC) with auto frequency sensing (47-63Hz)
IEC 3-pin input power connector as standard, or Neutrik powerCON as factory-fitted option
PRODUCT CODE | PORTS | MODE | POWER INPUT | RRP PRICE |

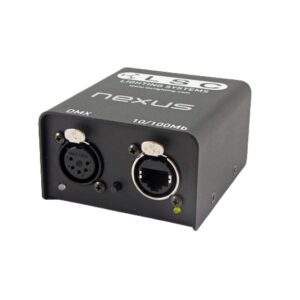

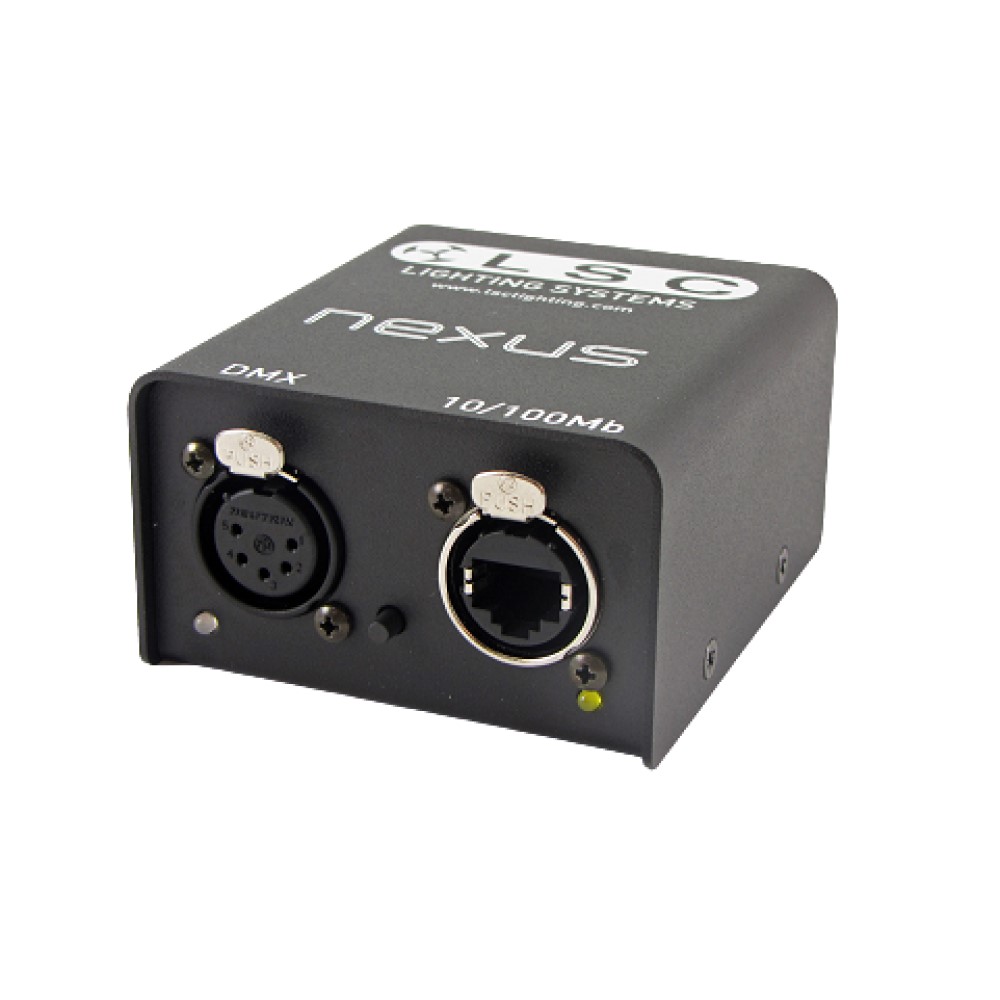

NXS1 | 1 | PORTABLE | IEC | $645 |

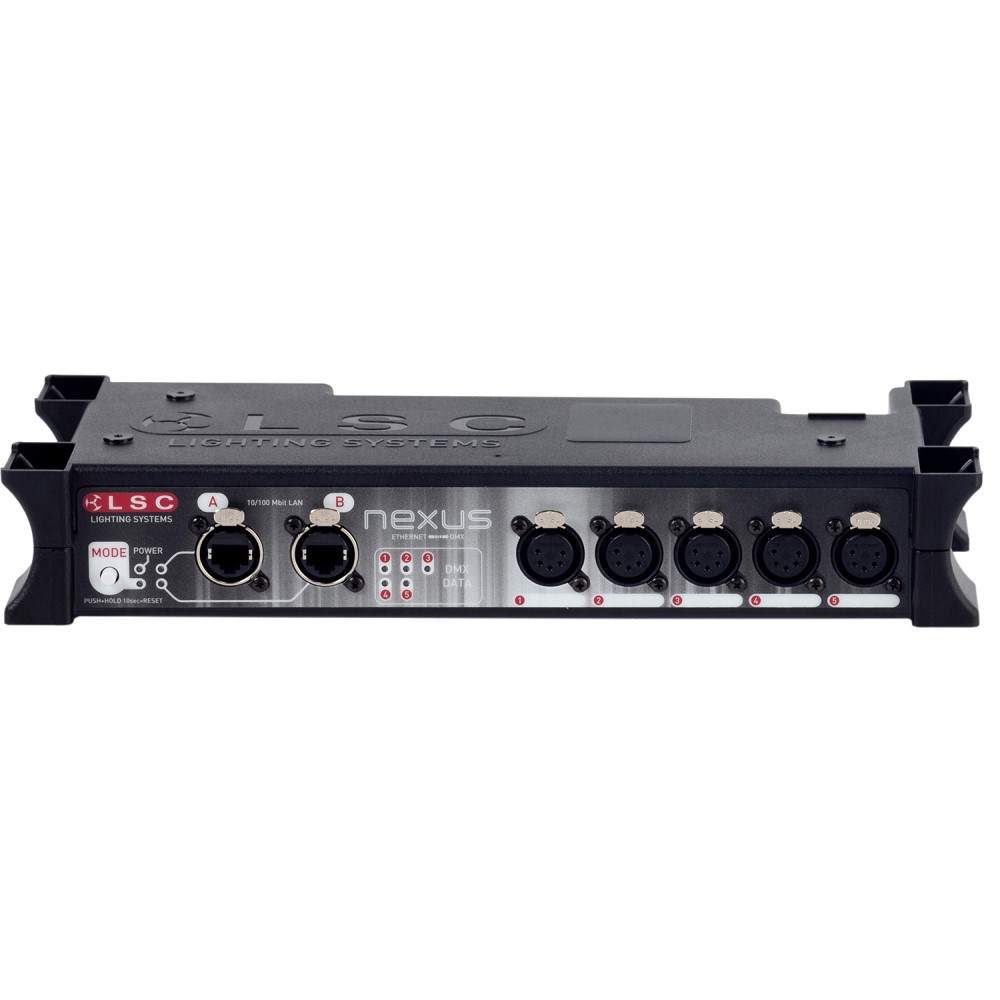

NXST | 5 | TRUSSMOUNT | IEC | $1,895 |
NXST/P | 5 | TRUSSMOUNT | POWERCON | $2,005 |

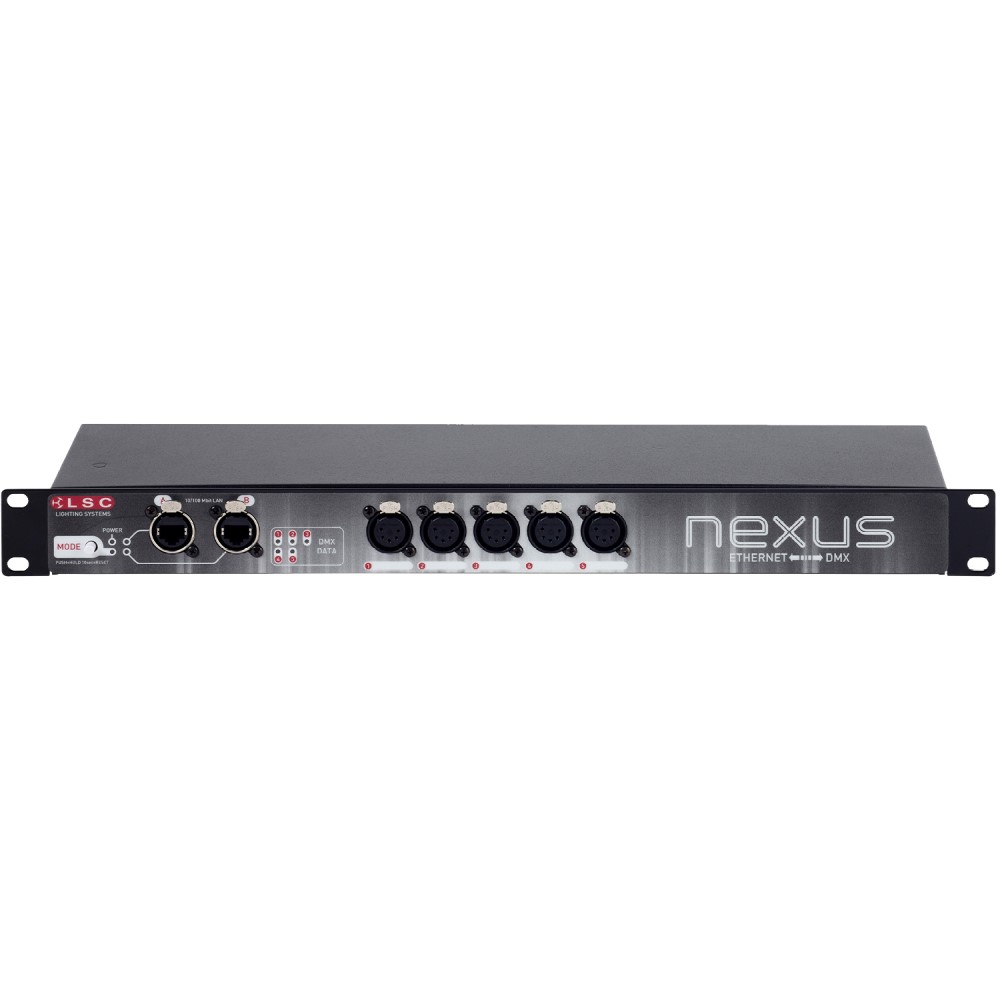

NXSR | 5 | RACKMOUNT | IEC | $1,945 |
NSXR/P | 5 | RACKMOUNT | POWERCON | $2,055 |
SOFTWARE | ||||
NXSS | NEXLAN Windows and MAC Software for NEXUS units | FREE |
