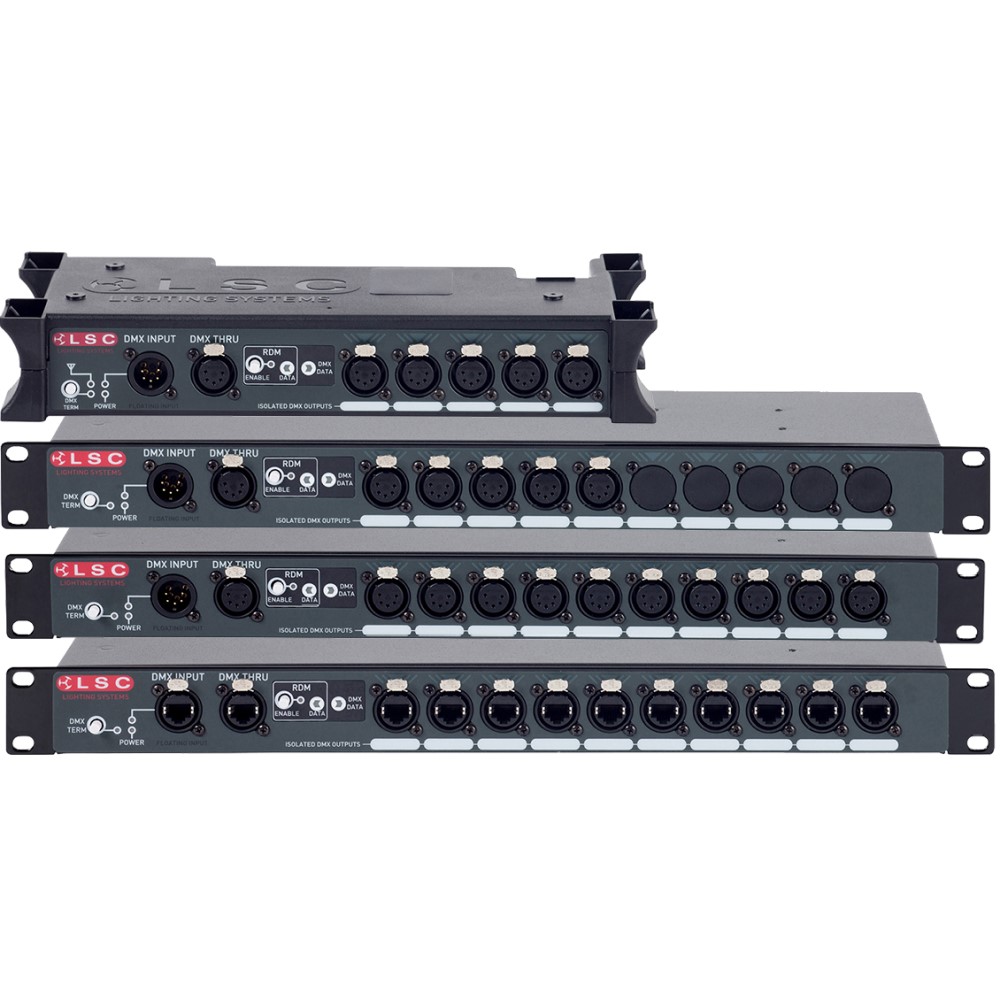

LSC Control MDR Series DMX Splitters.
CONTROL:
DMX512 (1990), DMX512-A (E1-11) and RDM (E1-20) (if option fitted) via front-panel connectors
Termination switch to set end-of-line DMX termination on the input
RDM On/Off switch to enable/disable RDM return data (if option fitted)
Indicator LEDs for power and DMX and RDM activity (if option fitted)
PROTECTION:
Inputs galvanically isolated from outputs to 1500V
All outputs galvanically isolated from each other to 1500V
EMI-filtered and current-limited to protect against short circuits
CONNECTORS:
DMX in, thru and output connectors on front panel
PRODUCT CODE | IN / THRU | OUTPUTS | RDM | TRUSS MOUNT | POWER | RRP | |

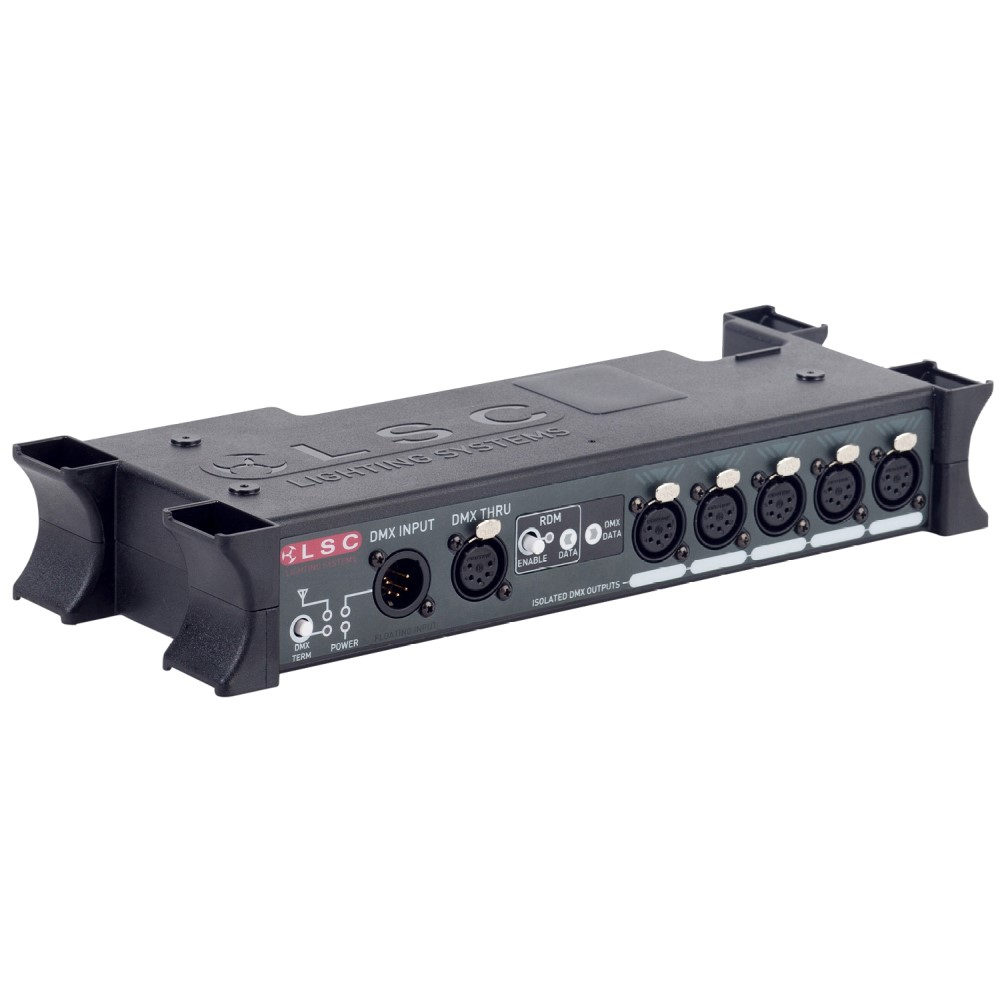

MDRT | 5 pin | 5 | 5 pin | NO | YES | IEC | $635 |
MDRT/R | 5 pin | 5 | 5 pin | YES | YES | IEC | $745 |

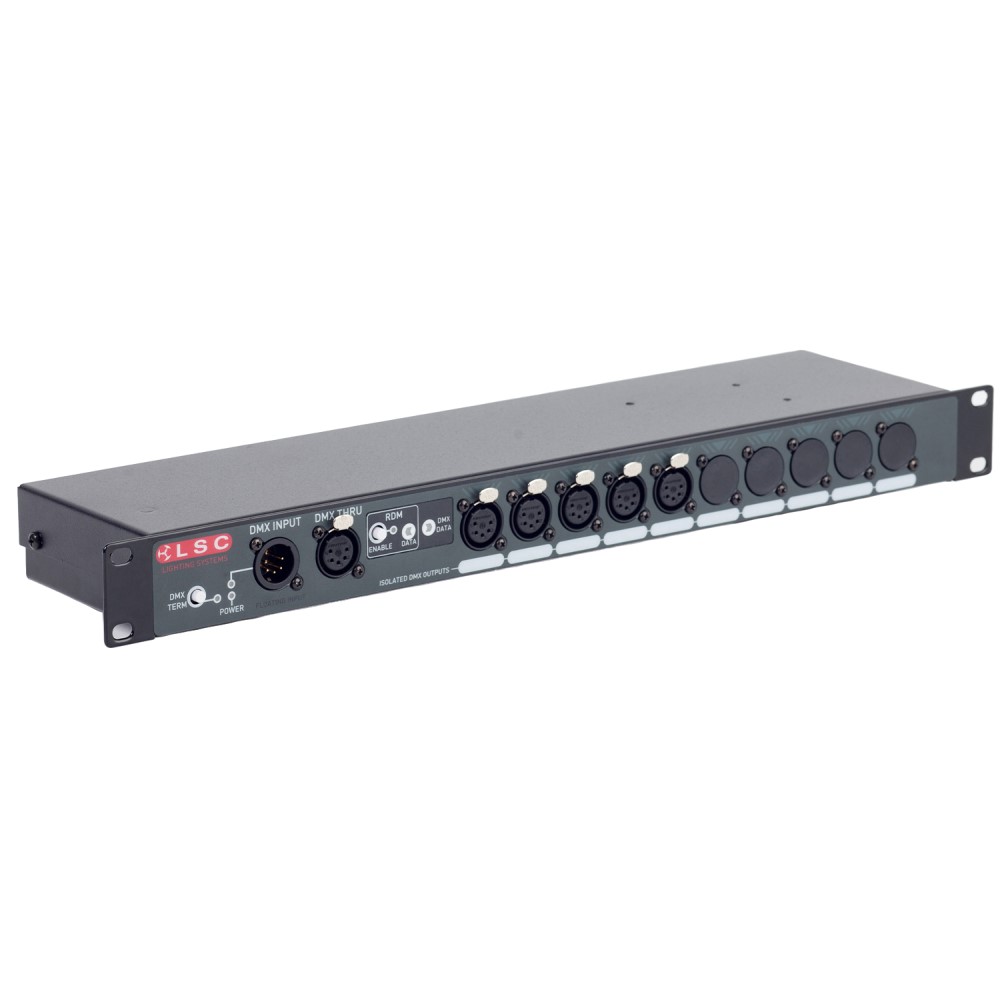

MDRR | 5 pin | 5 | 5 pin | NO | NO | IEC | $820 |
MDRR/R | 5 pin | 5 | 5 pin | YES | NO | IEC | $930 |

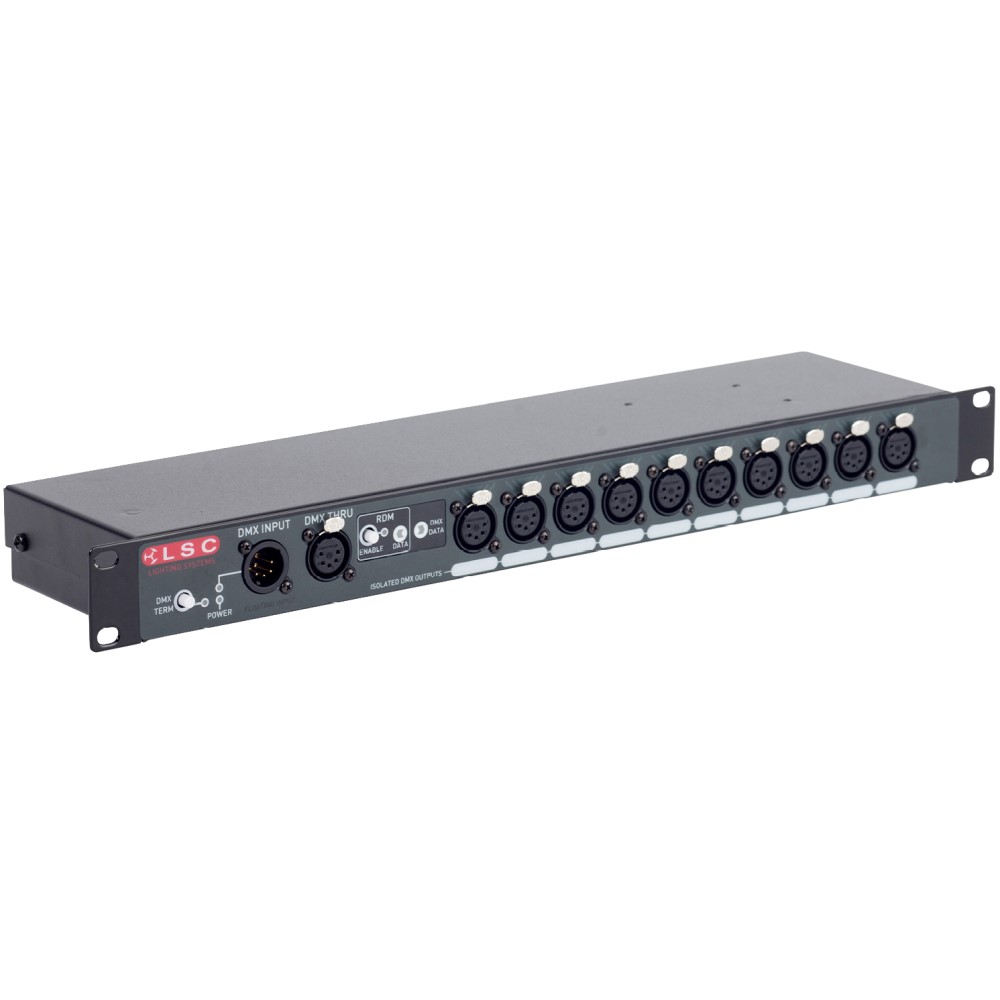

MDRX | 5 pin | 10 | 5 pin | NO | NO | IEC | $1,045 |
MDRX/R | 5 pin | 10 | 5 pin | YES | NO | IEC | $1,155 |
MDRJ | RJ45 | 10 | RJ45 | NO | NO | IEC | $1,375 |
MDRJ/R | RJ45 | 10 | RJ45 | YES | NO | IEC | $1,485 |
MDRT/3 | 5 pin | 5 | 2 x 3 pin/3 x 5 pin | NO | YES | IEC | $755 |
MDRR/T | 5 pin | 5 | 3 x 3 pin/2 x 5 pin | NO | NO | IEC | $940 |
MDRX/5 | 5 pin | 10 | 5 x 3pin/5 x 5pin | NO | NO | IEC | $1,165 |
OPTIONS | |||||||
MDR/P | UPGRADE | Swap the IEC power in for powercon | add | $110 | |||
MDR/RDM | UPGRADE | Add RDM Module to Non-RDM Models | add | $215 | |||
MDR/BKT | ADD | add a truss mount kit to non-trussmount models | add | $55 |
