Description

The Event Lighting SPLIT124 is a rack or truss mountable DMX splitter designed to retransmit and distribute a DMX signal into 4 outputs and one throughput. Both 3 and 5 pin XLR connectors are included for maximum flexibility when connecting DMX controlled devices. The optically isolated circuitry protects your controller from electrical surges while maintaining the integrity of the signal.

Features:
DMX512 protocol

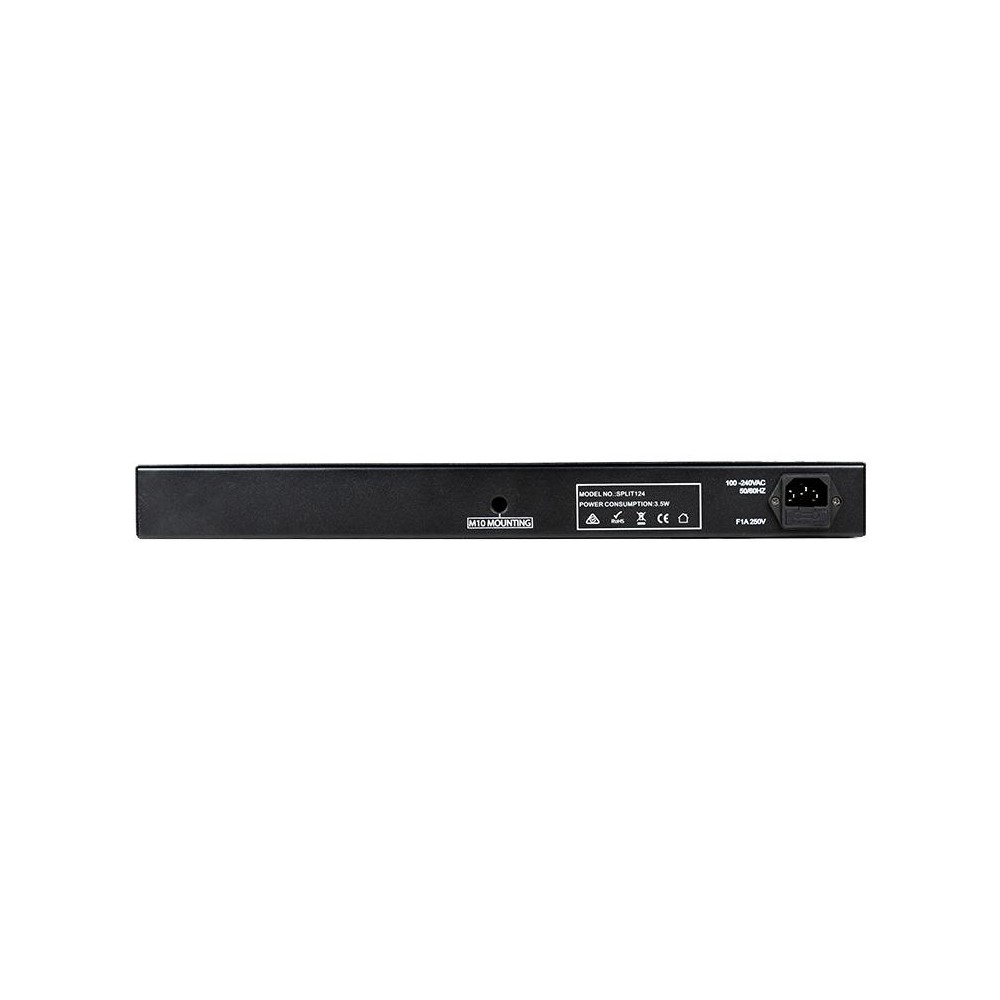

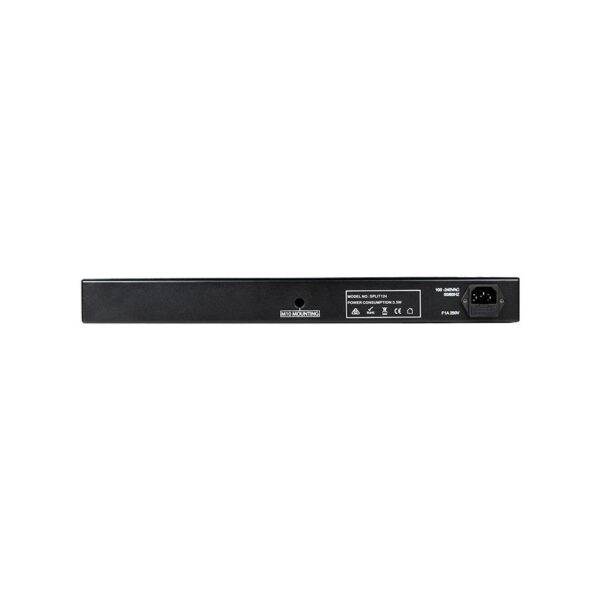

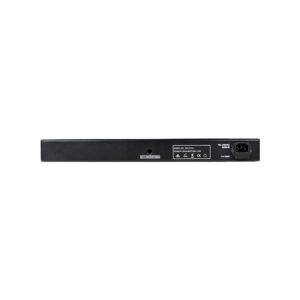

Power: 100-240V AC 50/60Hz, 3W @ 120V AC 60Hz, 5W @ 230V AC 50Hz
Dimensions: 483 x 131 x 45 mm (1RU)
Weight: 2.6kg

Applications:
Small theatres
Churches
DJs and Bands
School halls

Functional Specs:

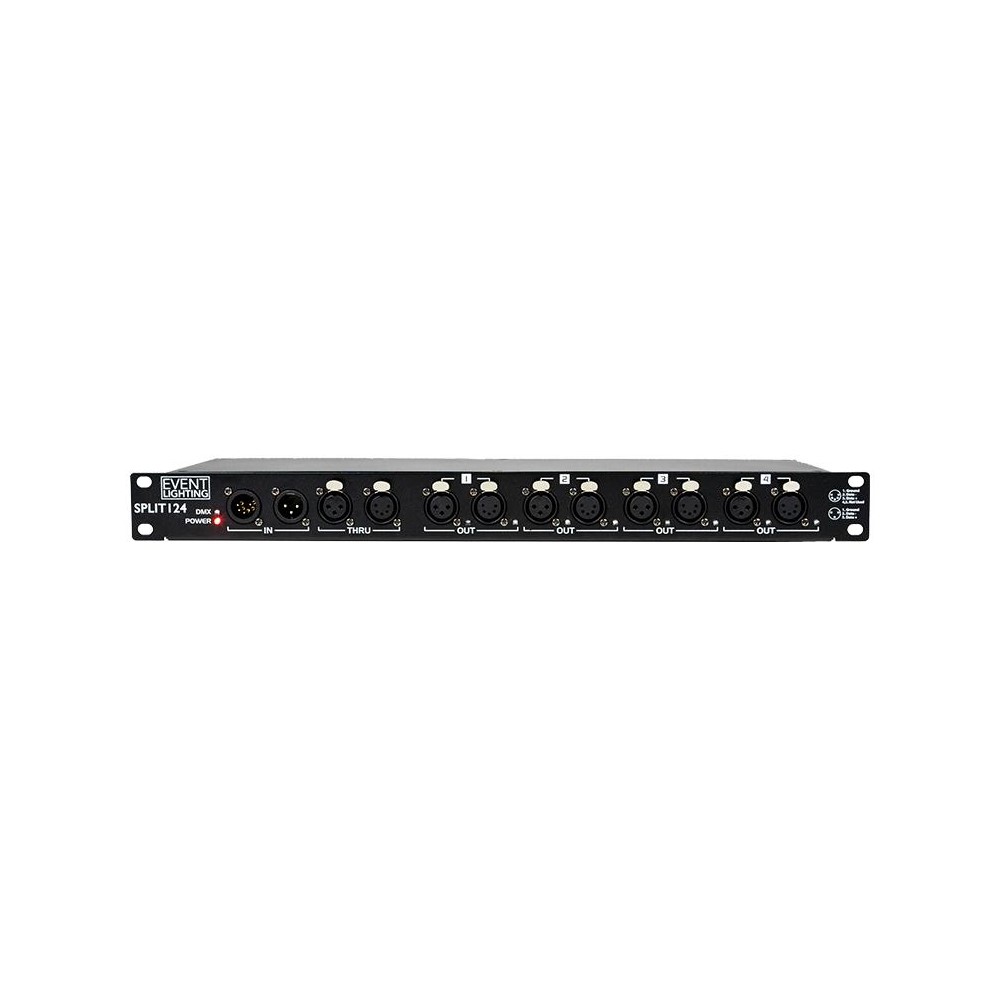

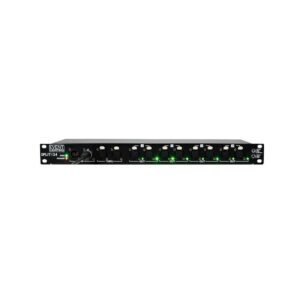

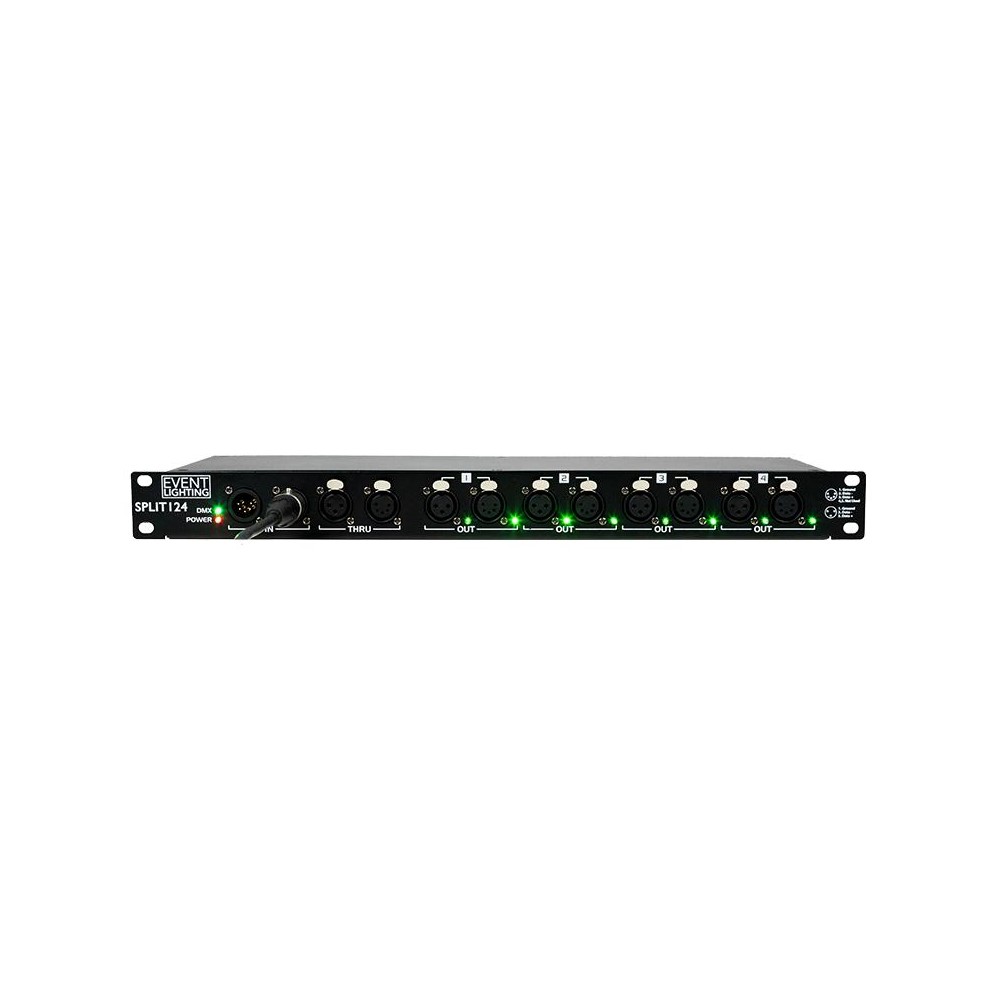

DMX Output – Four outputs — each channel has one three pin and one five pin XLR.  All four Channels may be used simultaneously, or in any combination.
1000V isolation between input and output, and between any individual output. This protects your console from surges on the DMX line, and also keeps any stray voltage from crossing to other DMX chains
