Description

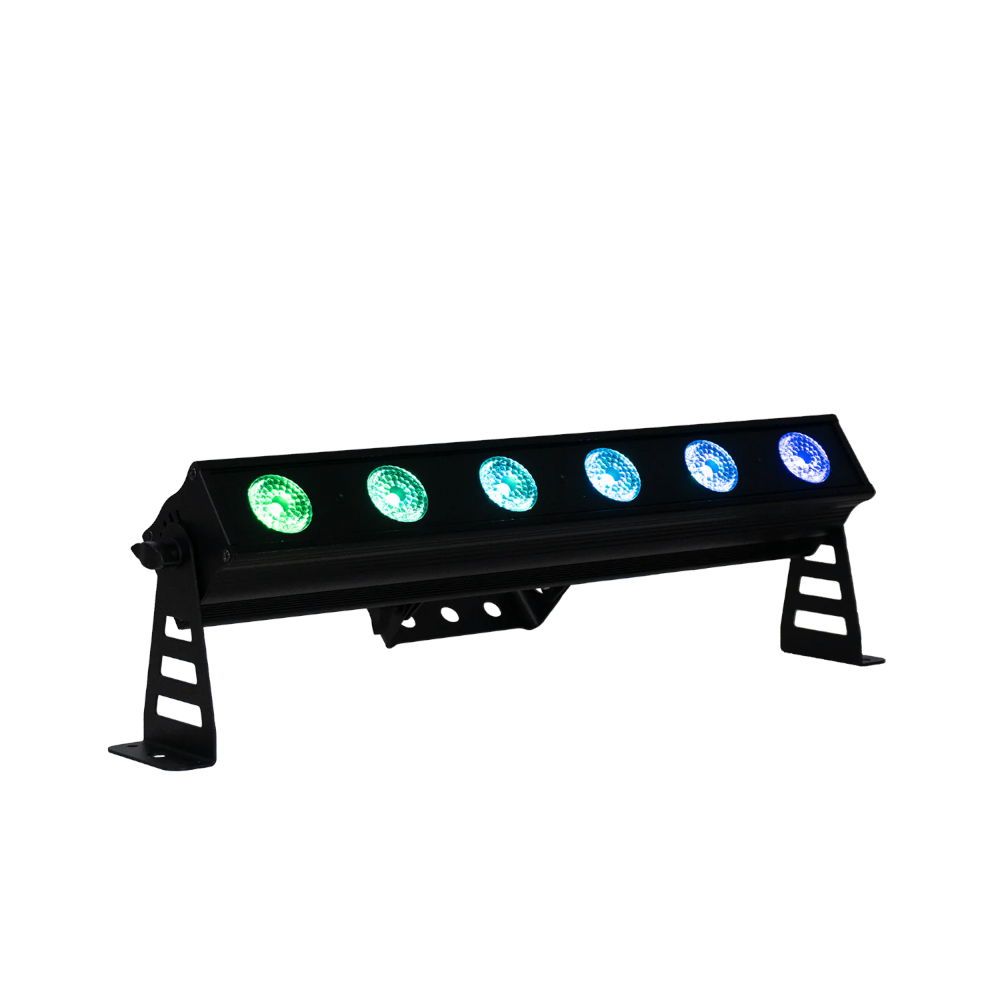

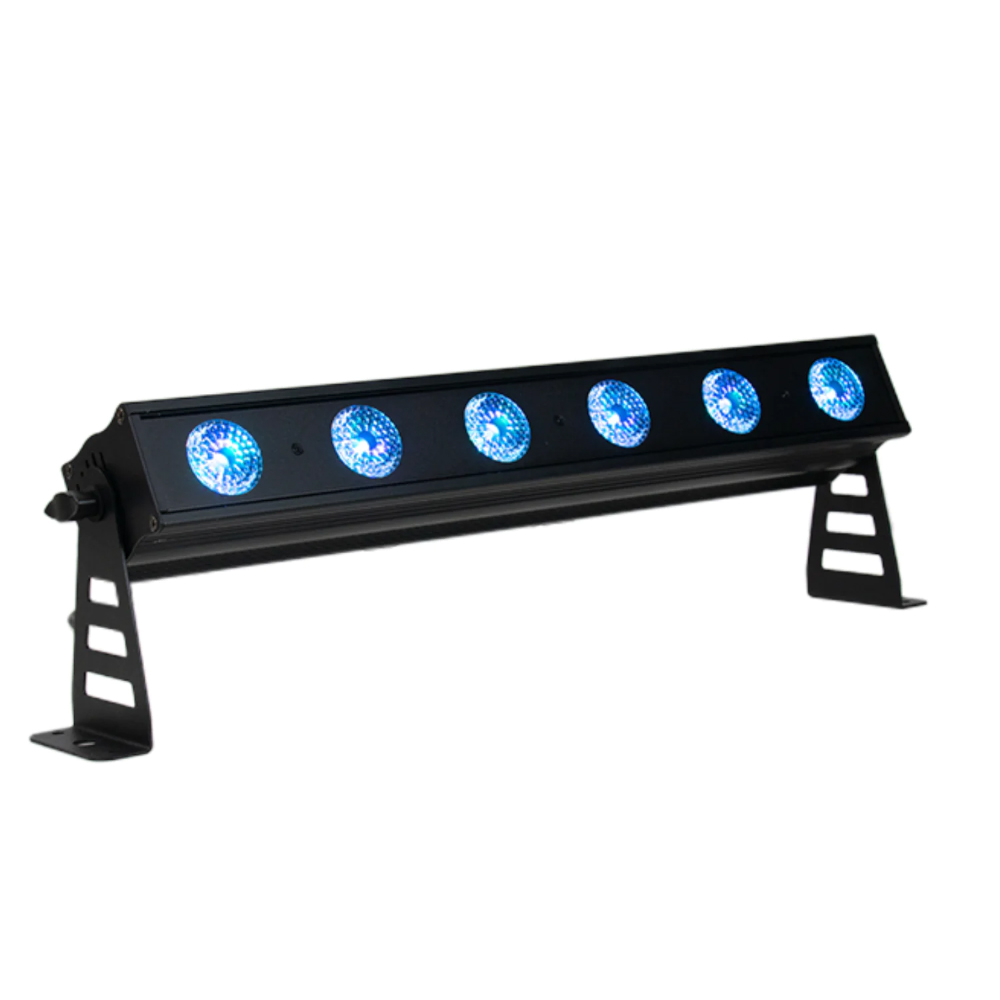

Event Lighting PIXBARs are perfect for fixed installations and productions. All models feature pixel control, an aluminium housing and fanless operation, making them silent and virtually maintenance free.

Specifications:

Photometrics

Light Source: 6x 12 W RGBWAU LEDs

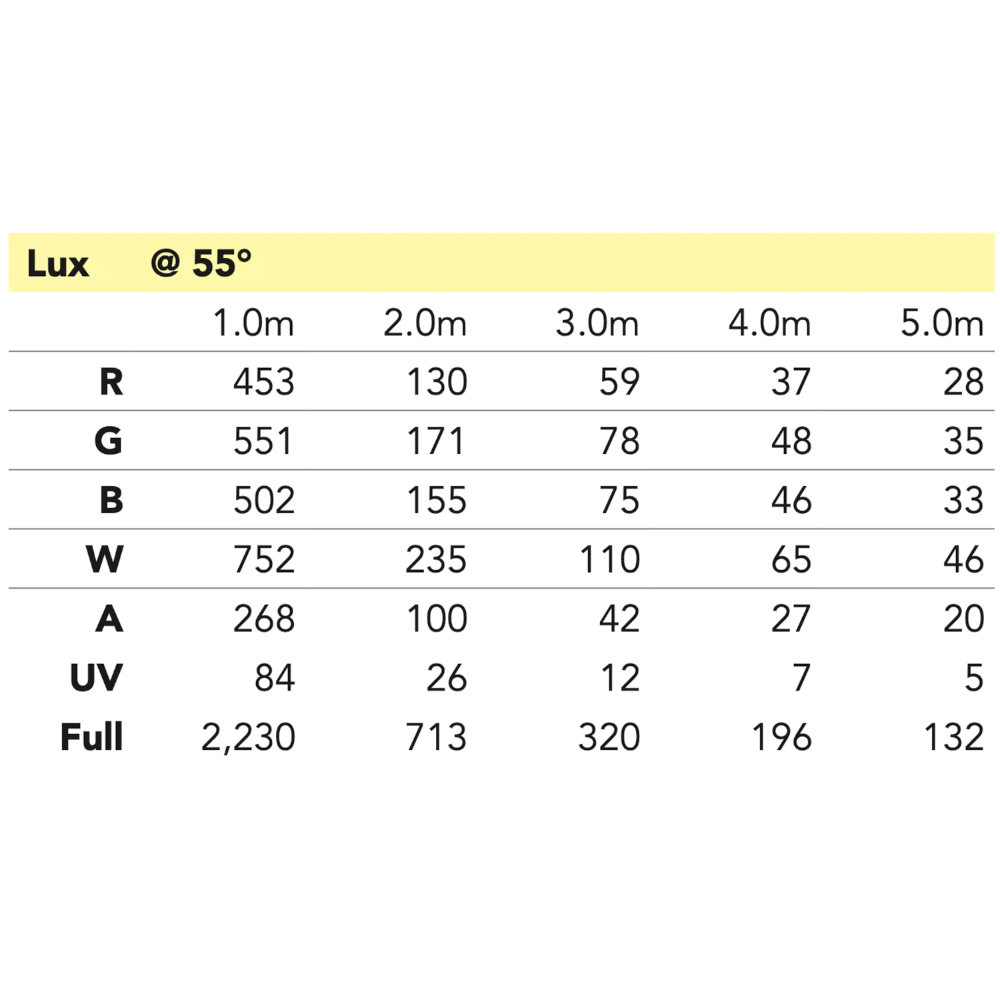

Beam Angle: 30° (optional: 55° )

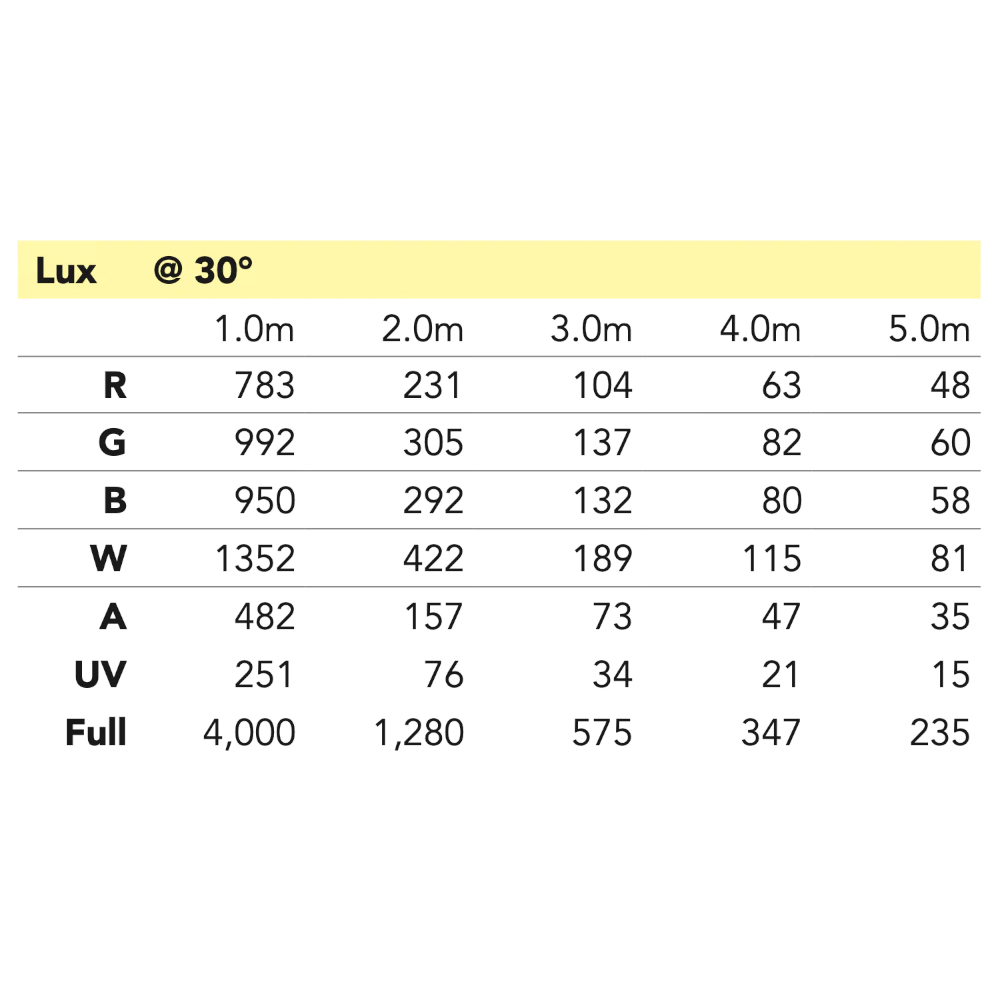

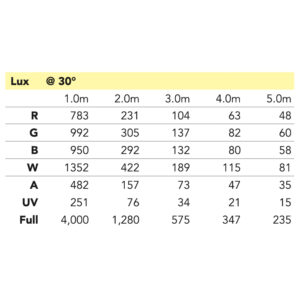

Output: 1,280 lux @ 2.0 m RGBWAU full on
PWM: 12,000 Hz
LED Life: 50,000 hours
Effects

Dimming: 0~100%, 4x 16-bit Dimming Curves
Strobe: 1~30 Hz
Power

Input Voltages: 100~240 V AC,50/60Hz, 60 W

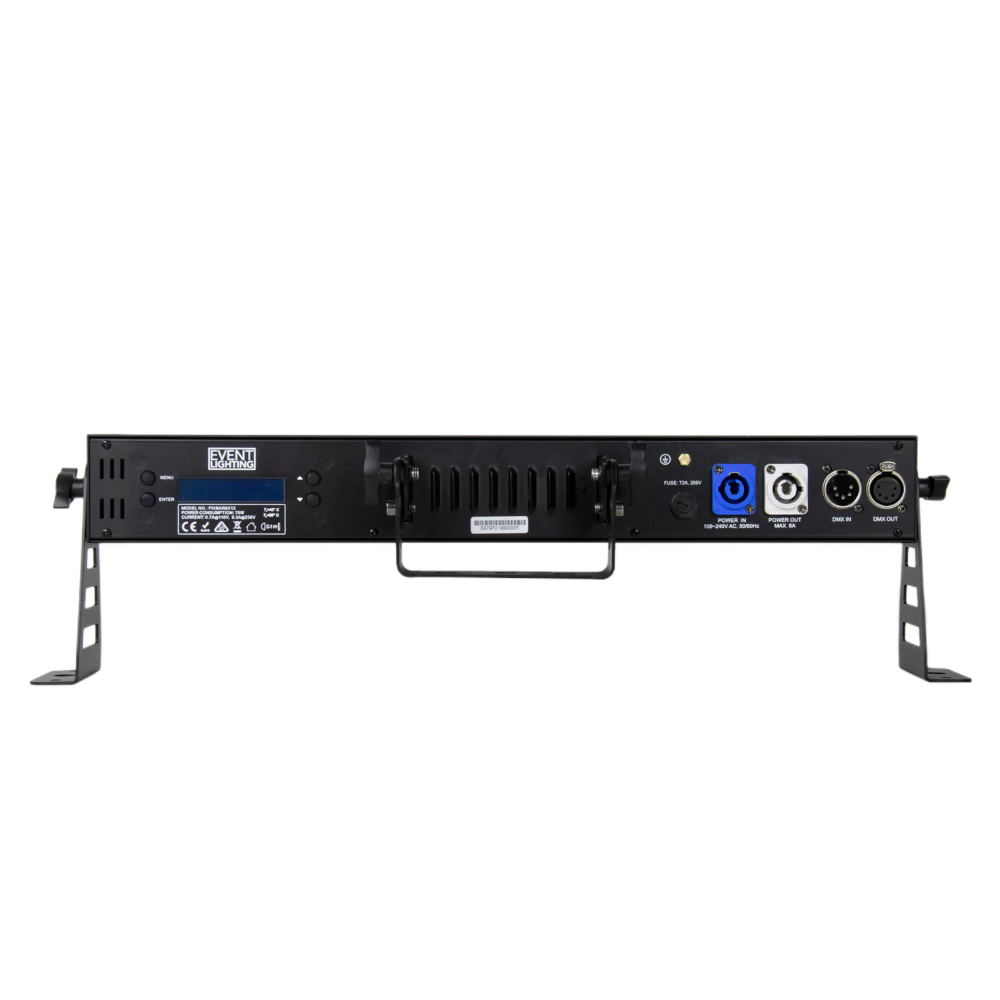

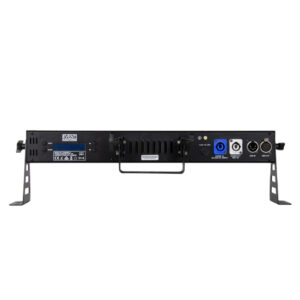

Power Connection: Neutrik® powerCON in/out
Control

Operation Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase

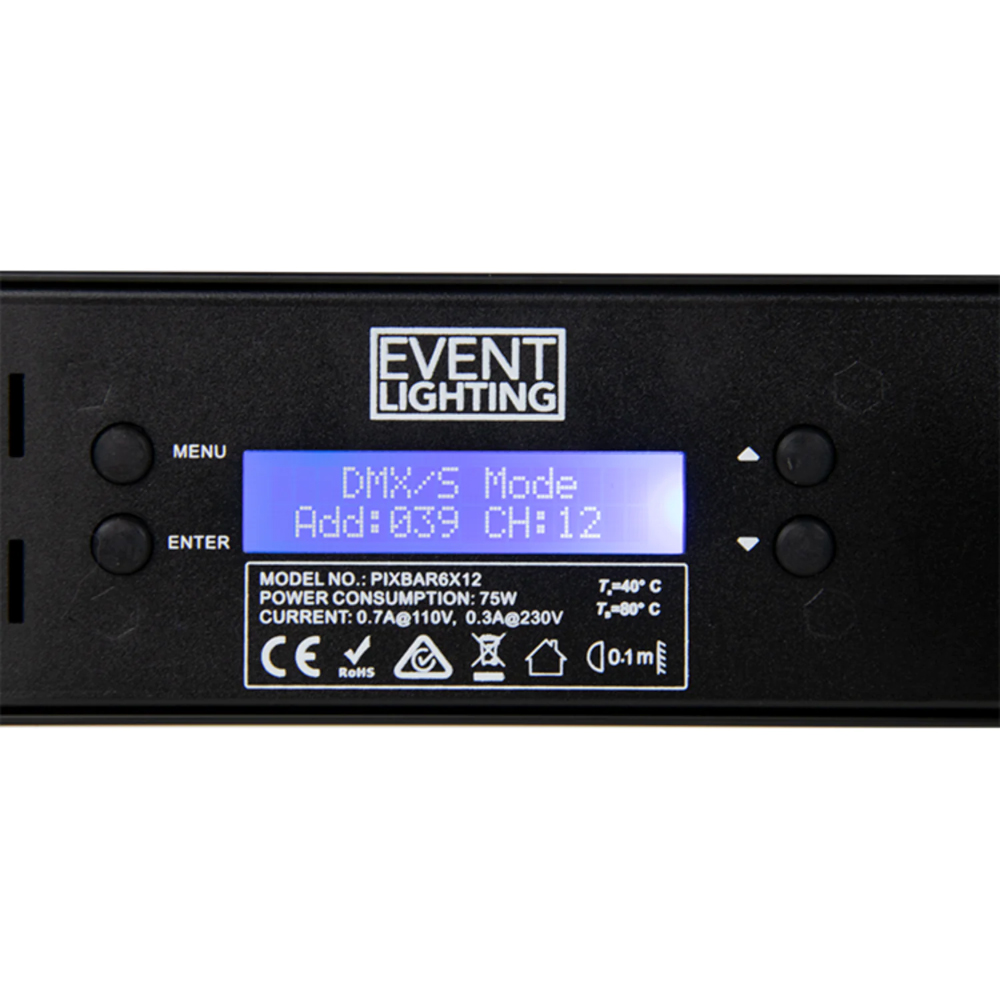

Display: 4-button LCD control panel
Control Protocol: DMX512
DMX Channels: 3 / 4 / 6 / 8 / 12 / 36 / 38
Control Interface: 5-pin XLR
Software Upgrade via DMX: Yes
Housing

Housing Materials: Aluminium, matte black finish
Cooling: Fanless Cooling

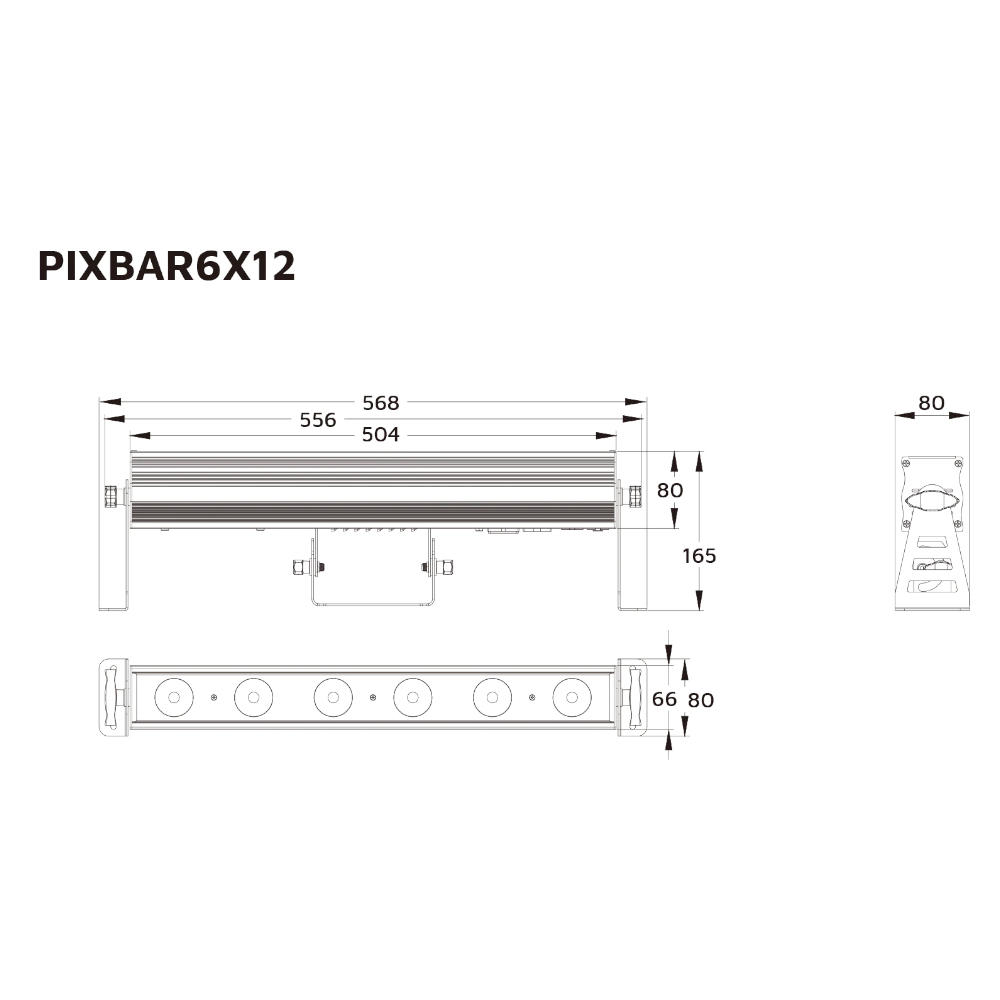

Dimension: 568 x 165 x 80 mm
Net Weight: 2.6 kg

Warranty: 3 years

For more information please visit the manufacturer’s website.
