Description

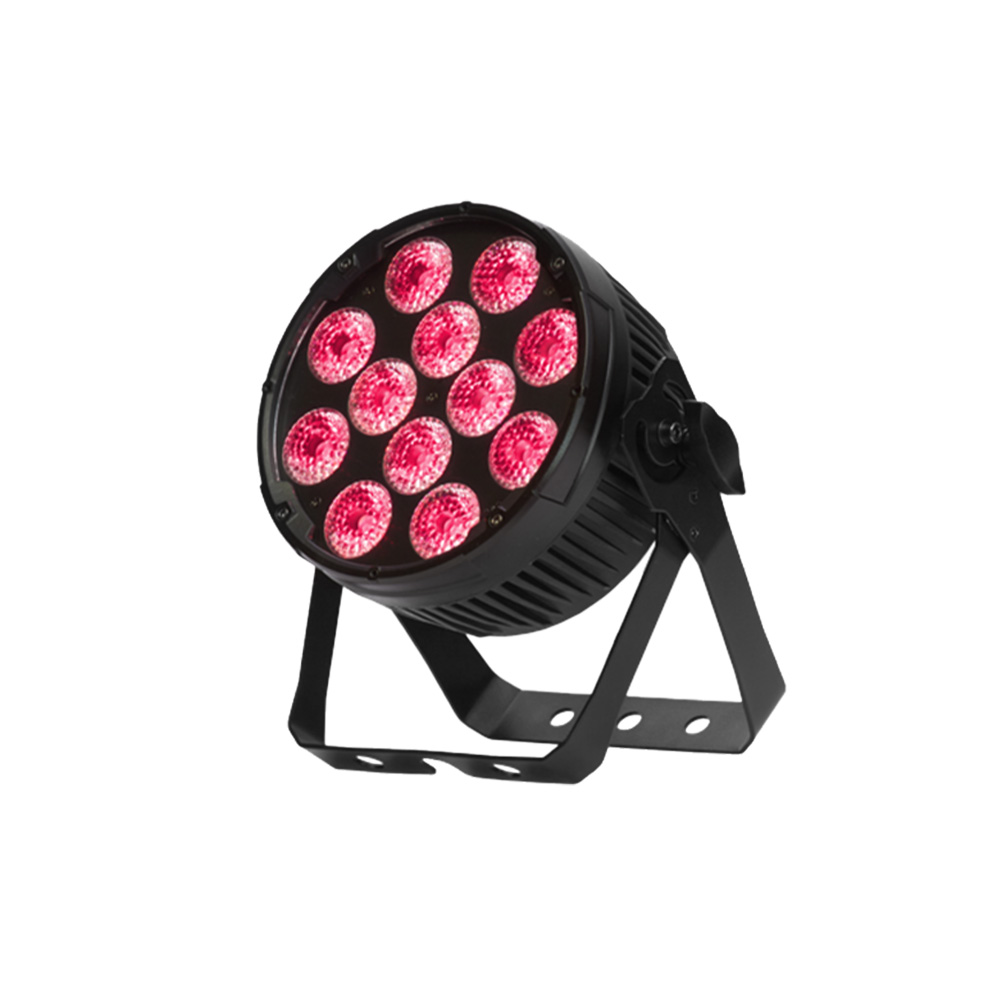

PAR12X12 is a versatile 6-in-1 fixture in a tough die cast aluminium housing.

Photometrics

• Light Source: 12x 12W RGBWAU LEDs
• Beam Angle: 30° (optional: 55° )
• Output: 3,150 lux @ 2.0 m RGBWAU full on
• PWM: 2,940 Hz
• LED Life: 50,000 hours

Effects

• Dimming: 8-bit Dimming Control / 4 x 16-bit Dimming Curves
• Strobe: 1~30 Hz

Power

• Input Voltage: 100V~240 V AC, 50/60Hz, 120 W
• Power Connection: Neutrik® powerCON in/out

Control

• Operational Modes: DMX, manual, auto, sound active, master/slave, multi-fixture chase
• Display: 4-button LCD control panel
• DMX Protocol: DMX512
• DMX Channel Mode: 2 / 3 / 6 / 8 / 12
• DMX Interface: 3-pin XLR (optional: 5-pin XLR)
• Software Upgrade via DMX: Yes

Housing

• Housing Materials: Die-cast aluminium, matte black finish
• Cooling: Fanless Cooling

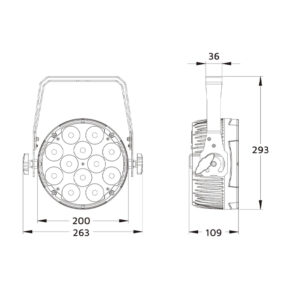

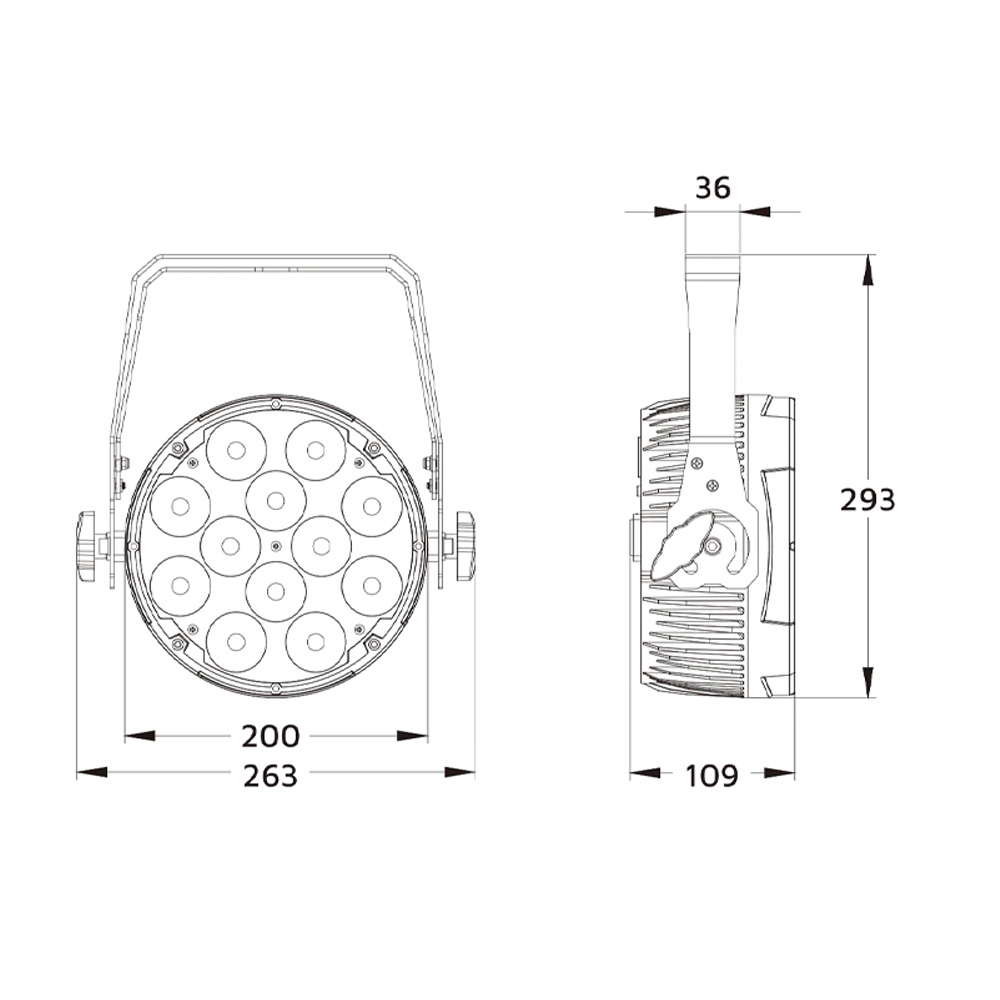

• Dimension: 263 x 293 x 109 mm
• Net Weight: 3.2 kg
