Description

The DIM4 is a dimming pack with four output channels, each of which can be loaded up to 3A.
The DIM4 can be controlled using its built-in chaser and sound control functions, or by using DMX.
Each channel can be assigned as a dimmer or a switch.

Power:
Input Voltage: 230V AC, 50 Hz
Fuse: 8A/250V
Fuse Per Channel: 3A/250V
Channel Output: Max. of 3A per channel, maximum of 8A total across all 4 channels

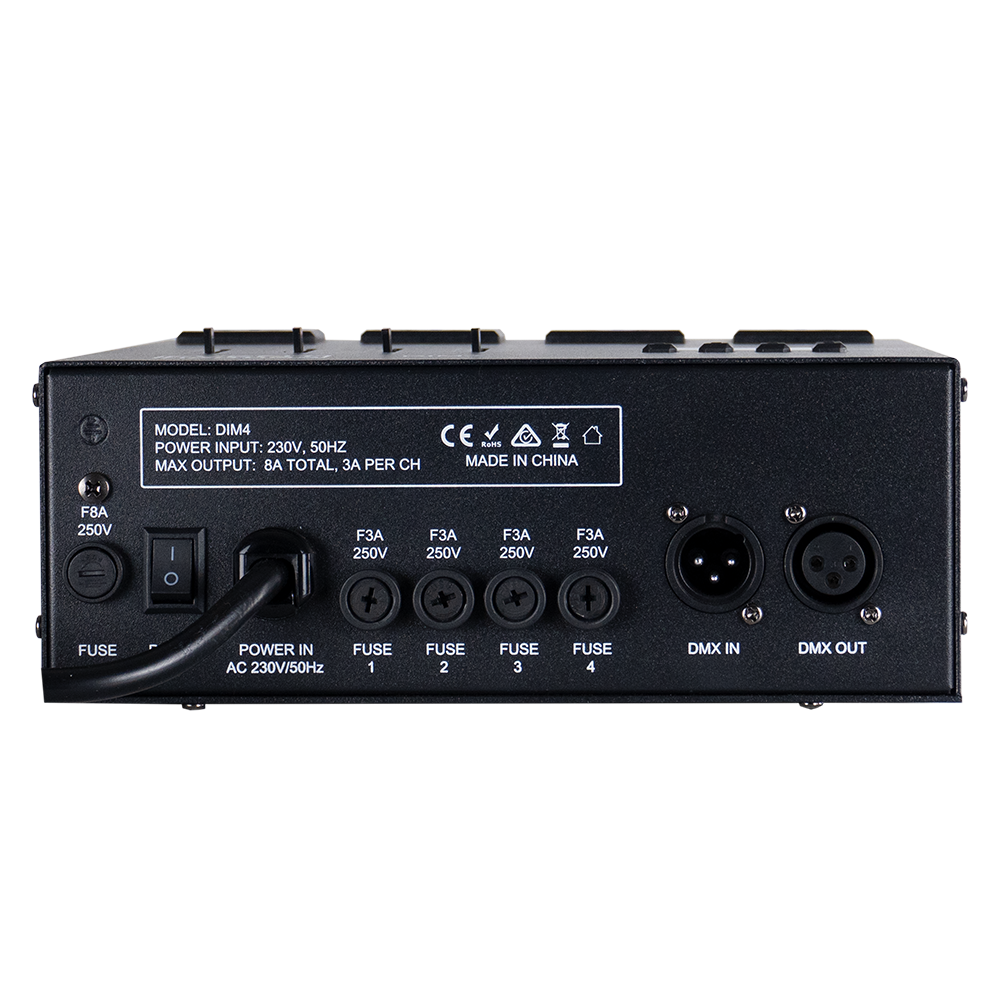

Connections: 4x power sockets

Control:
Operation modes: DMX512, stand alone, sound active, local control
DMX channels: 1/2/4
Interface: 3-pin XLR in/out
Mode: Dimmer or Switch

Housing:
Dimensions: 220*82*275 mm
Dimensions: 220*82*275 mm
Weight: 3.5 kg
