Description

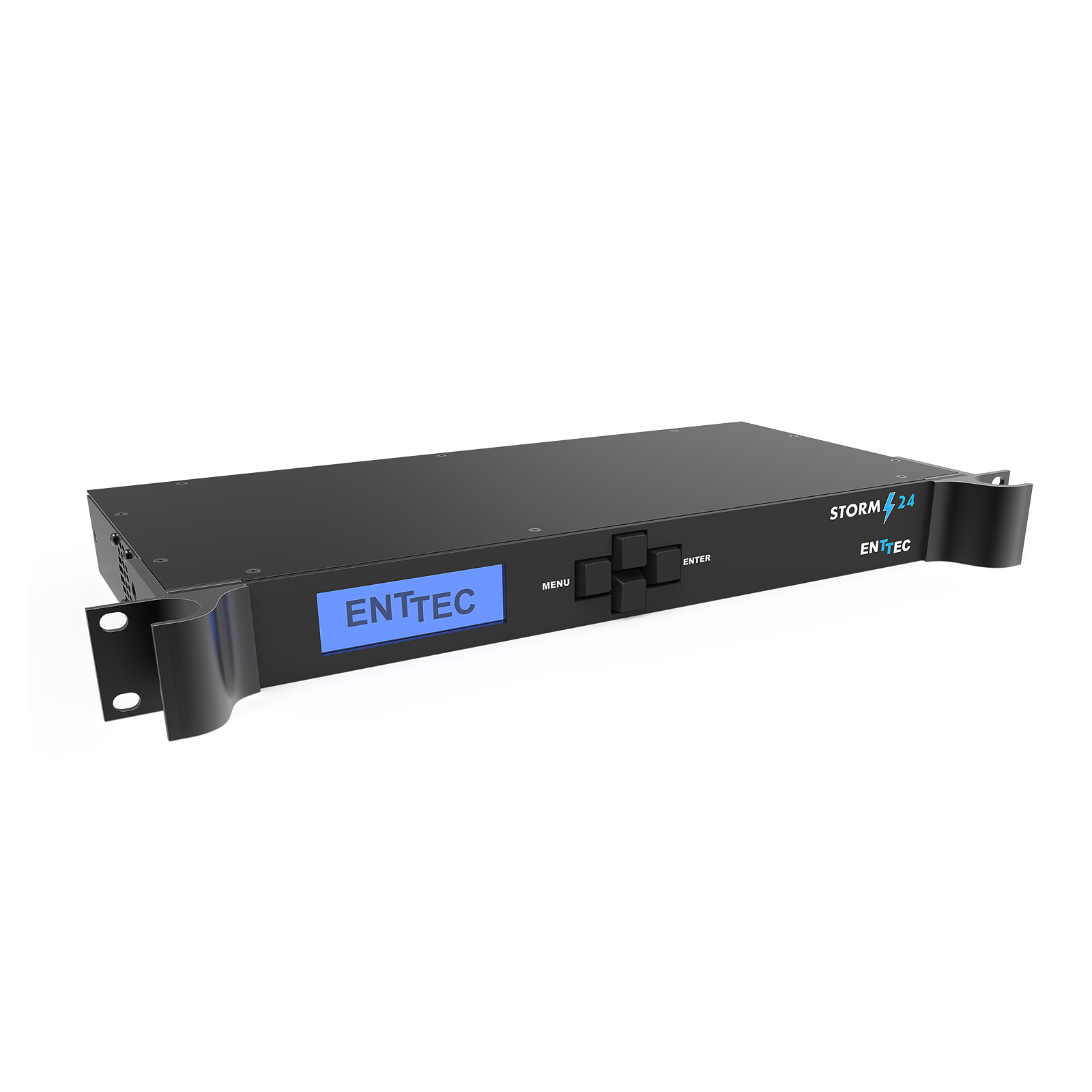

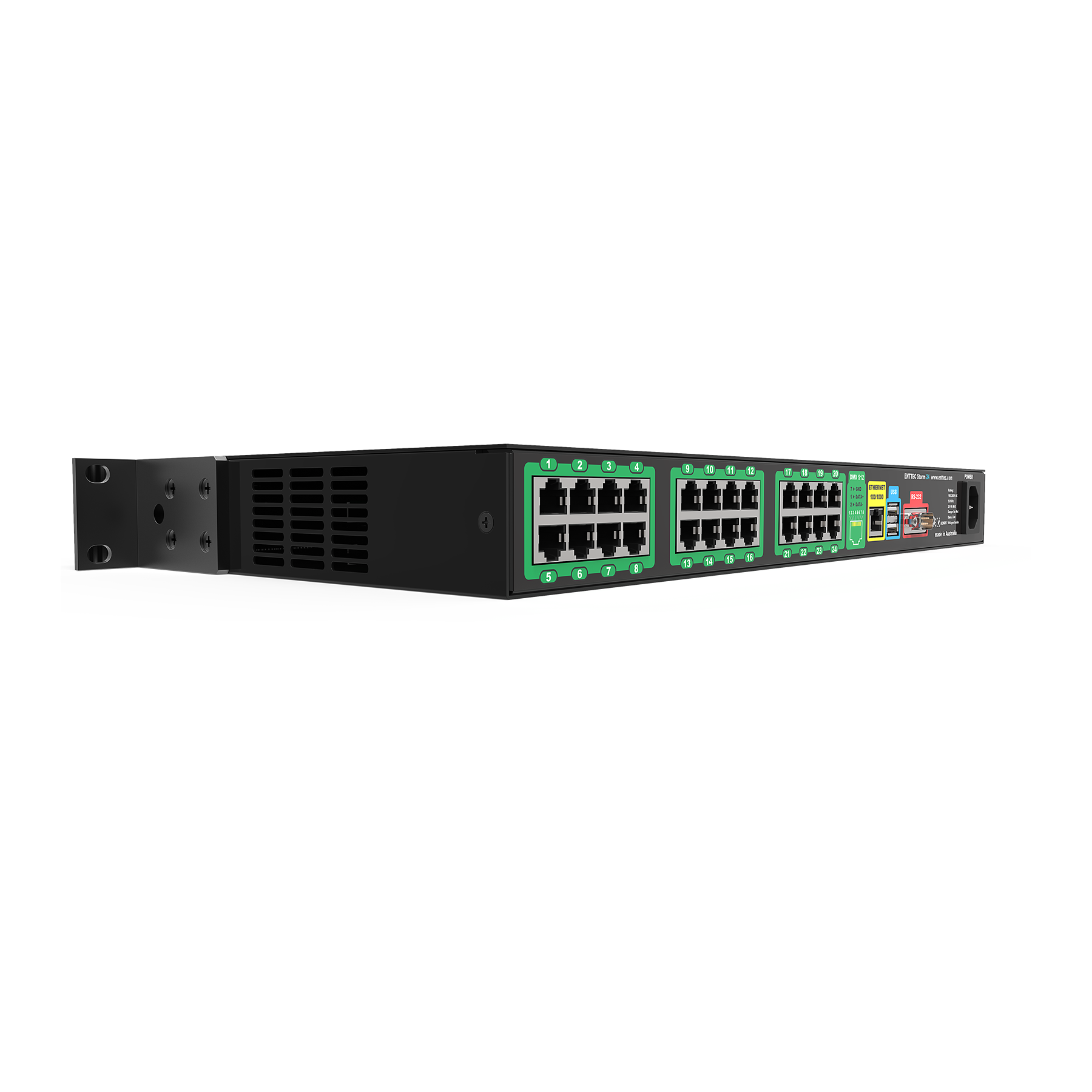

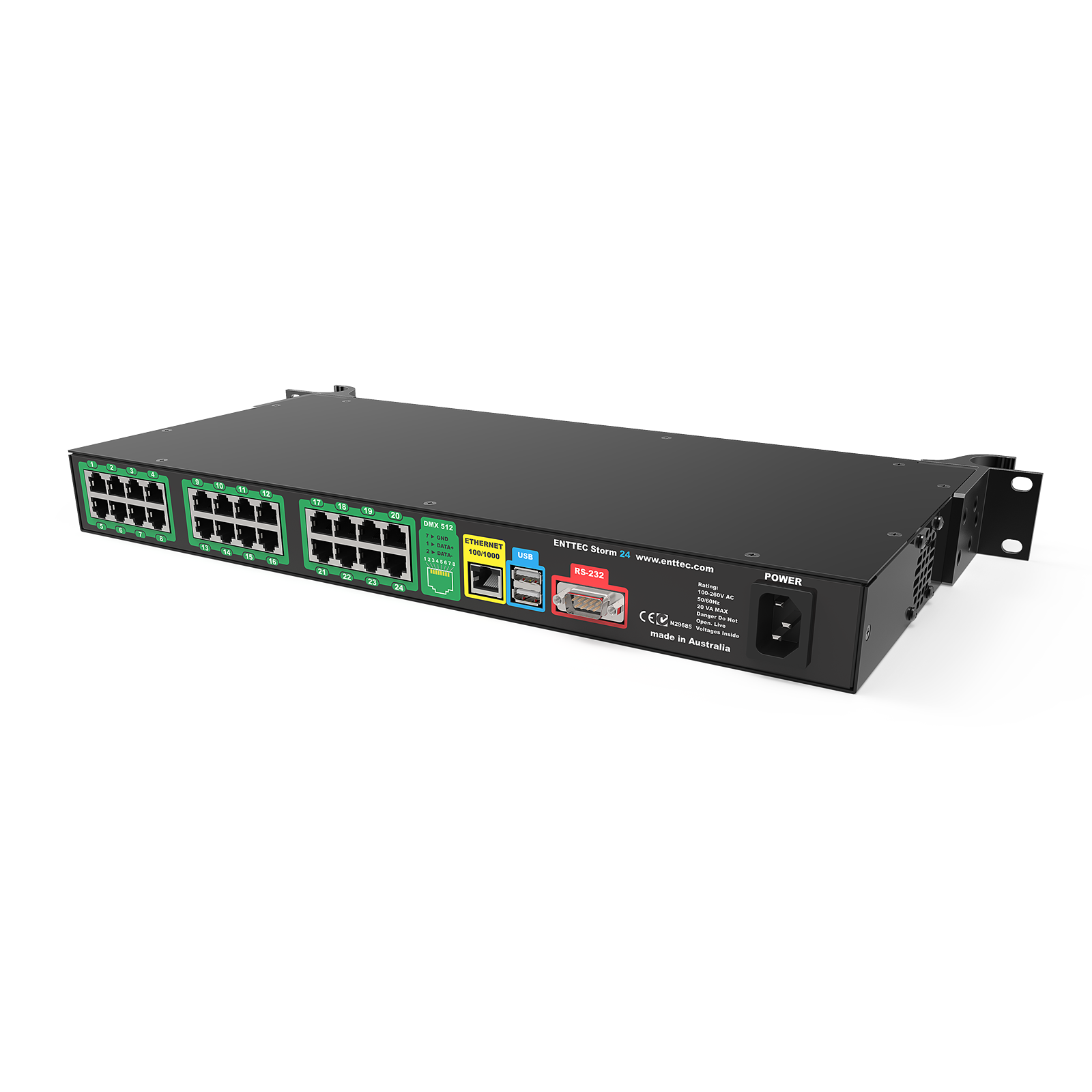

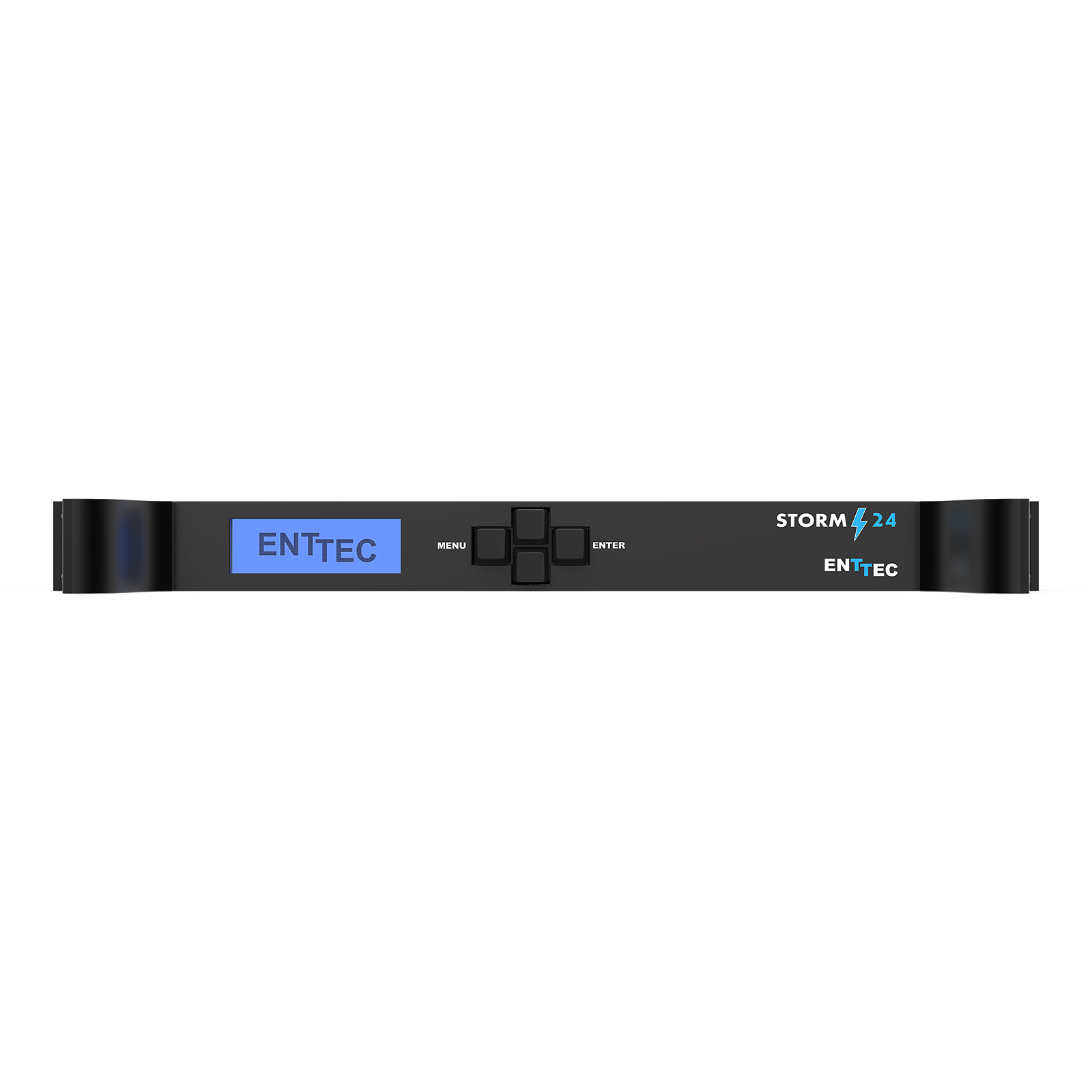

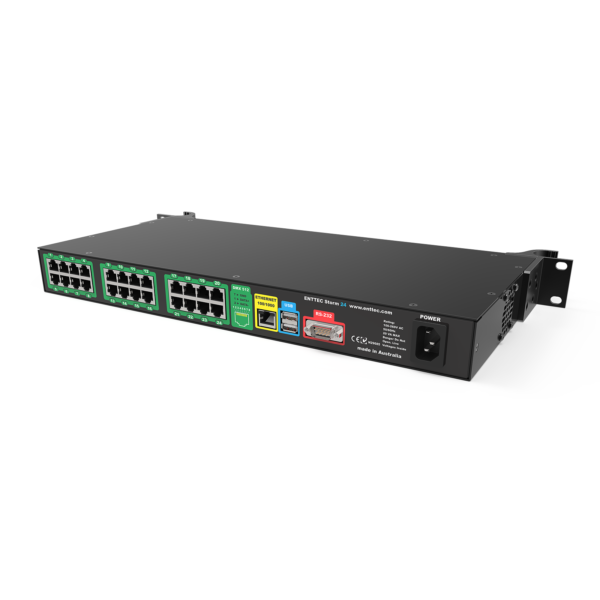

Giving you optimal performance at an affordable price point, Storm 24 handles multiple protocols with speed and precision. The rear of the unit features 24 DMX outputs in an RJ45 form factor. This means it’s installer-friendly, cost-effective, and most importantly, perfect for any LED pixel mapped project or large traditional lighting rig. With a Gigabit Ethernet connection and rugged 1u enclosure, Storm 24 handles Art-Net, sACN and ESP with ease. In addition, using ultra-fast memory and logic, its Sync Mode matches all 24 DMX outputs to within 100 microseconds of each other. This means no more image ghosting or tearing of your content. Meanwhile, the Storm 24’s web interface features an intuitive drag and drop functionality. Easily route and mix Ethernet input protocols to physical DMX and send to different areas of your installation. Furthermore, the inbuilt DMX generator allows channels to be set to different levels for testing without the need for a DMX source. Put simply, no other Ethernet-to-DMX converter on the market offers this level of performance.
Outstanding Value
With a groundbreaking $65 per port system cost, DMX conversion is no longer a high-cost item in your pixel mapping budget. RJ45 outputs also lower cabling costs by using standard crimp connectors instead of more expensive XLR connectors.
Amazing Performance
Using state of the art FPGA programmable Logic, ultra-fast DDR memory and Gigabit ethernet, all 24 DMX outputs are synchronized within 100 micro seconds, when using Sync mode. No more image ghosting or jumpy updates of your content. No other device offers this level of performance.
Easy Cabling
Easier and lower cabling costs using standard RJ45 outputs. Although XLR connectors are widely used in the entertainment world, when your project isn’t travelling the world on a regular basis, RJ45s connectors offer the best price/performance ratio. Using standard shielded CAT5 cable to connect your whole system also helps keep the cost per port down. We use the standard ANSI E1.27-2 specified RJ45 pinout to make sure most equipment connections will be simple.
Multi-Protocol Support
Art-Net 1
Art-Net 2
Art-Net 3
sACN
KiNET
ESP
Input/Output
24 DMX 512 output ports on RJ45
1 Gigabit Ethernet port
Jumbo Frame support
1 RS232 input for profile selection via serial command. Note: RS232 is not supported by RevC devices produced after April 2020.
