Description

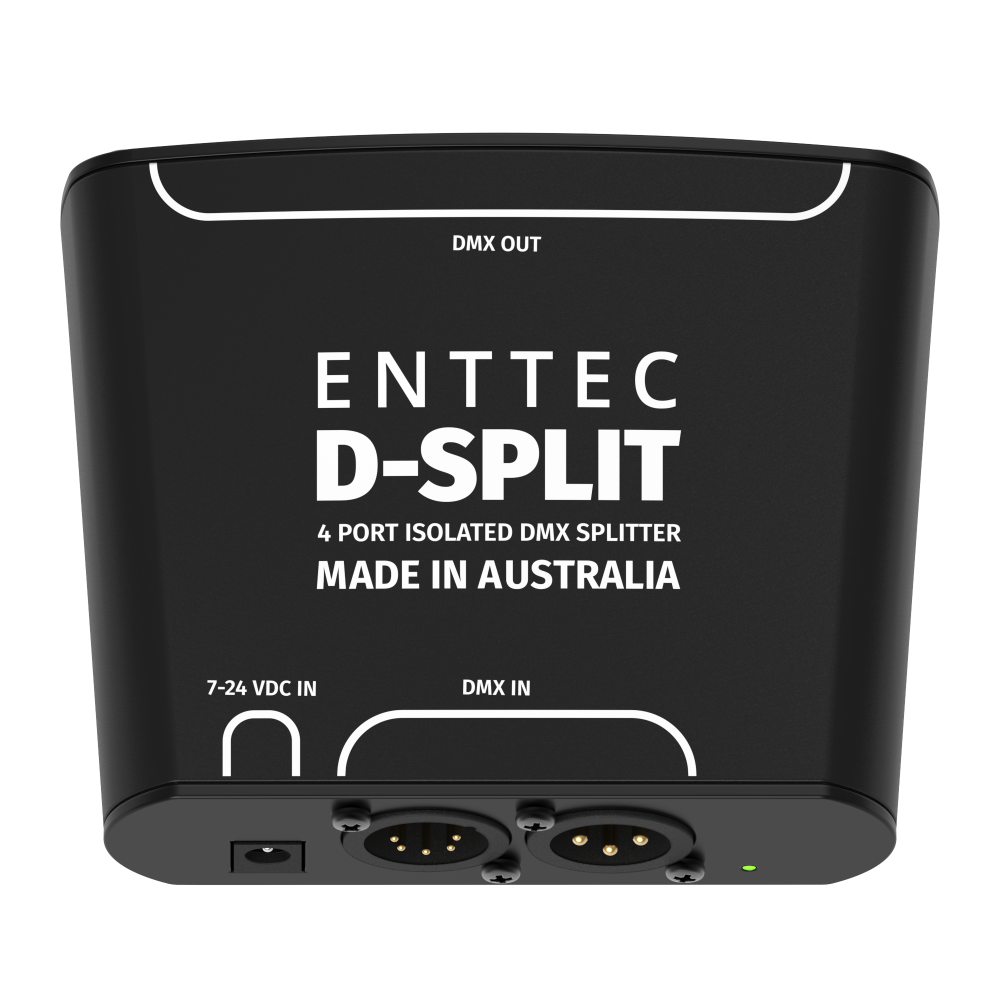

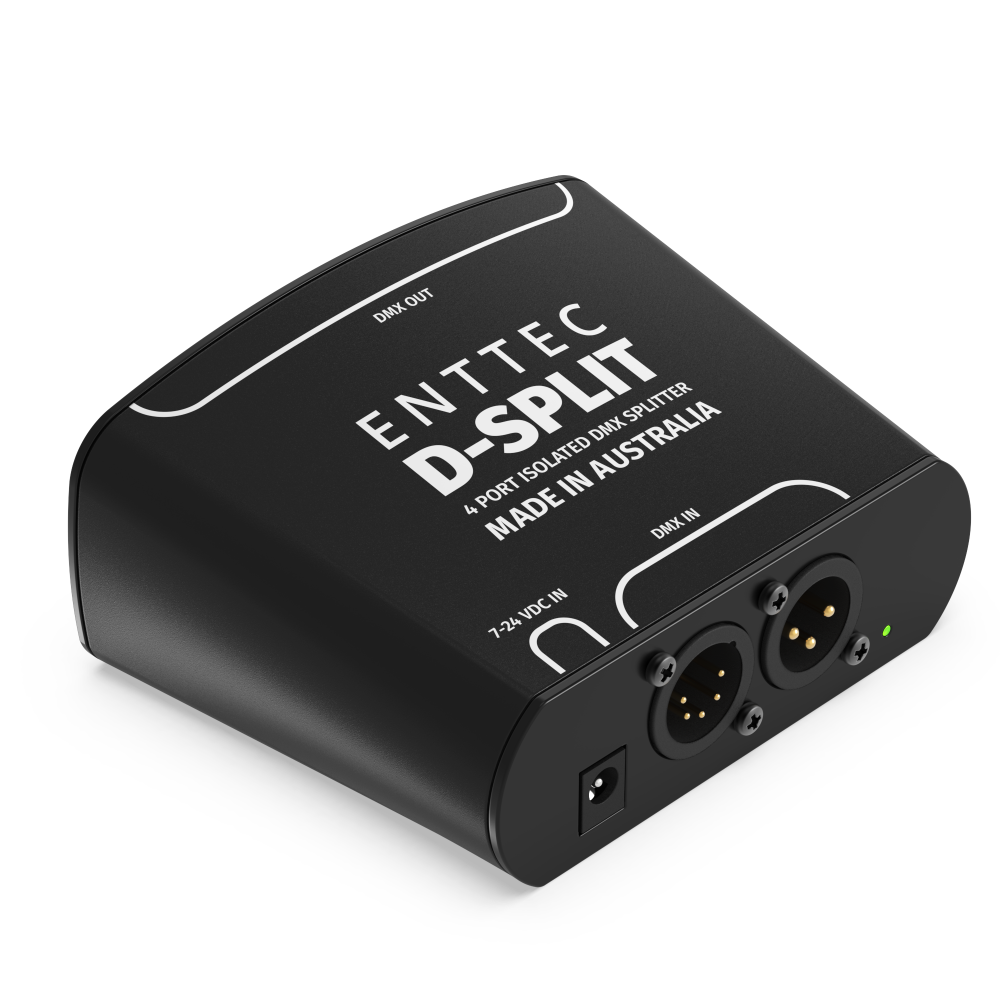

The D-SPLIT by Enttec is an optical isolator/splitter for DMX512. Its purpose is to allow the user more flexibility in connecting their DMX controlled devices. Instead of having to make them all fit within a single daisy chain, each of the four outputs from the D-SPLIT can be the start of its own chain, and up to 32 D-SPLITs can be daisy chained together if needed.
Features:
Lightweight and portable
1 x 3 pin DMX input and 1 x 5 pin DMX input

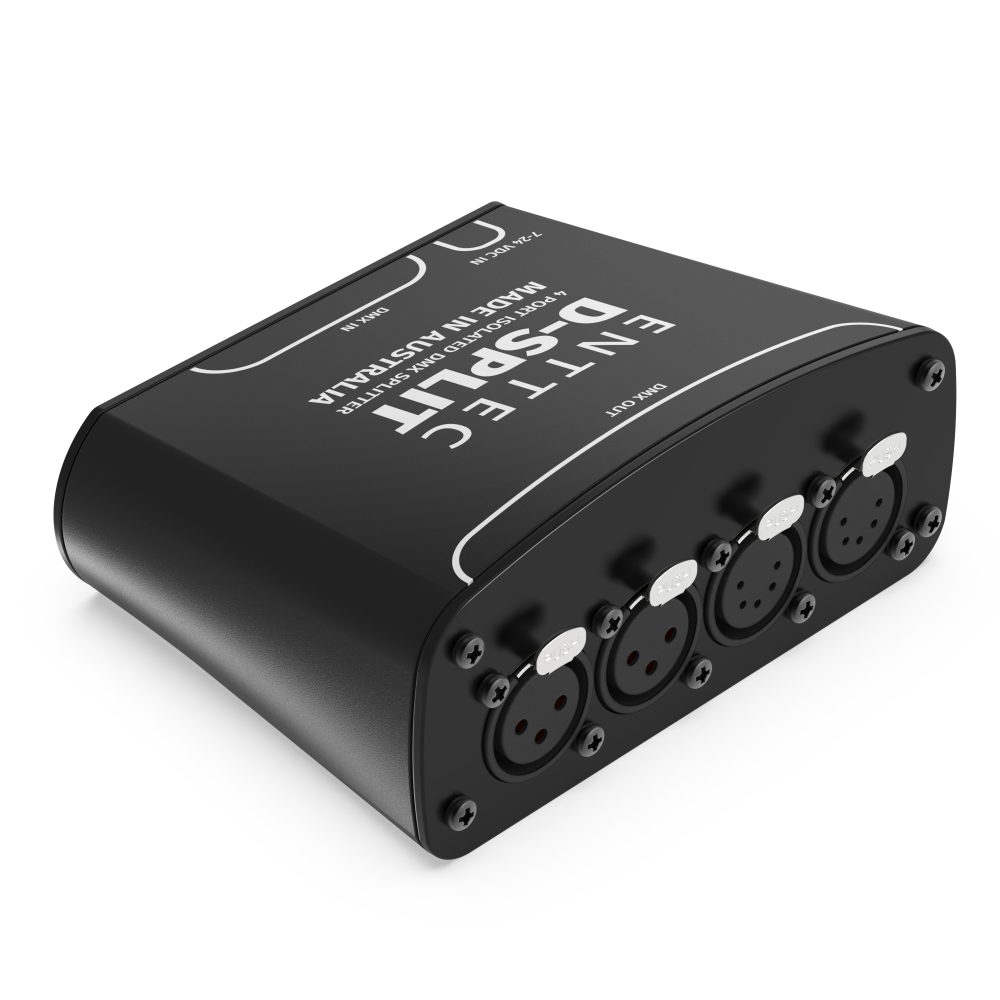

2 x 3 pin DMX outputs and 2 x 5 pin DMX outputs all optically isolated (protects against up to 1000V of stray voltage)
DMX512-1990 compatible
Control up to 512 channels
LED indicators show Power and DMX output
External 7V – 24V Power Supply

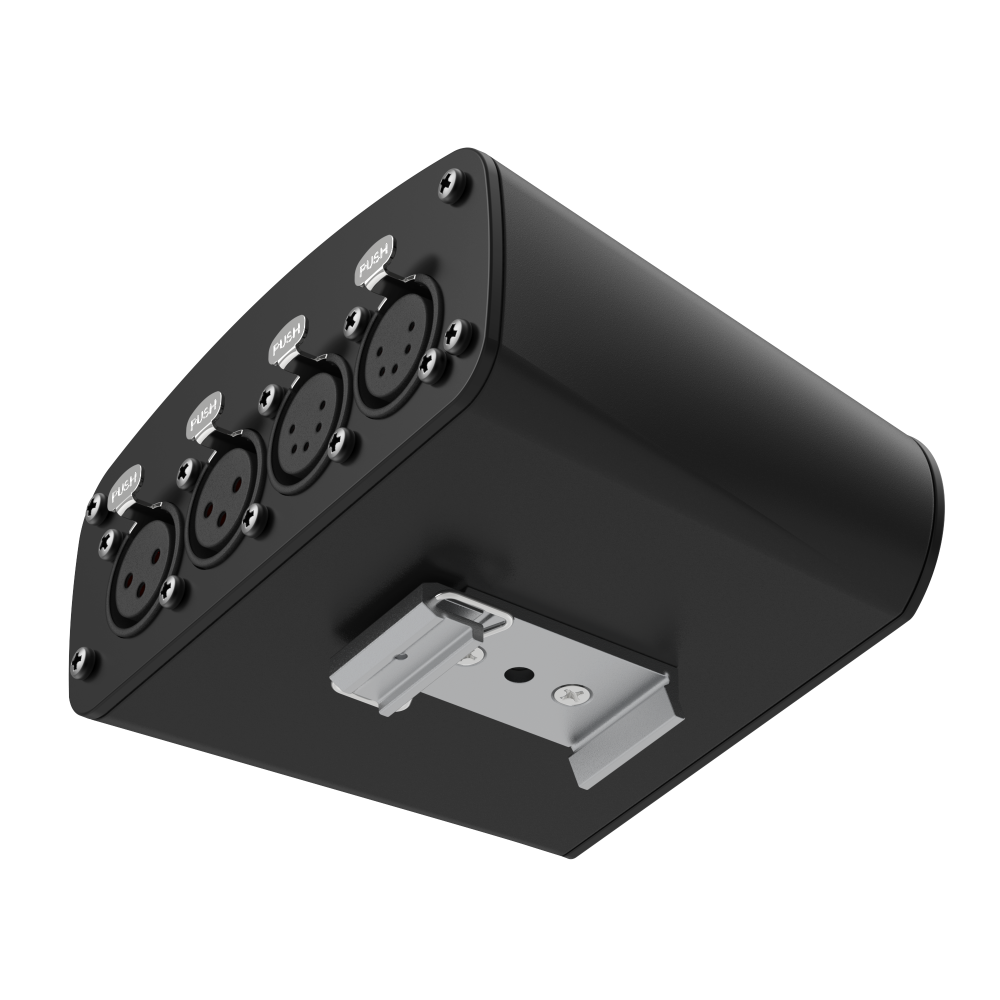

Includes TS35 Din Rail
Black case for use in dark environments
Applications
Small Theatres
Churches
Schools
Clubs etc…..
Functional Specifications:

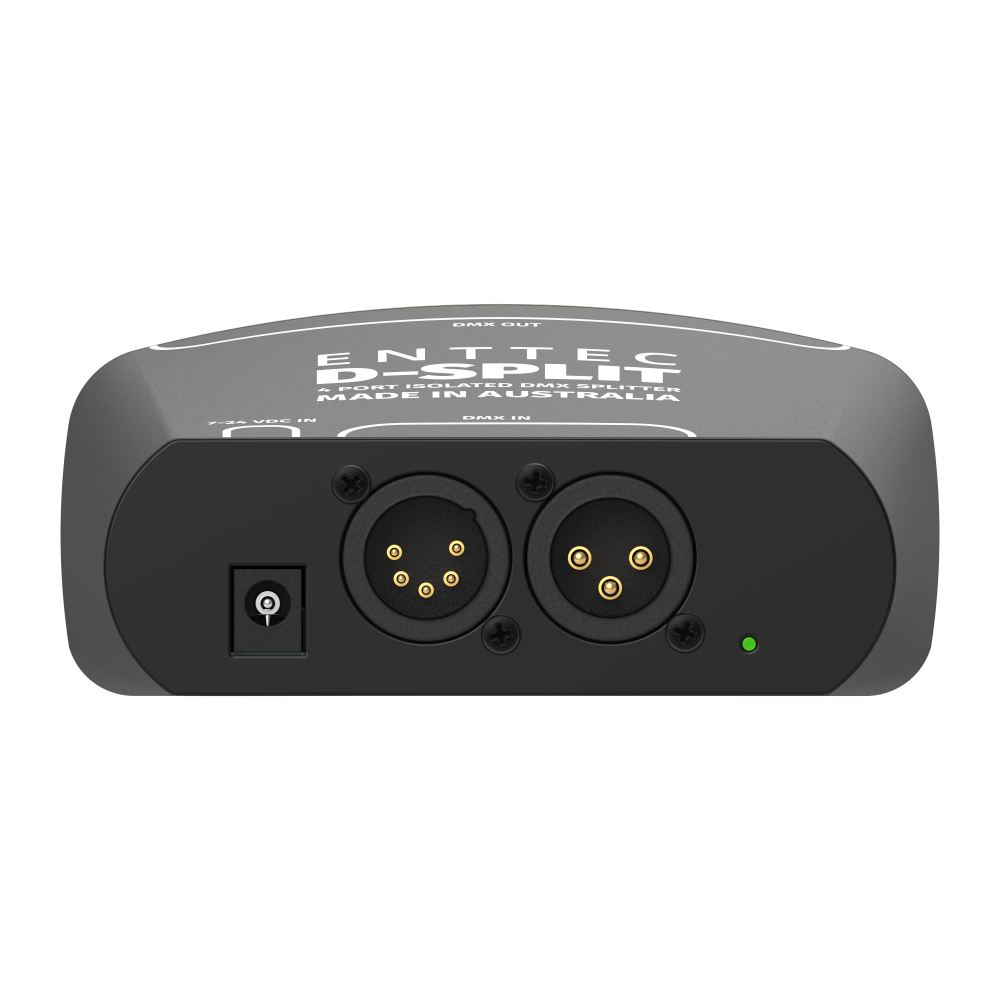

1 x 3 pin DMX input and 1 x 5 pin DMX input – these are combined into 1 input – but by creating a custom female to female DMX lead, allow you to daisy chain up to 32 D-Splits for large systems.

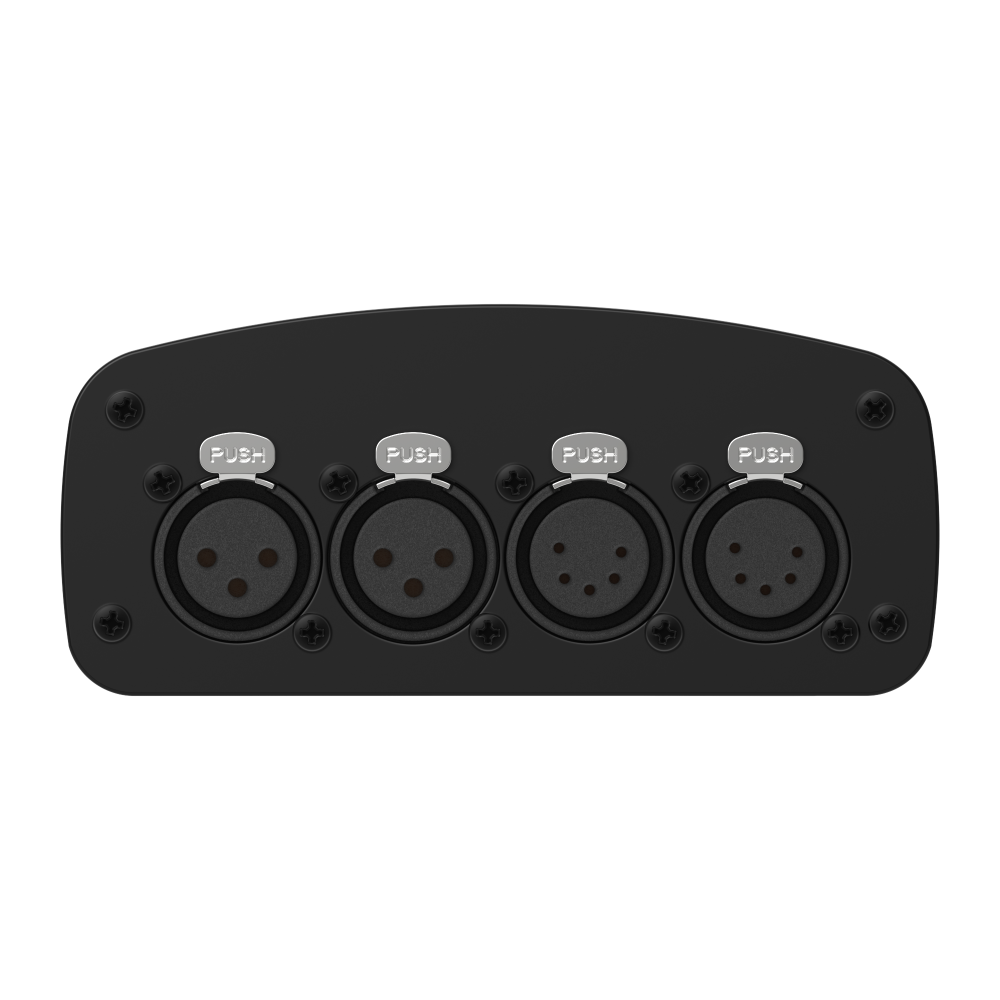

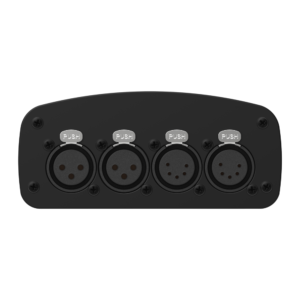

DMX Output – Two x 5 Pin XLR and two x 3 Pin XLR. All four may be used simultaneously, or any combination.
1000V isolation between input and output, and between any individual output receptacles. This is to protect your console from surges on DMX line, and also keep any stray voltage from crossing to other DMX chains
