Description

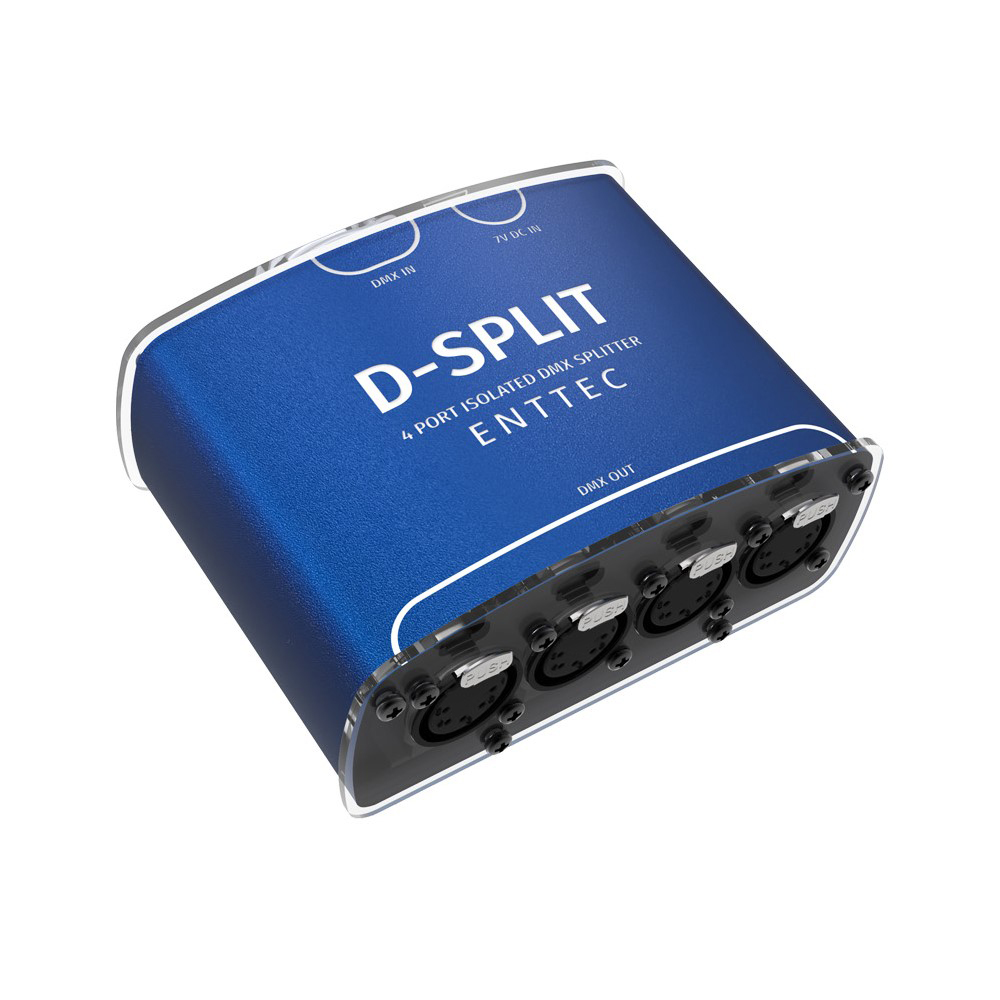

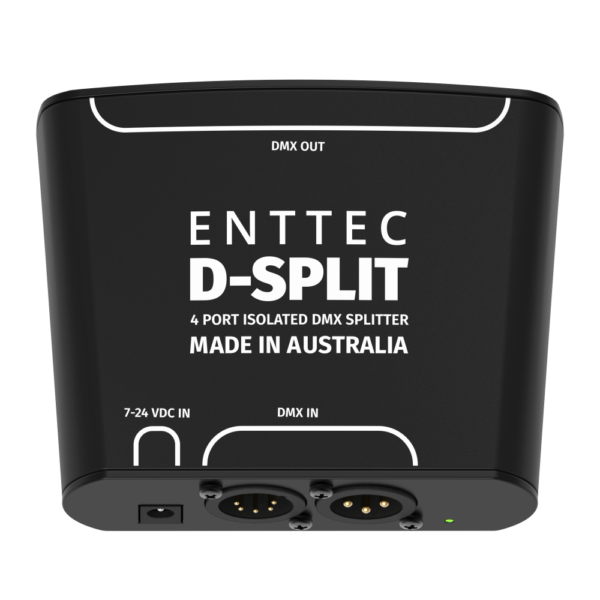

D-SPLIT (5 PIN) is an optical isolator/splitter for DMX512. Its purpose is to allow the user more flexibility in connecting their DMX controlled devices. Instead of having to make them all fit within a single daisy chain, each of the four outputs from the D-SPLIT can be the start of its own chain, and multiple D-SPLITs can be linked together if needed.
Features
Lightweight and portable
1 input, 4 outputs, all optically isolated (protects against up to 1000V of stray voltage)
DMX512-1990 compatible
Control up to 512 channels
LED indicators show Power

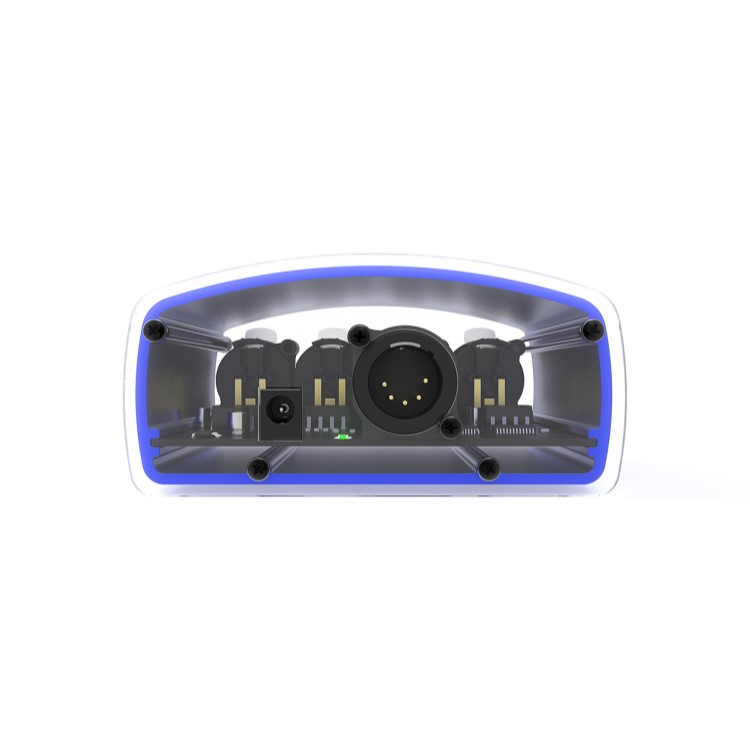

External 7V Power Supply
Has four 5 pin outputs
Applications
SMALL THEATRES
MUSICIANS/BANDS
DJS
CHURCHES
Functional Specs

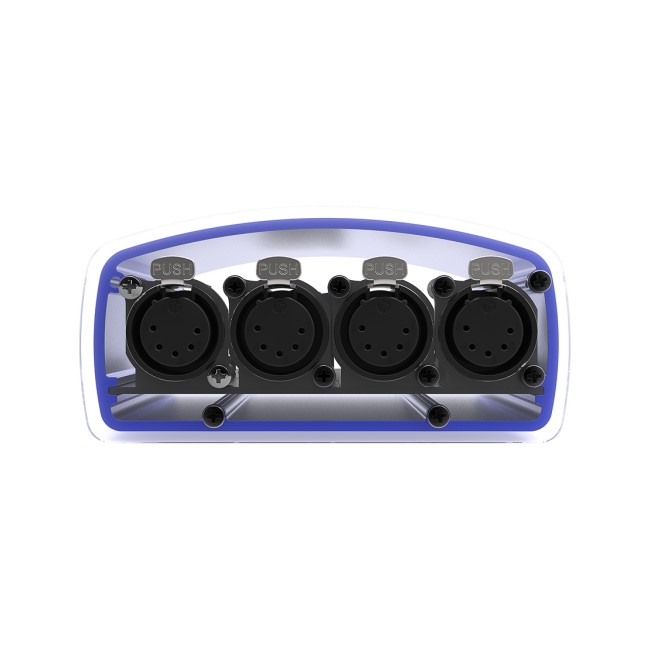

DMX Output – 5 Pin XLR. All four may be used simultaneously, or any combination.
1000V isolation between input and output, and between any individual output receptacles. This is to protect your console from surges on DMX line, and also keep any stray voltage from crossing to other DMX chains.
