Description

4-Channel, Installation-Grade, Constant Voltage LED dimmer

Robust and reliable, ENTTEC’s CVC4 is the ultimate high-precision, constant voltage (CV) LED dimmer. Prepare to take your CV projects to the next level!

Capable of controlling up to 20A across its four 5A channels at either a 16- or 8-bit resolution, the CVC4’s ultra-smooth dimming, auto-addressing functionality and simple mode selection make it one of the most comprehensive yet versatile LED dimmers imaginable.
With its rugged, black ABS body featuring in-built surface-mount tabs, or an attachable TS35 DIN rail adaptor, it’s fast, easy and versatile to install. The CVC4’s solid-state, fanless design also means it’s virtually silent when in operation.
A user-serviceable blade fuse protects against short circuits. It also has the ability to detect temperature and limit the LED output to reduce overheating.
The CVC4 has been engineered to bring the ultimate in installer-friendly flexibility and fast deployment when constructing a constant voltage LED strip project.

FEATURES:
Auto-addressing
16 or 8 bit  RGBW or RGB configurable
Safety fuse
Overtemperature protection

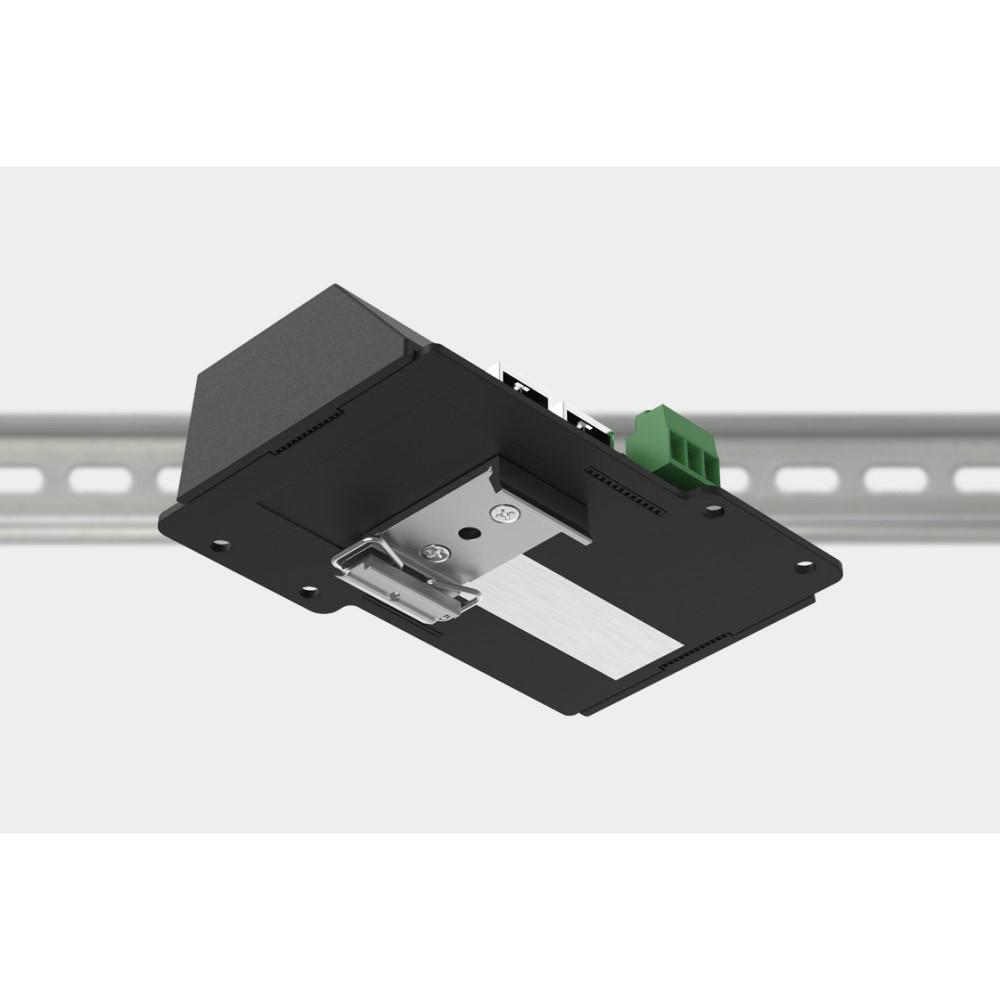

DIN rail mounting (use optional TS35 Din rail Clip

3 year warranty
