Description

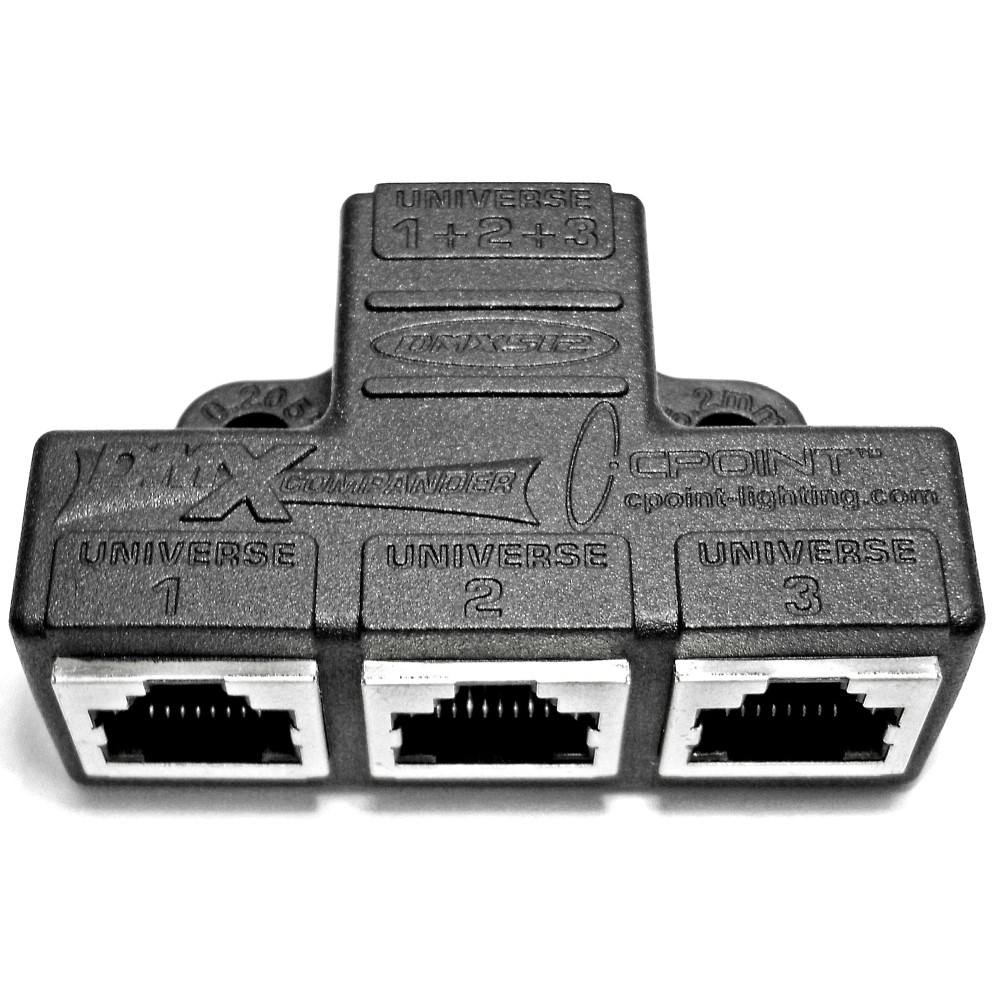

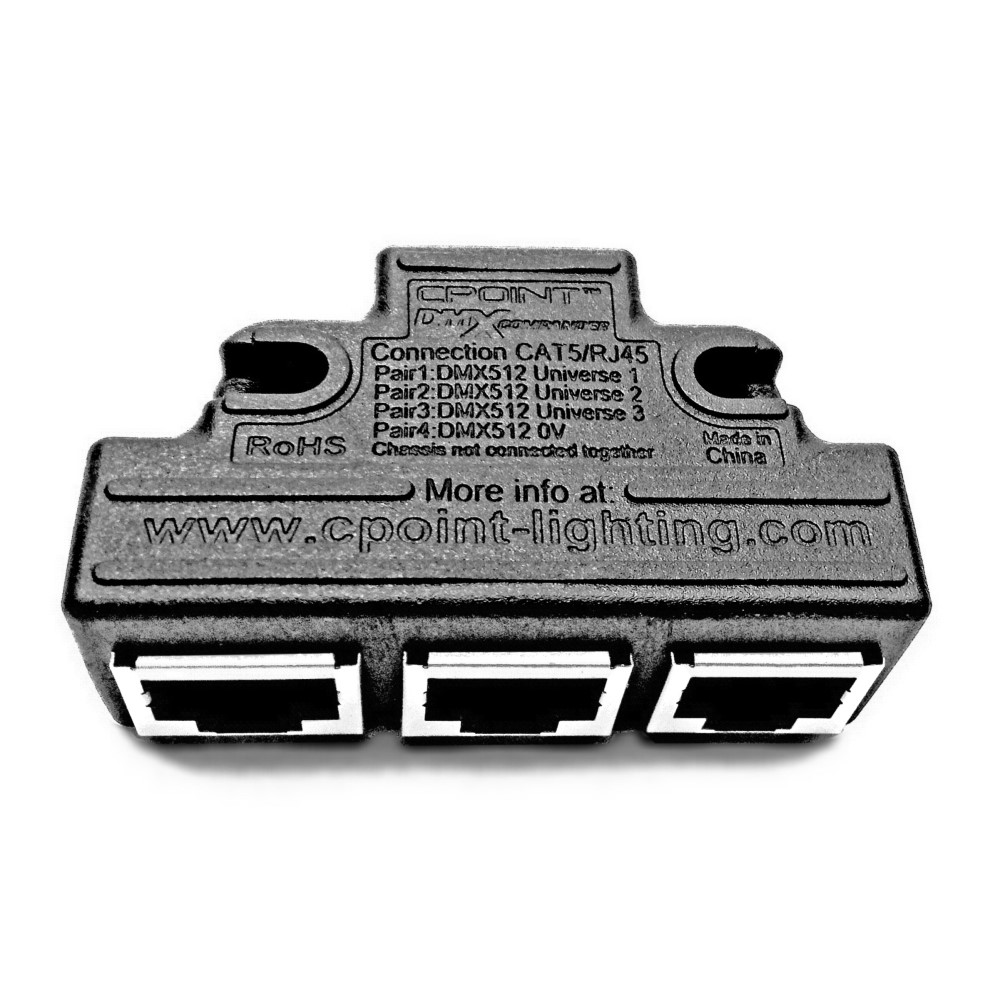

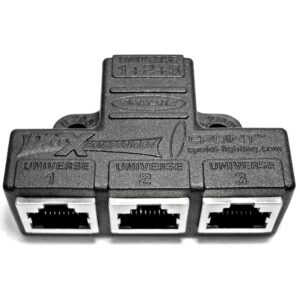

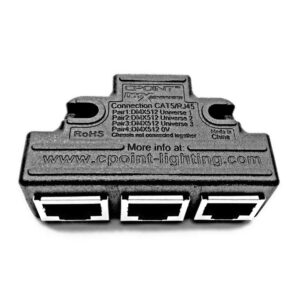

The CPOINTDMXcompander makes it possible to run three DMX512 Universes in one CAT-5 cable. A CAT-5 cable has four data-pairs, one pair is used as the 0V reference and the other three pairs are used for DMX512 Data+ and Data-. Through the three RJ45 connectors on the DMXcompander, three DMX512 Universes are COMpresse? into one CAT-5 cable through the Universe 1+2+3 RJ45 connector. In the other end of the CAT-5 cable another DMXcompander can be used to exPAND the DMX512 Universes again, making them available through the three RJ45 connectors. Together with CAT-5 cables and CPOINTs XLRJ45 adapters, a DMX512 network can be set up very quickly and at a very low cost.

Note: You need a CPOINT DMXcompander on each end of the Cat-5 cable and 6 x CPOINT RJ45 to XLR adaptors to make a complete system.

DMXcompander, Facts & Features:

Three DMX512 Universes (1536 channels) combined into one CAT-5 cable.
RJ45 connectors used for connection with inexpensive CAT-5 cables.
Gold-plated pins on RJ45 connectors.
Sturdy moulded housing.
Mountable on DIN rail.

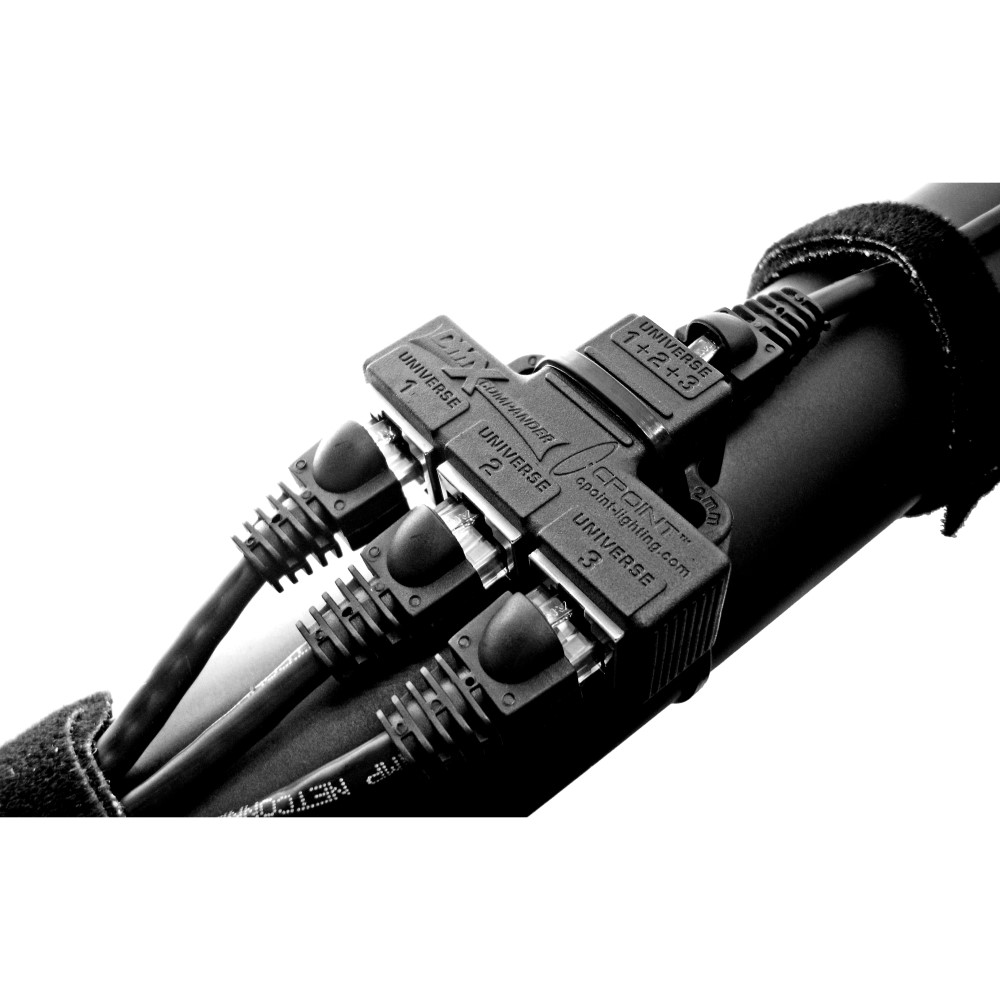

Mountable in lighting-rig.
Use as flexible DMX outlet.
Mountable with 5mm screws or cable-tie.
Weight including packaging, 67g.
Easy to use.
Low cost.
