Description

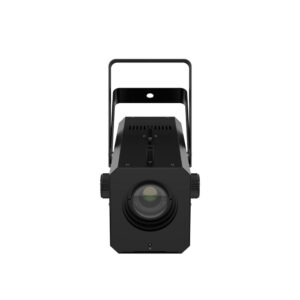

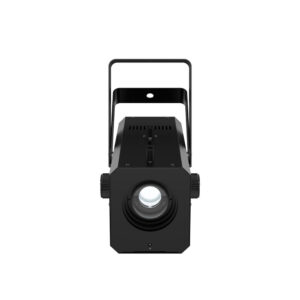

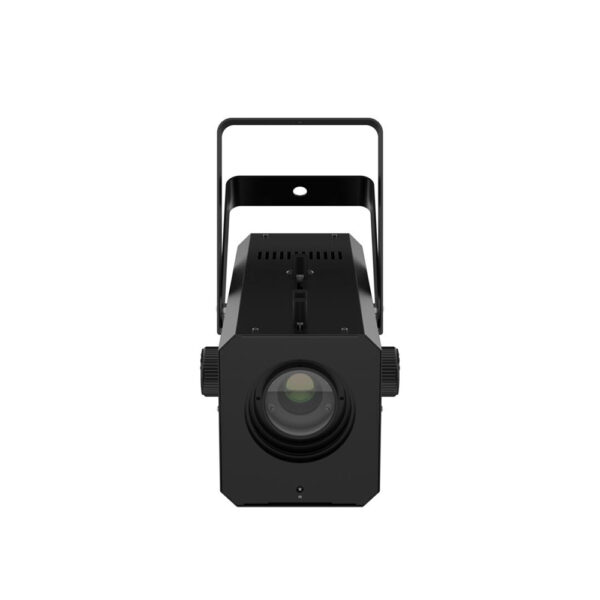

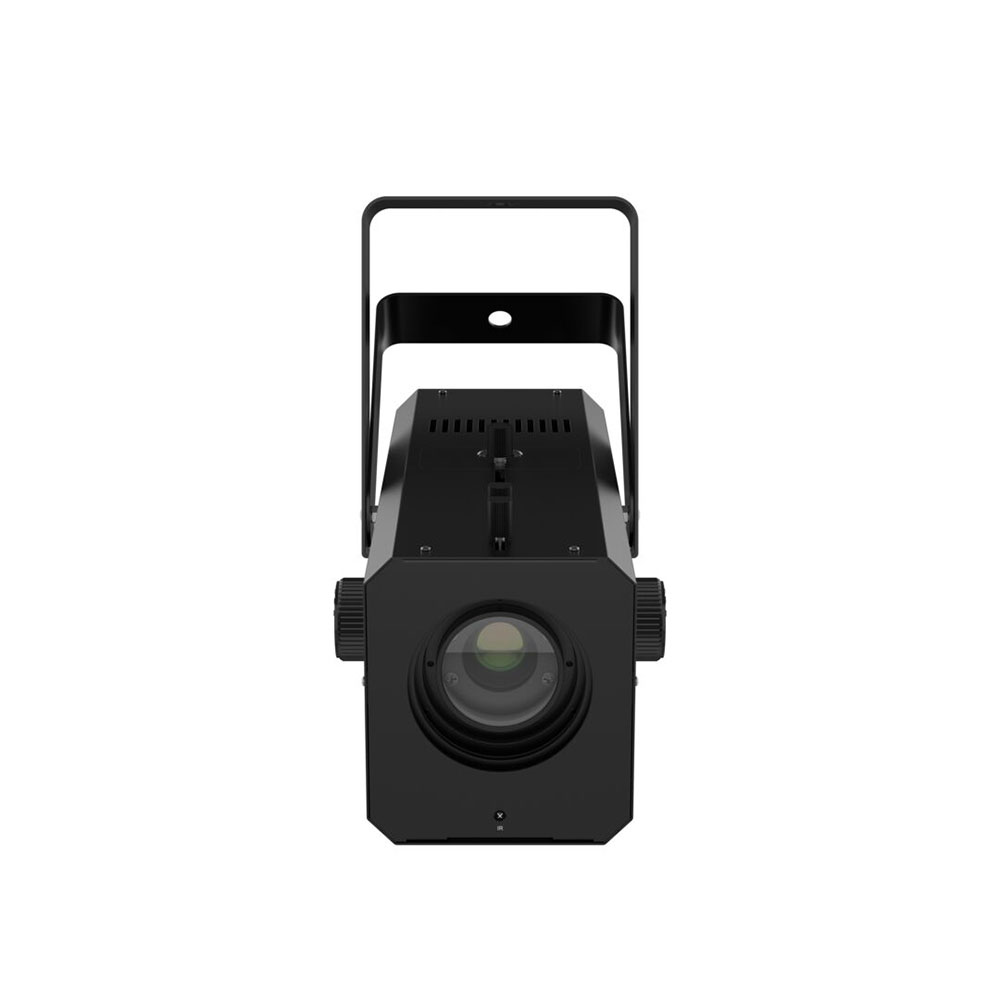

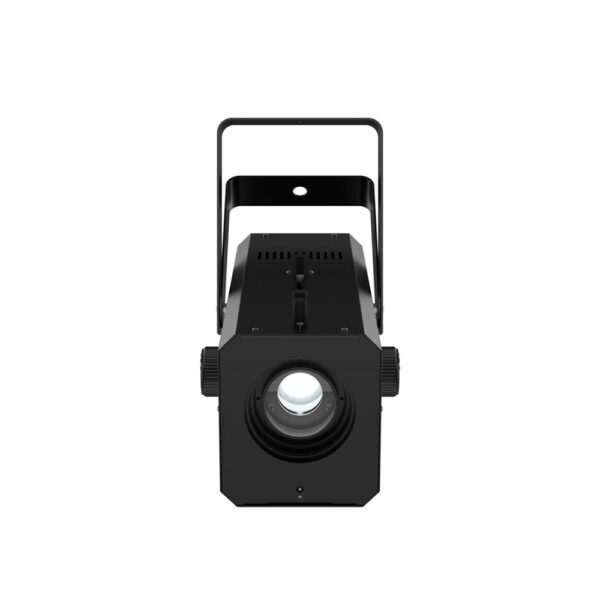

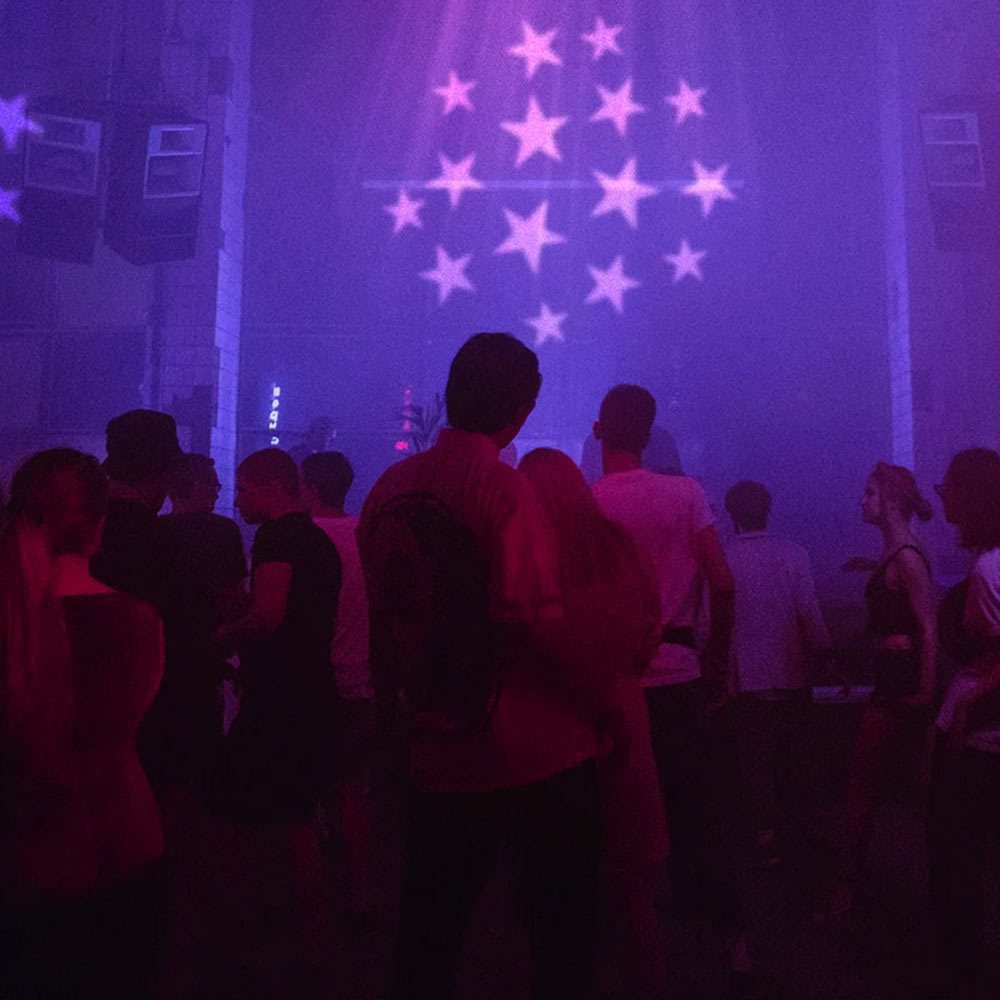

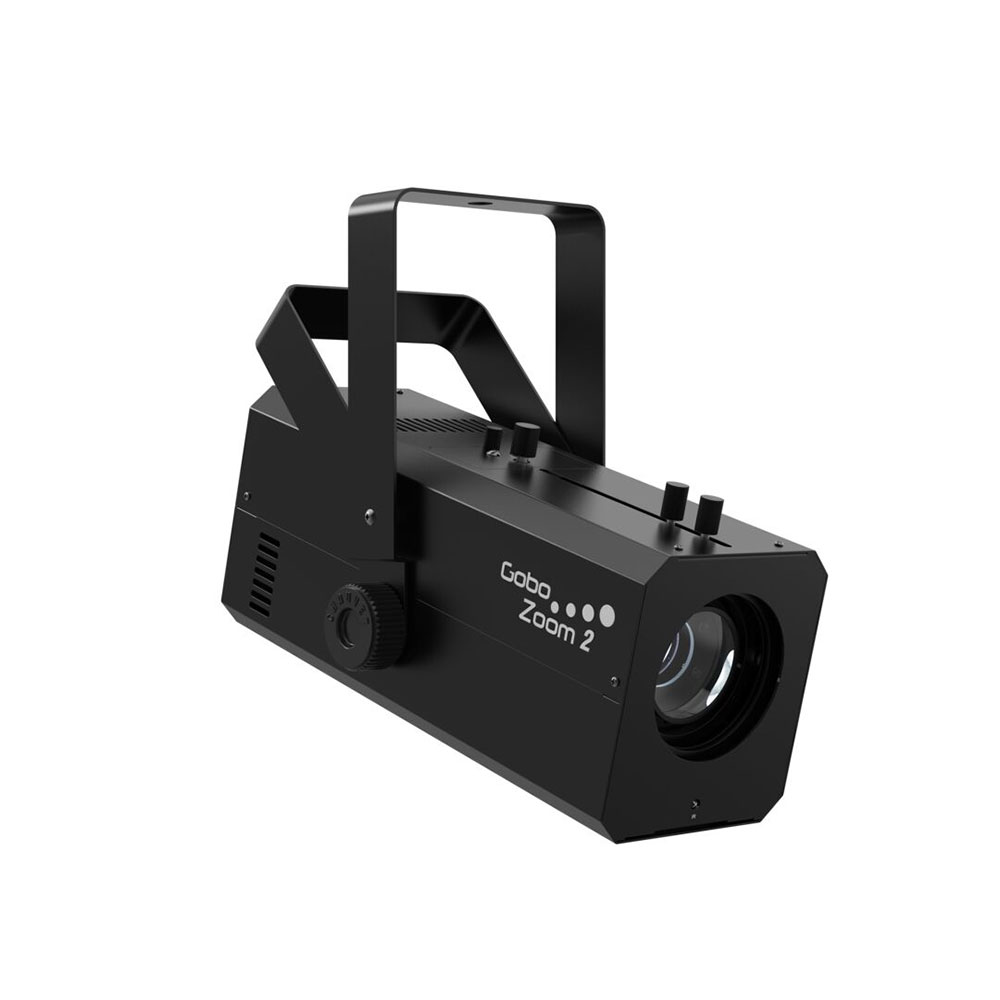

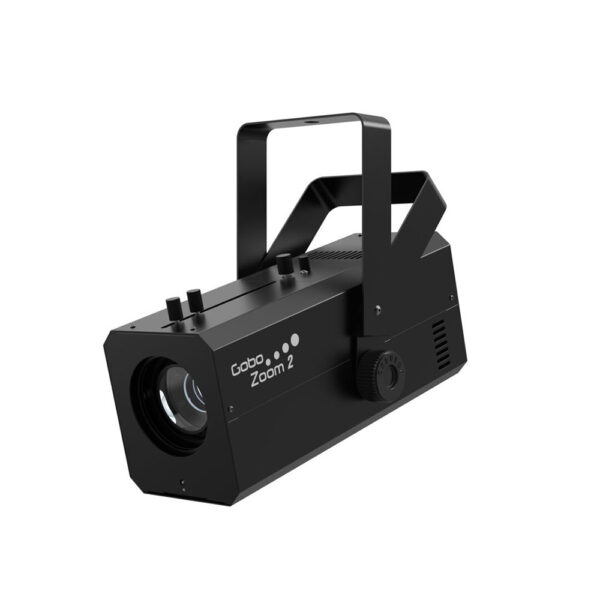

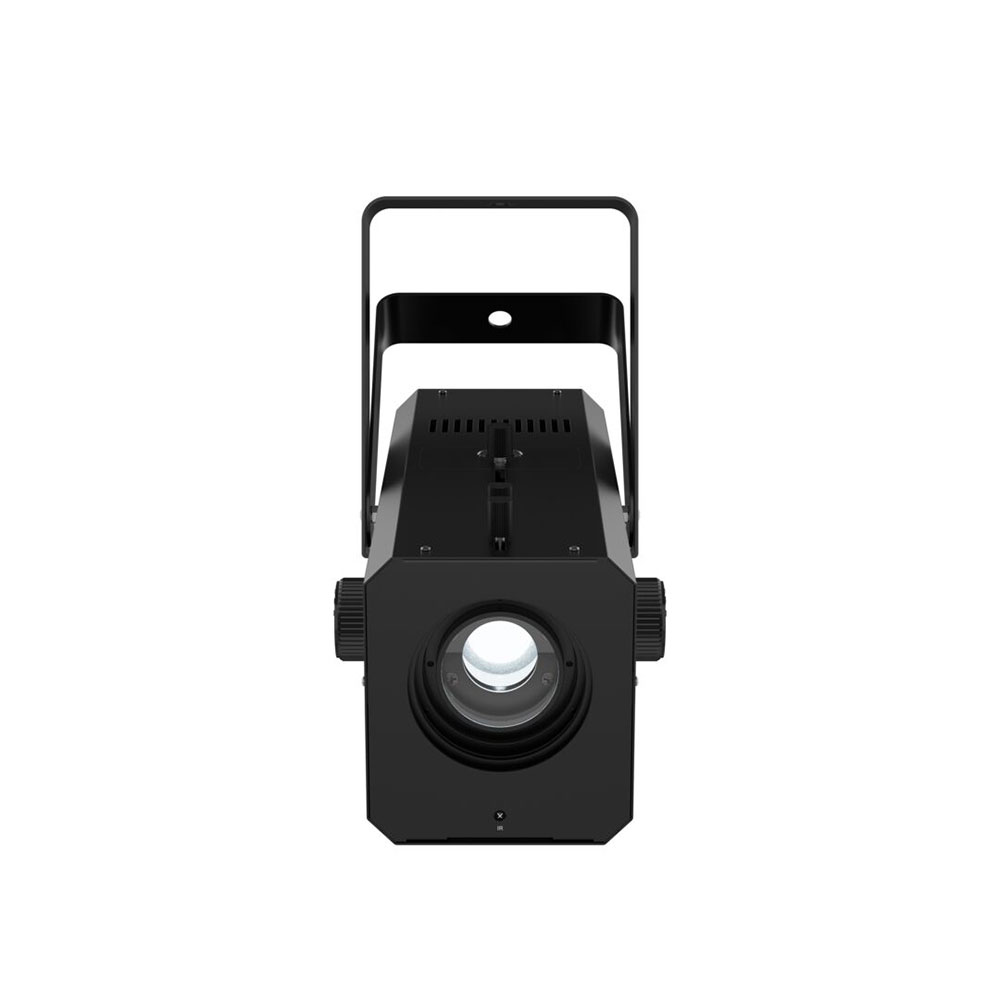

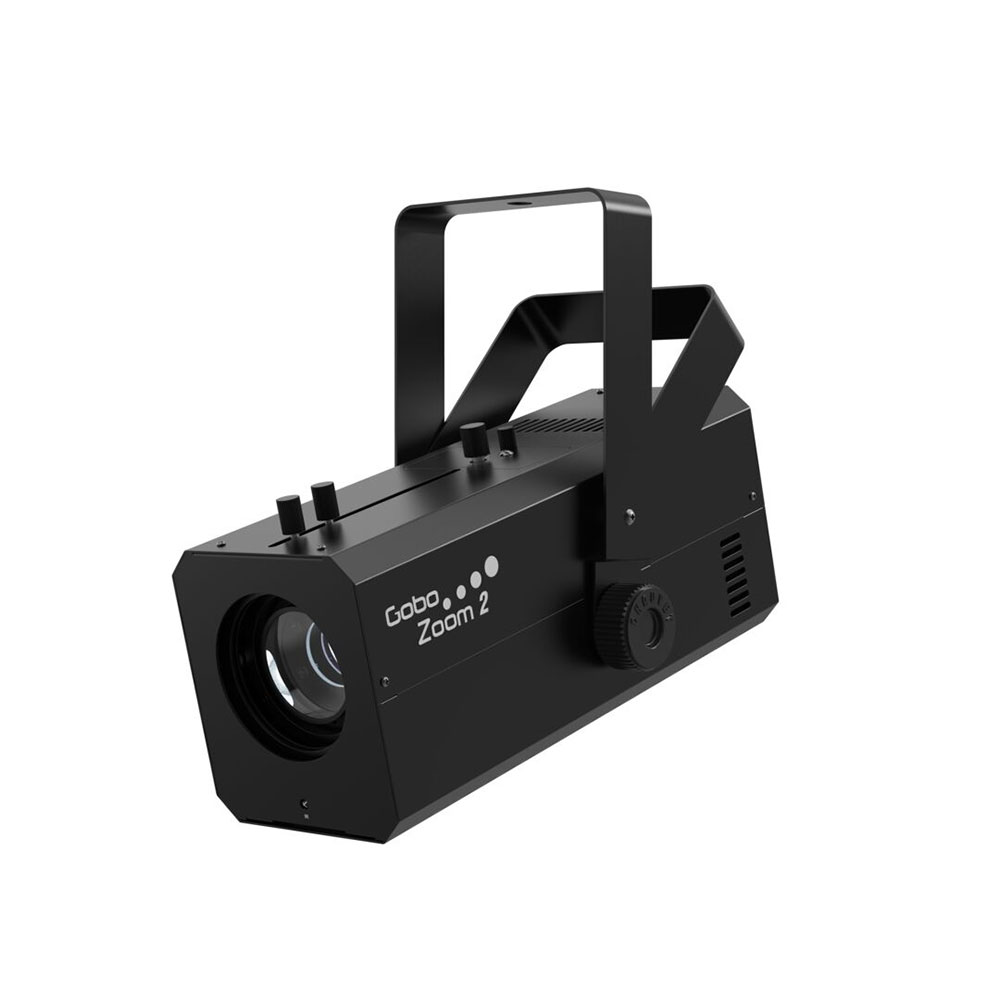

Thrill event guests with customized logos, icons and other designs with Gobo Zoom 2, a high-powered custom gobo projector with a punchy 70 W LED. Proper positioning of gobos is easy with an innovative manual rotation knob that allows fast indexing without gobo removal. Gobo Zoom 2 comes with 10 popular holiday gobos and manual zoom for short-throw or long-throw applications, making it versatile and convenient. The convenience doesn’t stop there. Most functions are accessible with an optional IRC-6 remote and set-up time can be reduced by power linking multiple units.

FEATURES:
High-powered custom gobo projector with a punchy 70 W LED
Innovative manual rotation knob allows fast indexing without gobo removal
Manual zoom for short-throw or long-throw applications

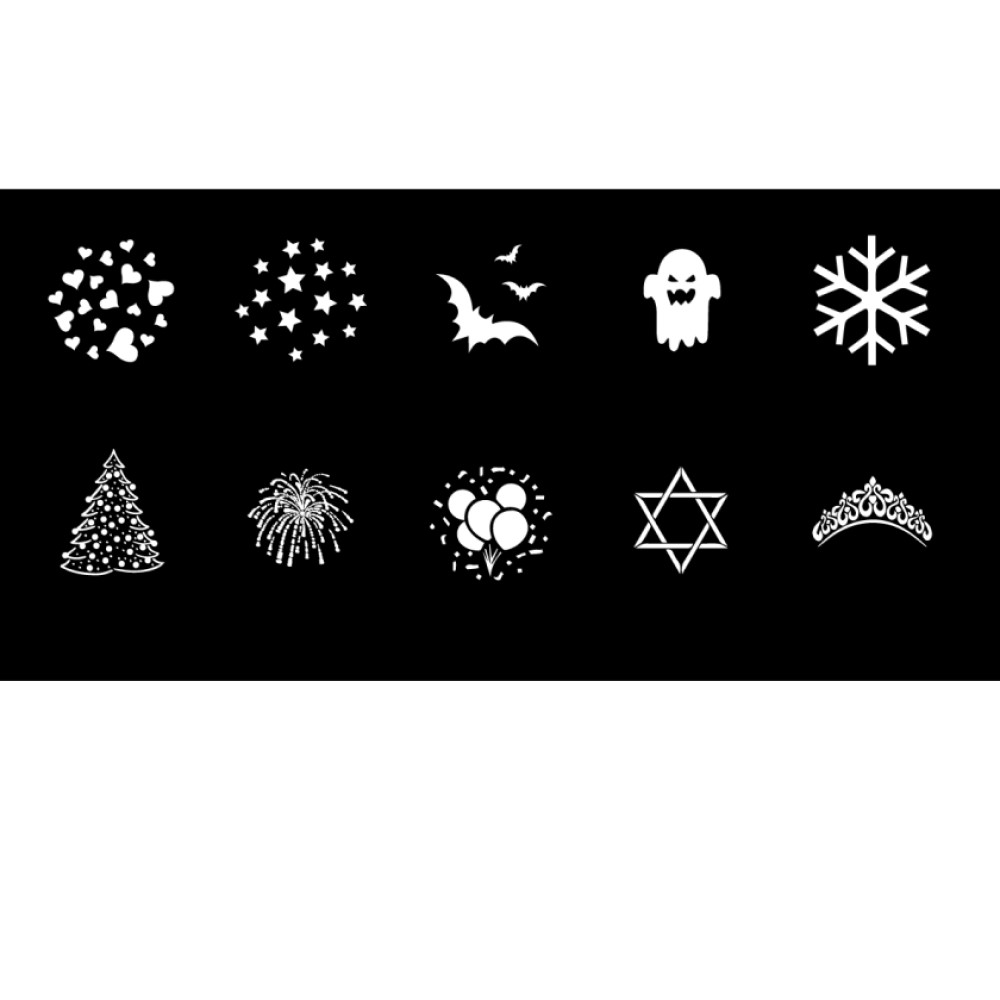

Includes 10 popular holiday gobos
Access most functions via the optional IRC-6 remote
Reduce set-up time by power linking multiple units
Fits best in the CHS-40 VIP gear bag
Includes 10 popular holiday gobos

SPECIFICATIONS:
DMX Channels: 1
DMX Connectors: 3-pin XLR
Light Source: 1 LED (cool white) 70 W, (3A), 50,000 hours life expectancy
PWM Frequency: 4000 Hz
Illuminance: (21°): 8,030 lux @ 2 m
(38°): 2,660 lux @ 2 m
Lumens: 2,894
Power Linking: 14 units @ 230 V
Input Voltage: 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:  72 W, 0.6 A @ 230 V, 50 Hz
Weight: 2.6 kg
Size: 330 x 150 x 145 mm
Gobo Size (E): 37.3 mm outside, 22 mm image, 1 mm max thickness
Zoom Angle (manual): 21° to 38°
Bracket Mounting Hole: 13 mm
Optional Controllers: IRC-6
