Description

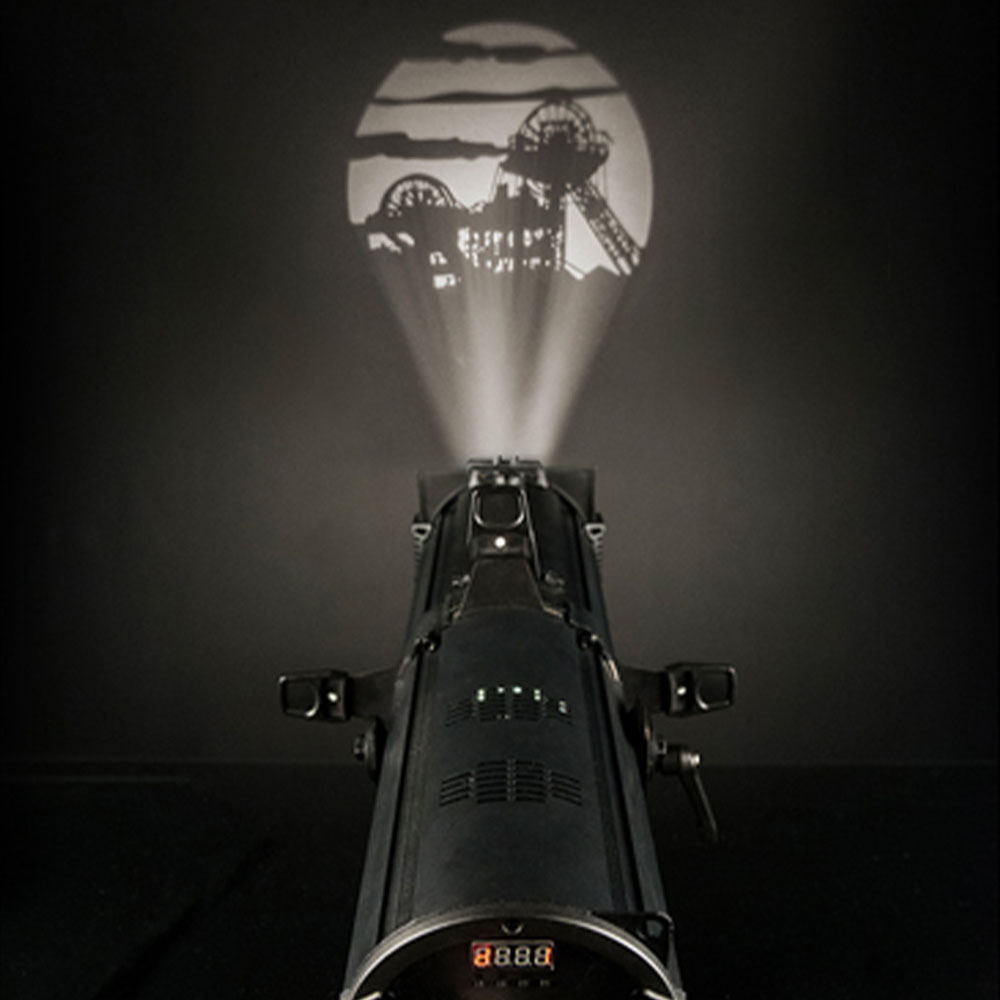

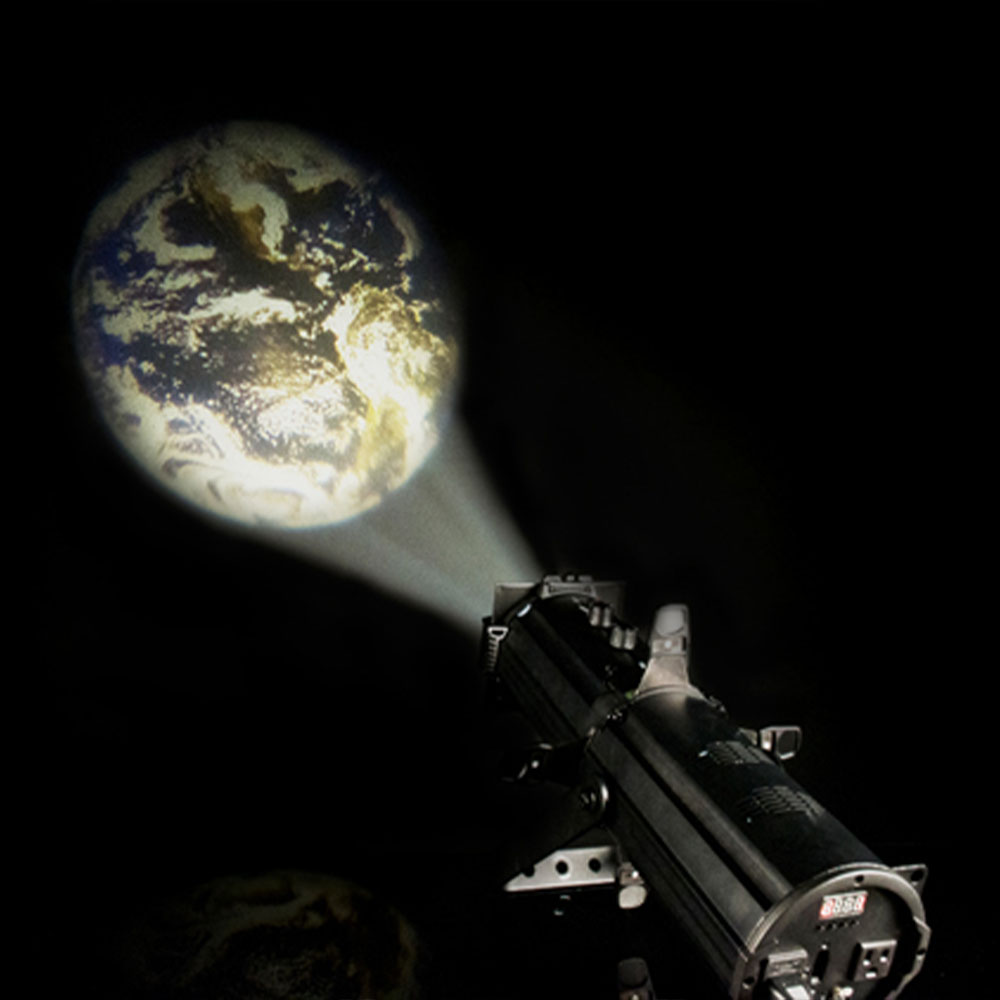

The Chauvet DJ EVE E-50z is an LED Ellipsoidal / profile spot light. Used to highlight stage areas, and project patterned gobos. Featuring a robust professional design with ultra low power consumption, and a surprising output thanks to the warm white 50W LED power source. Ideal for stage and theatre applications, as well as larger productions and lighting setups. The EVE E-50Z features ultra smooth electronic dimming, and both 3-pin DMX and wireless DMX control (via the DFi-USB connection, sold separately).

Super easy to set-up and use with manual zoom for flexibility to project from any distance. And its framing shutters let you easily alter and control the projected beam. The EVE E-50Z includes holders for glass and steel gobos as well as a gel frame. You can even operate EVE E-50Z in standalone mode eliminating the need for DMX control and you can save time running extension cords by power linking multiple units.

SPECIFICATIONS

• DMX Channels: 1 or 3

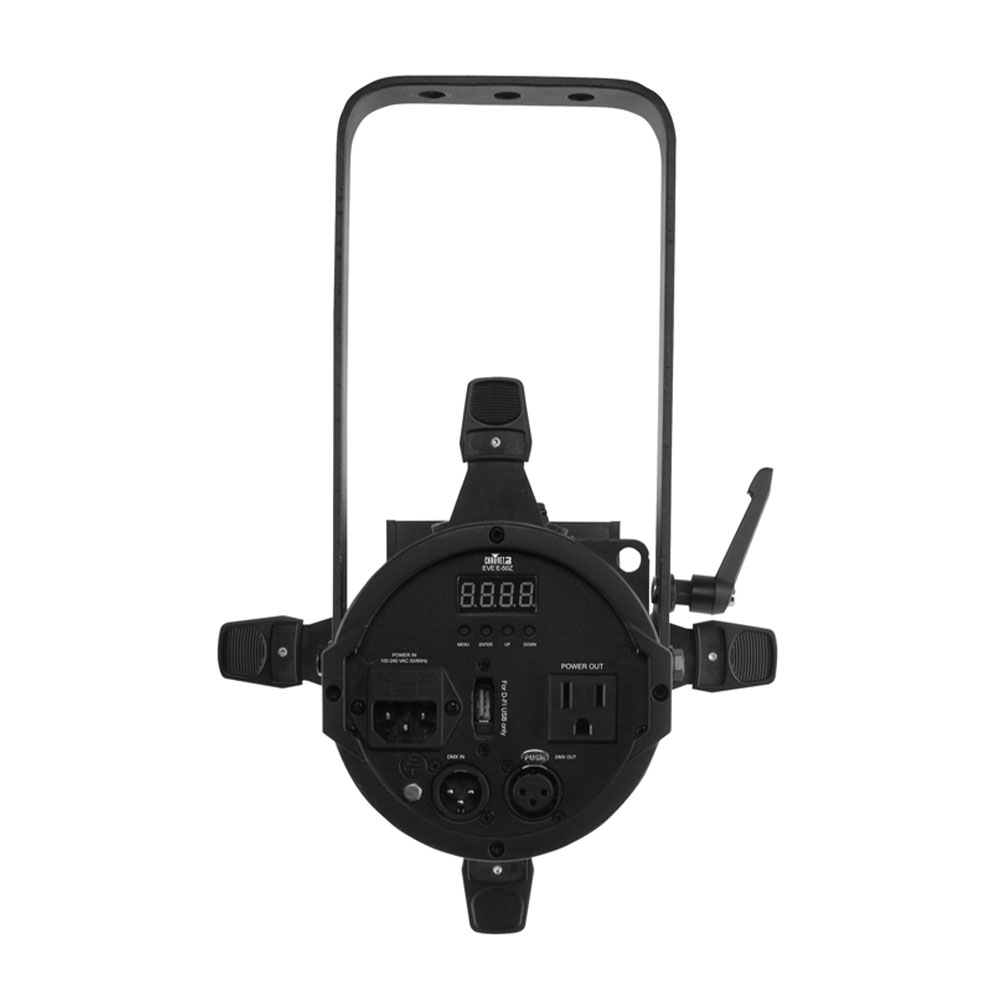

• DMX Connectors: 3-pin XLR
• Light Source: 1 LED (warm white) 50 W, (1.3 A), 50,000 hours life expectancy
• Colour Temperature: 3500 K
• Strobe Rate: 0 to 29 Hz
• PWM Frequency: 1.2 kHz|Zoom Angle: (manual): 20 to 39 degrees
• Illuminance: 20 degrees: 7,910 lux @ 2 m | 39 degrees: 2,710 lux @ 2 m
• Gobo Size: D (53.3 mm outside, 43 mm image, 2mm max thickness)
• Gel Frame Size: 5.5 in
• Power Linking: 16 units @ 120 V; 26 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 63 W, 0.3 A @ 230 V, 50 Hz
• Weight: 4.2 kg
• Size: 480 x 157 x 381 mm
• Optional Controllers: D-Fi USB
