Description

Audio-Technica’s System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters offer an easy-to-read digital ID display.

System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximise immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximise signal integrity.

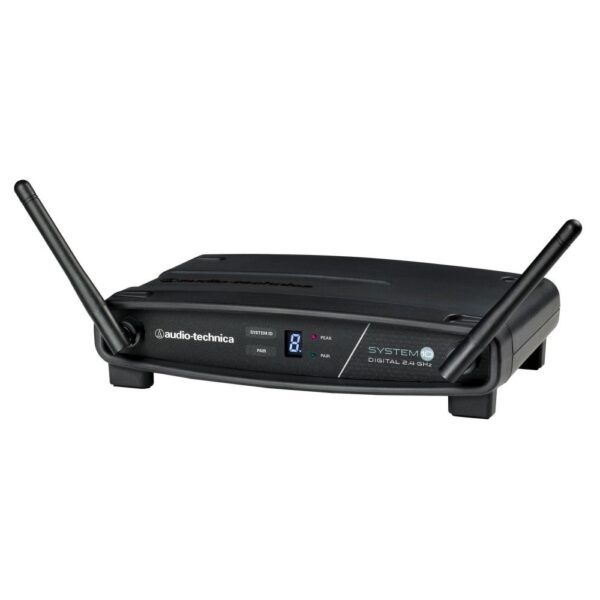

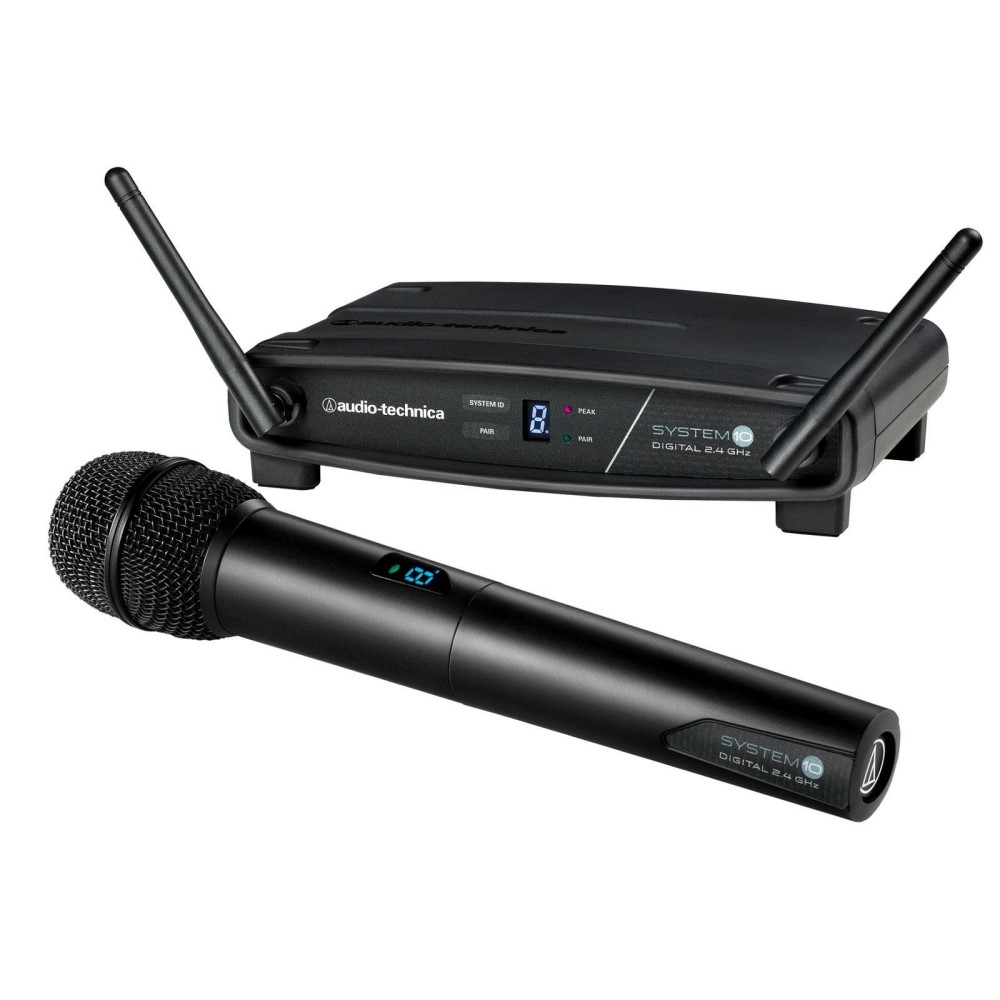

Featuring stackable, contemporary styling this System 10 configuration includes  a handheld vocal microphone transmitter and the ATW-R1100 receiver. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.

FEATURES:
Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
2.4 GHz range – completely free from TV interference
Three levels of diversity assurance: frequency, time, & space
Automatic frequency selection for seamless, interference-free operation
Extremely easy operation with instantaneous channel selection, sync, and set-up
State-of-the-art digital receiver for reliable performance
Balanced XLR and unbalanced 1/4” output jacks with level control

SYSTEM SPECIFICATIONS:
Operating Frequencies: 2.4 GHz ISM band
Dynamic Range: >109 dB (A-weighted), typical
Total Harmonic Distortion: <0.05% typical
Operating Range: 30 m (100′) typical, Open range environment with no interfering signals
Operating Temperature Range: 0° C to +40° C (32° F to 104° F), Battery performance may be reduced at very low temperatures
Frequency Response: 20 Hz to 20 kHz, Depending on microphone type

RECEIVER SPECIFICATIONS:
Receiving System: Diversity (frequency/time/space)
Maximum Output Level: XLR, balanced: 0 dB, 1/4″ (6.3 mm), unbalanced: +6 dBV
Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (centre positive) switched mode external power supply
Dimensions: 190.0 mm W x 46.2 mm H x 128.5 mm D
Net Weight: 290 grams
Accessory Included: Power supply

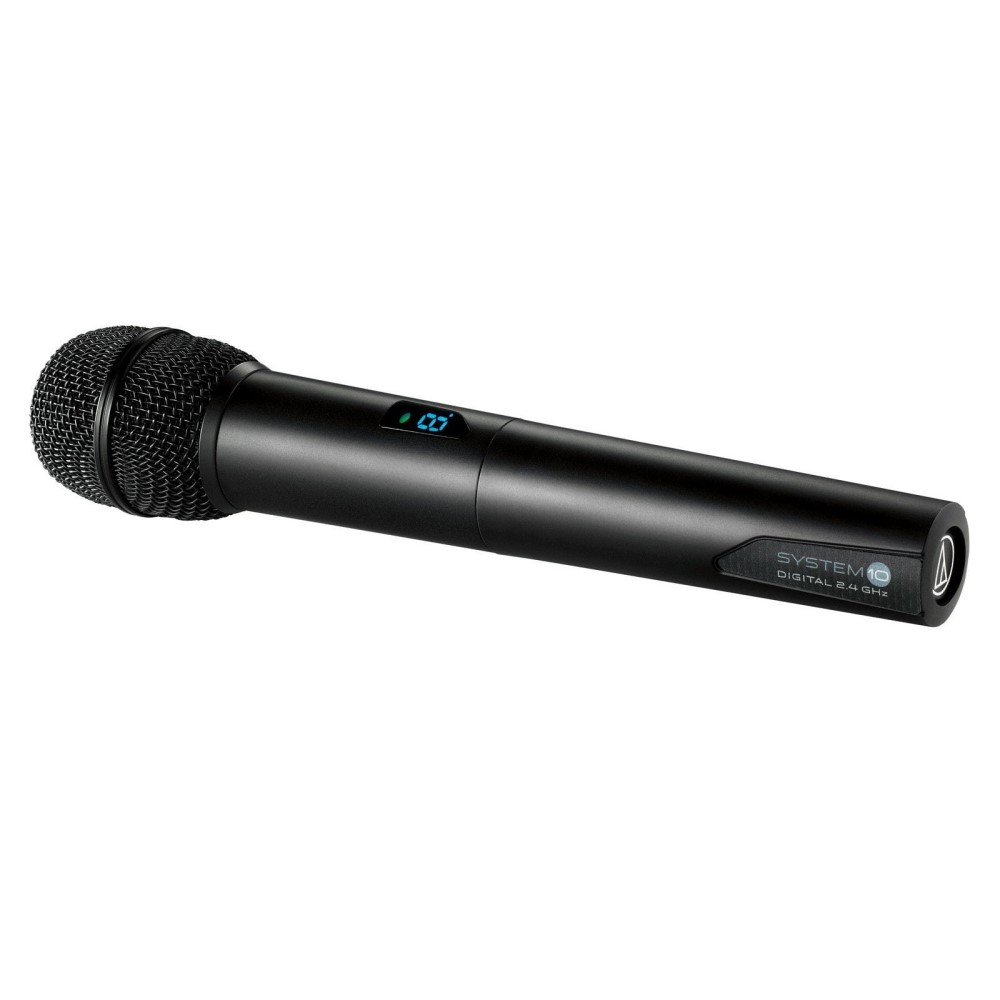

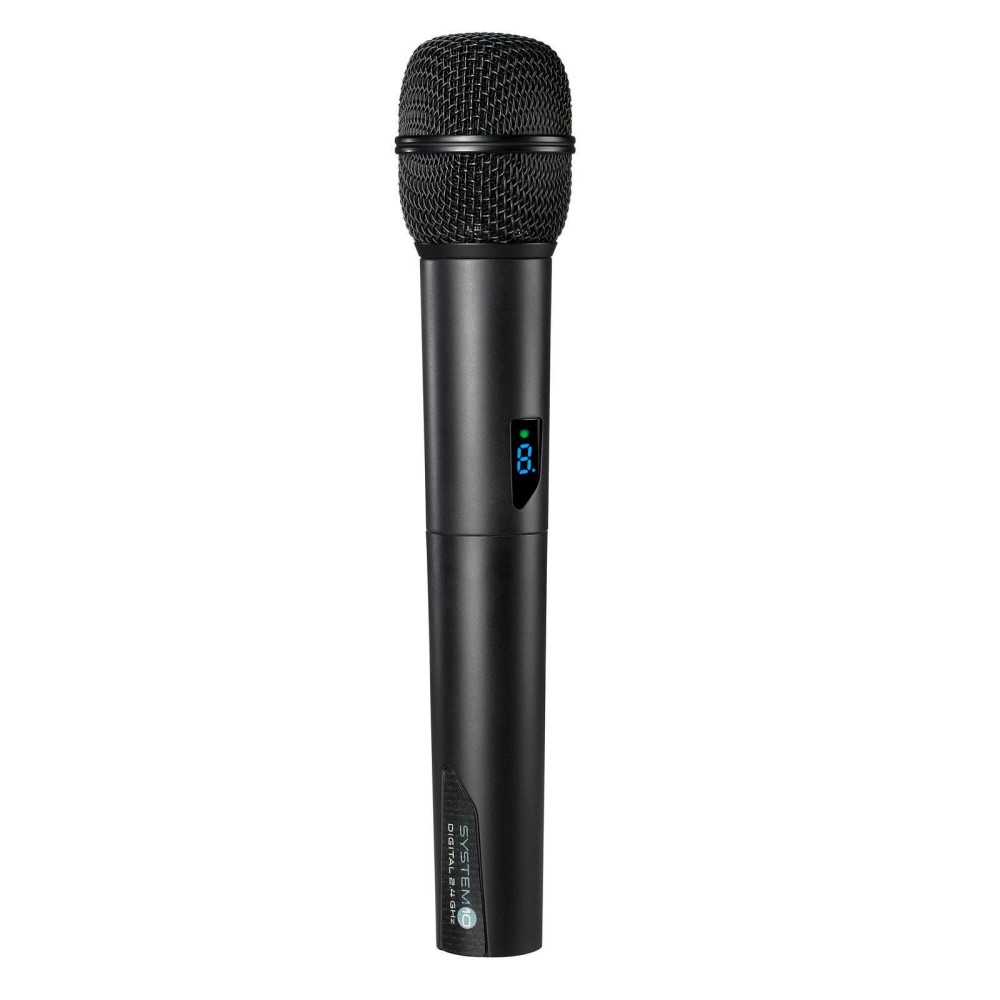

HANDHELD TRANSMITTER SPECIFICATIONS:
RF Power Output: 10 mW
Spurious Emissions: Following federal and national regulations
Batteries: Two 1.5V AA (not included)
Battery Life: >7 hours (alkaline), Depending on battery type and use pattern
Dimensions: 254.8 mm long, 50.0 mm diameter
Net Weight: 280 grams (without batteries)
Accessory Included: AT8456a Quiet-Flex™ stand clamp
