Description

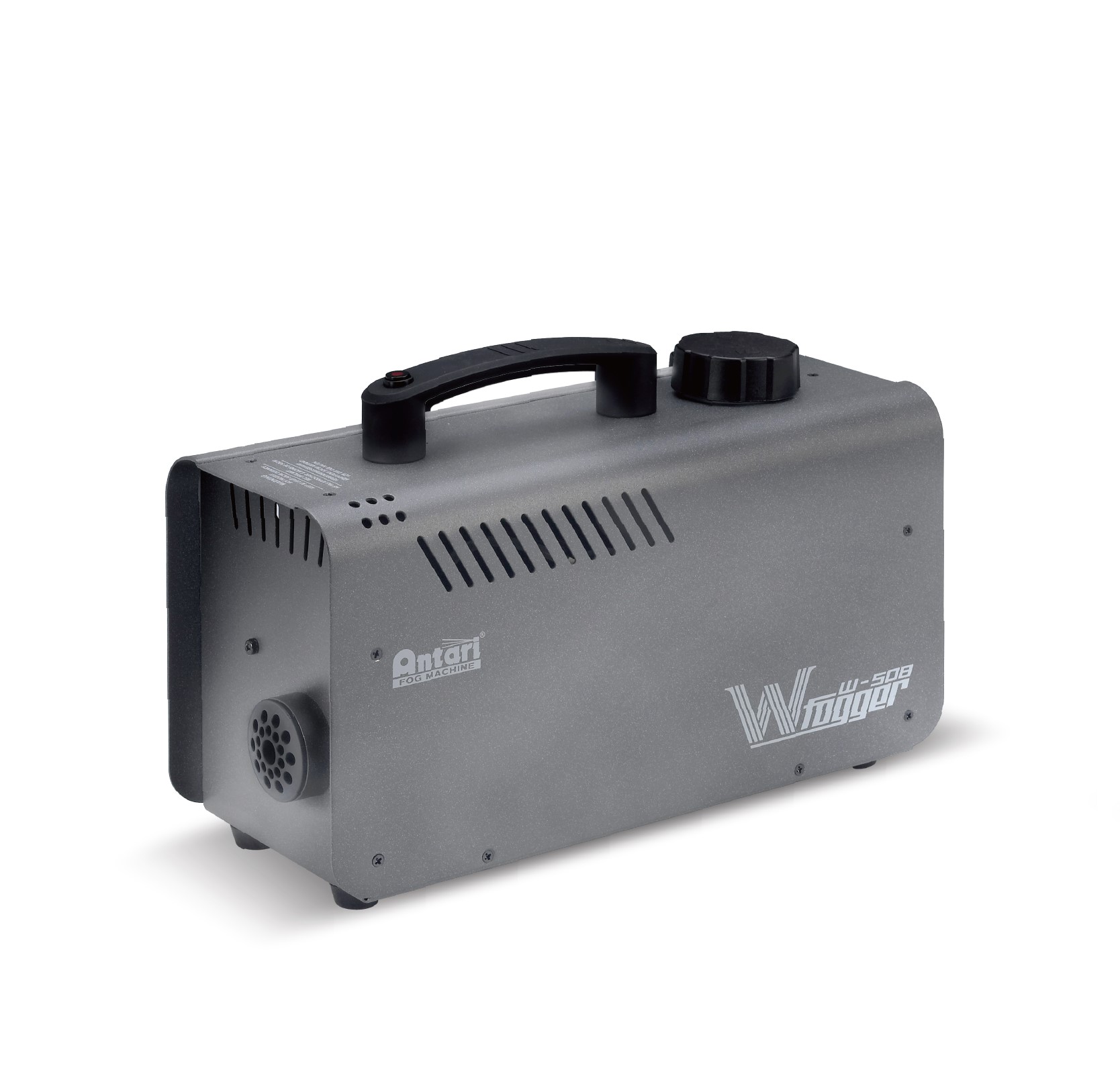

The cutting-edge wireless control system gives the Antari W series a simple settings and operation interface. Additionally, the state-of-the-art heater design improves the W Series fog machines’ quality and energy efficiency. In conclusion, the Antari W Series makes it easy for users to create a professional scene.

Features

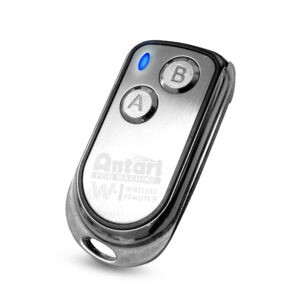

Intelligent Wireless Control System. Each machine comes with a set of wireless receiver and transmitter as standard controller. The working distance of wireless control is 50 meters in open area.

Opto-electronic Fluid Sensor. When the fluid recipient runs dry, the fluid sensor stops pumping automatically to protect pump from burning.

New, More Efficient Heat Exchanger Design which allows the Antari W series to generate fog with smaller particles, thereby reducing its fog fluid consumption. When compared to equivalent power consumption heat exchangers, the same quantity of fog fluid in W series can produce up to 20% more fog.

New Advanced PCB (Printed Circuit Board) Design The new system can control temperature precisely and rule out the influence from outside environments as much as possible to make W series fog machines be able to work stably between -20 and +60 degrees Celsius.

Specification
Voltage : AC 240V, 50Hz
Rated Power : 800W
First Heat-up Time : 2 minutes (approx.)
Fluid Consumption Rate : 13mL / min
Tank Capacity : 0.8 litre
Liquid Used : Antari FLR / FLG Liquid
Operating Time: 60 min at max output
Ambient Temp. Range: 0°C – 40°C
Output: 85 m3 /min
Control: Manual, Wireless
Weight : 3.8 Kg
Dimensions (mm) : L 315 W 128 H 218

For more information please visit the manufacturer’s website.

Download the User Manual.
