Description

The easy-to-use Stealth Wireless system from Alto Professional replaces audio cable with a reliable wireless connection.

Compatible with all active loudspeakers, as well as traditional passive speaker/amplifier setups, this expandable two-channel system delivers interference-free sound. Enjoy faster setups, quicker teardowns, and eliminate complicated or unsightly cable runs, regardless of the venue. The Stealth Wireless system quickly creates a robust, invisible connection from the output of your mixer or DJ controller to the inputs of your active loudspeakers. There’s no need to snake, secure, or hide any cabling during set up. After the show, simply disconnect the system and be on your way!  No more tedious cable coiling at the end of the night.

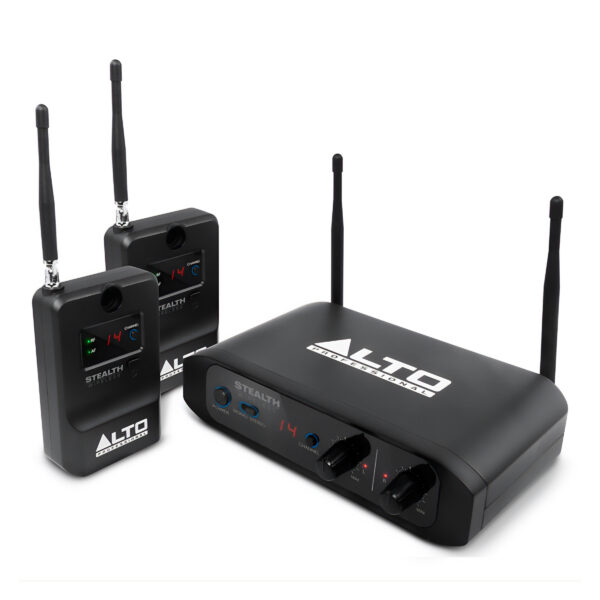

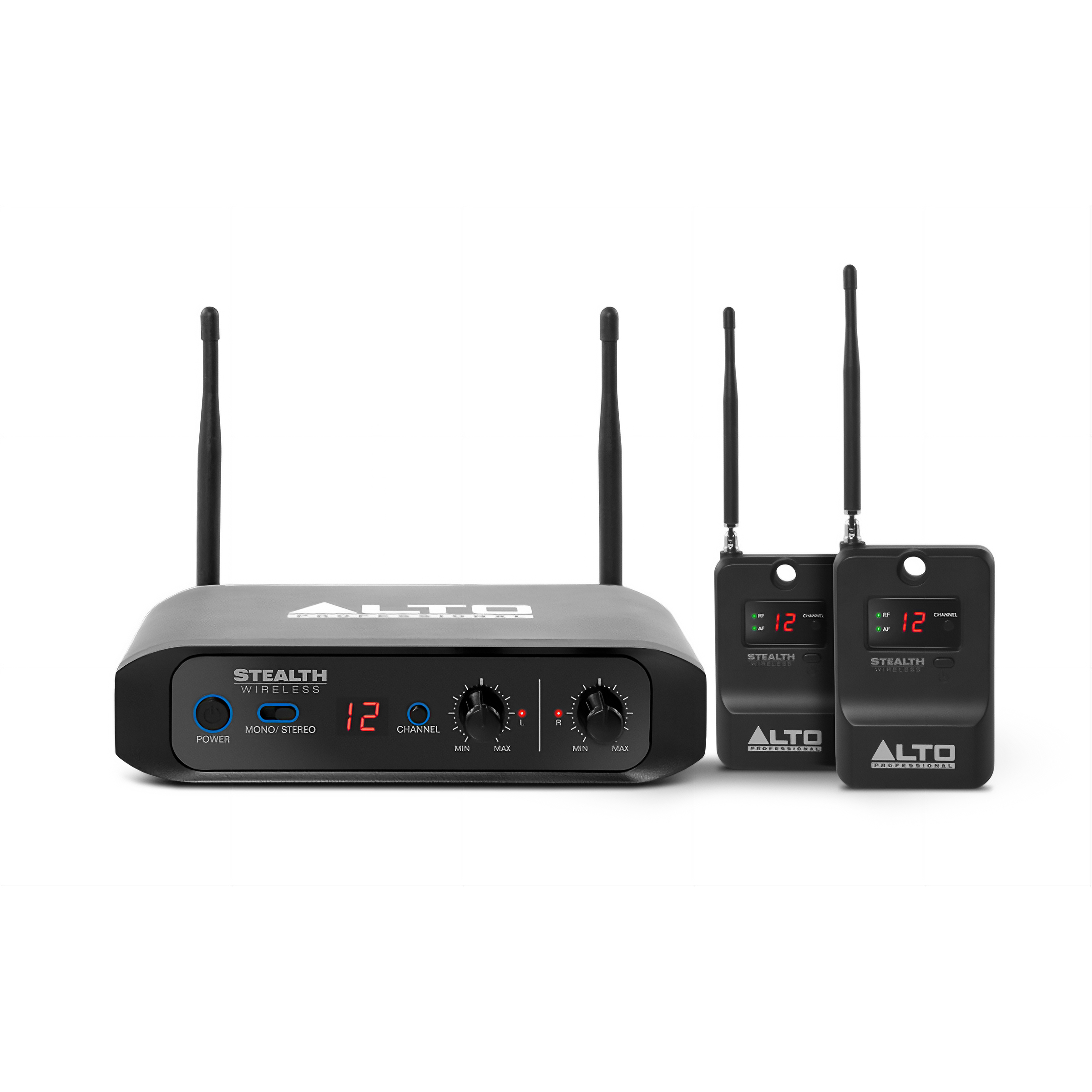

This complete, ready-to-use system contains a stereo (2-channel) transmitter, plus two single-channel receivers. The transmitter is equipped with XLR+1/4″ combo inputs to accommodate nearly any type of mixer or other audio sources. Each receiver provides a single XLR output. Two XLR cables are included. The Stealth Wireless also includes an assortment of mounting hardware, used to secure the receivers in place.

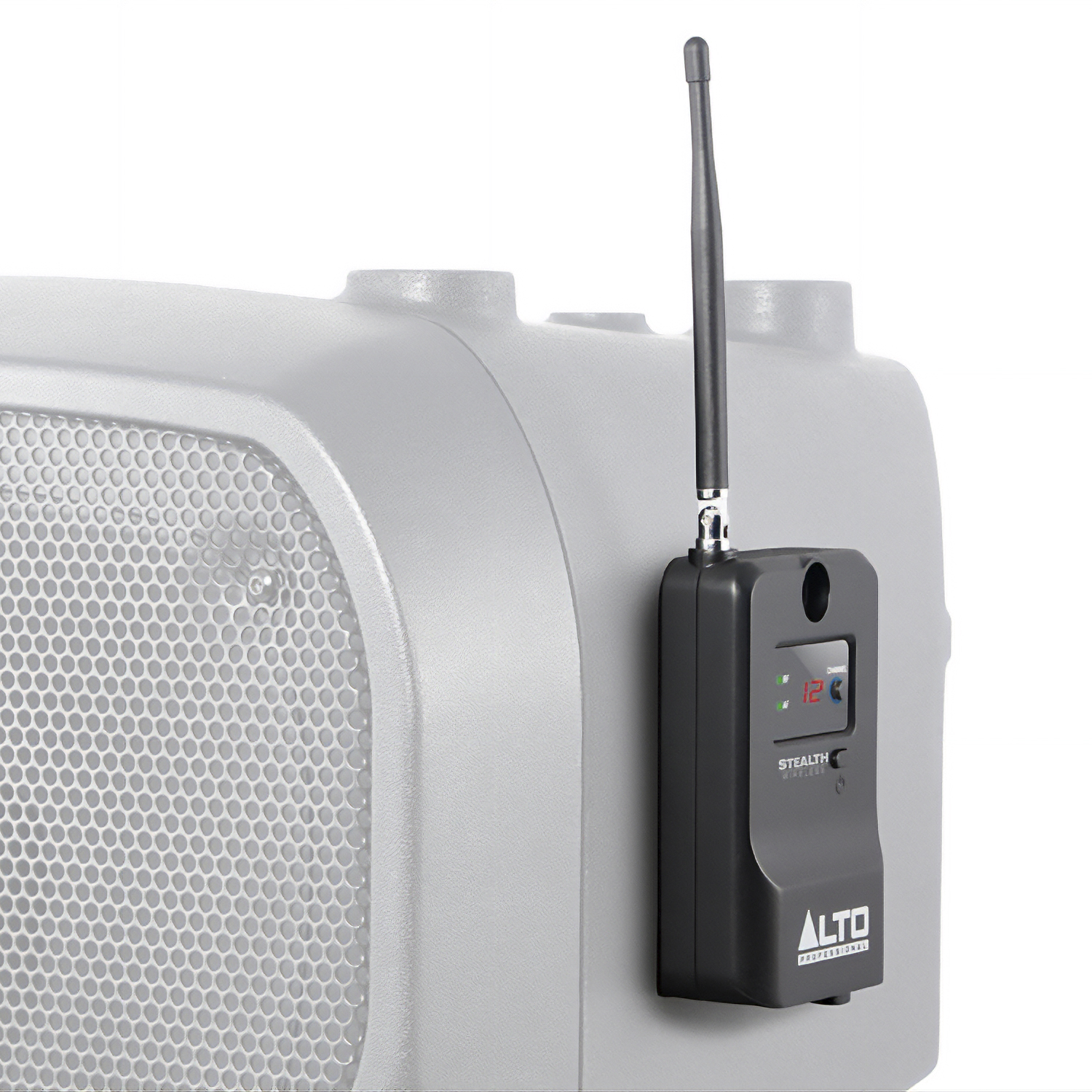

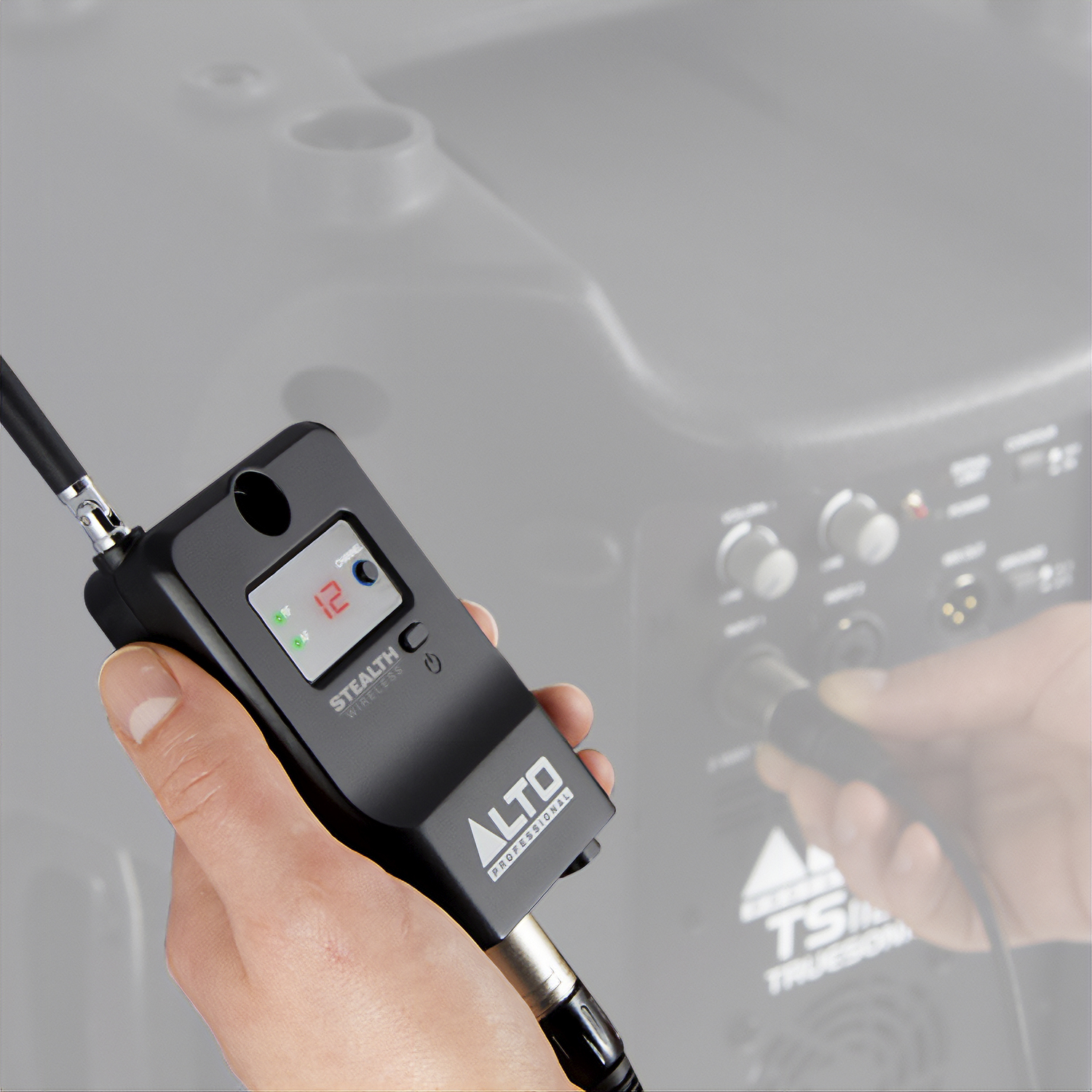

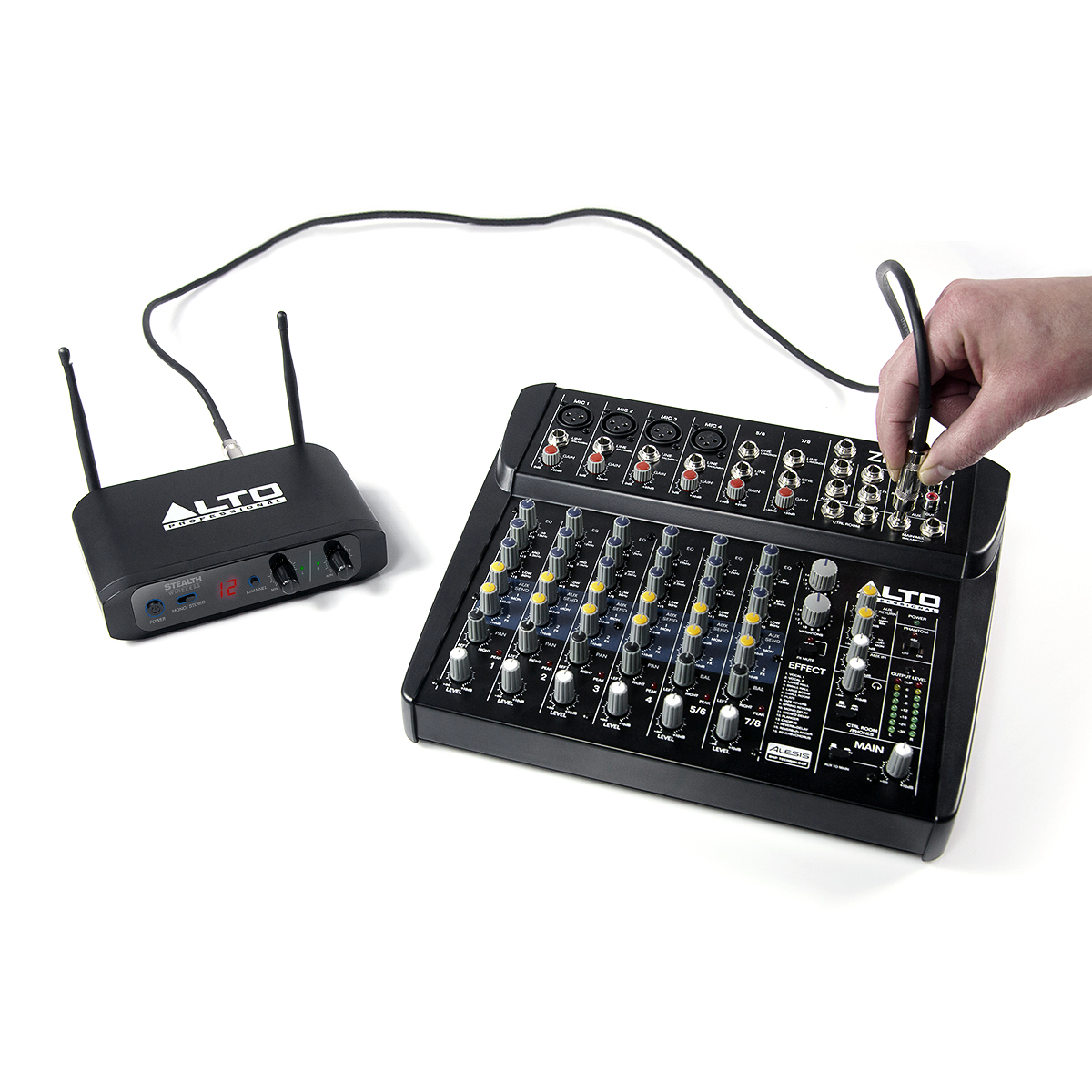

First, Connect the transmitter. Plug the main outputs of your mixer or DJ controller into the Stealth Wireless transmitter, using either the XLR or 1/4″ inputs. Next, connect the receivers. Take the XLR output on the Stealth Wireless Receiver and connect it to the input of your active loudspeaker, or to the input of your amplifier/speaker combination. Repeat this step for the second receiver.

Turn the transmitter on first, and then the receivers. It’s that easy. Select any one of the 16 reliable UHF channels to minimise interference. The squelch control can be manually set to one of three levels for optimal performance. As your needs change, you can add more receivers to your system with the Stealth Wireless Expansion Pack.

What’s in the box?
Stealth Wireless Transmitter
Stealth Wireless Receivers (x2)
Power supplies (x3)
XLR cables (x2)
M10 screws (x2)
Machine screws (x2)
Hook and loop strips (x2)
User Guide
Safety & Warranty Manual

SPECIFICATIONS:
System: Analog/Digital: Analogue
System: Frequency Range: 540-570 MHz
System: Operating Range: 200 ft.
System: Simultaneous Channels: 16
System: Frequency Response: 50Hz-17kHz
System: Channel Selection: Manual
Transmitter: Form Factor: Table Top

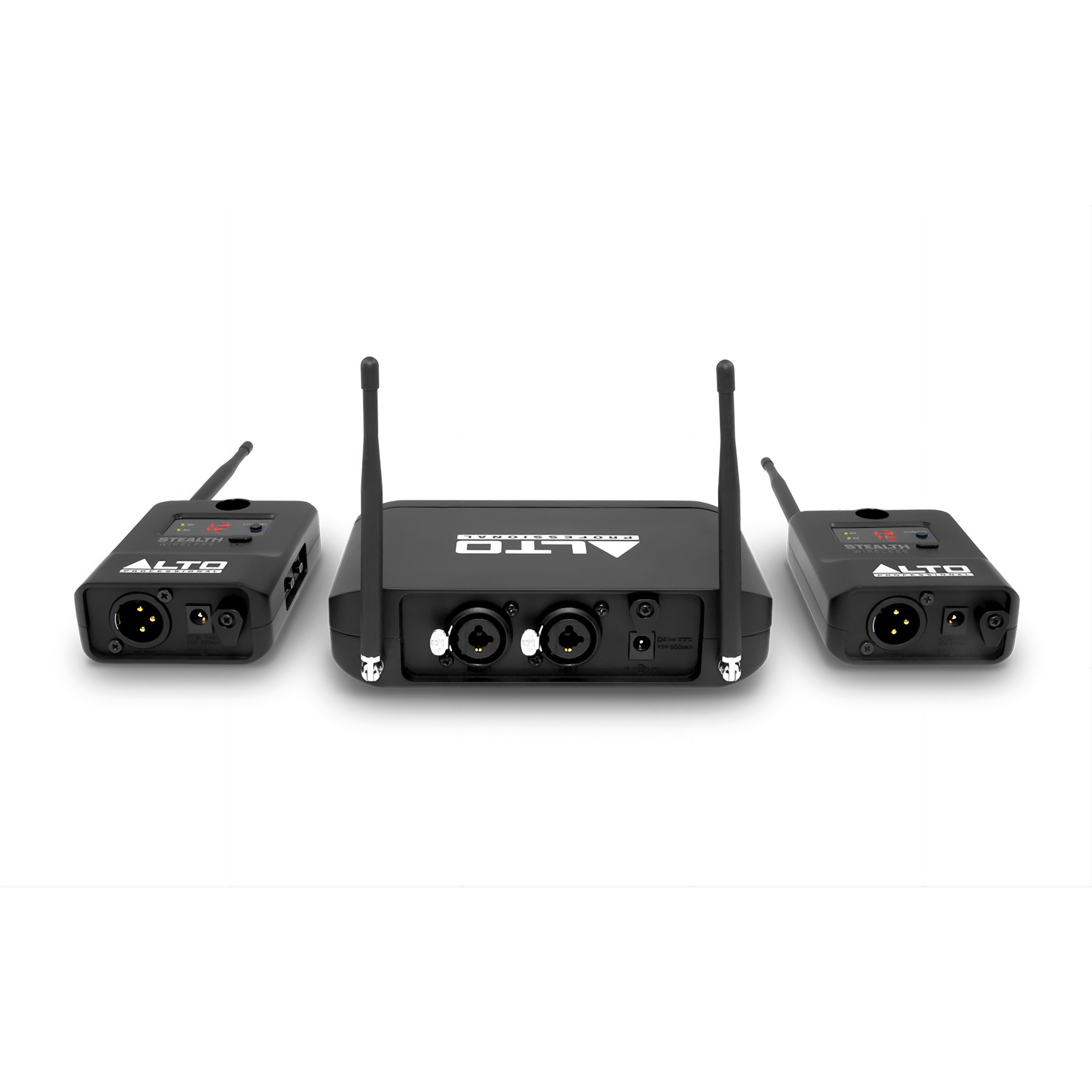

Transmitter: Connector:2 x XLR-1/4″ combo
Transmitter: Power Source: 12V DC power supply (included)
Receiver: Antenna Type: Fixed
Receiver: Signal/Noise Ratio:>100dB (A-weighted)
Receiver: Type: Portable, Speaker Mounted
Receiver: Front Panel Display: Yes
Receiver: Displays: LED
Receiver: Outputs: 1 x XLR
Receiver: Power Source: 12V DC power supply (two included)
